Disintegration Tester FM-DGT-A101

Name: Disintegration Tester FM-DGT-A101
Brand: Fison
SKU: FM-DGT-A101
Rating: 4.5 (260 reviews)

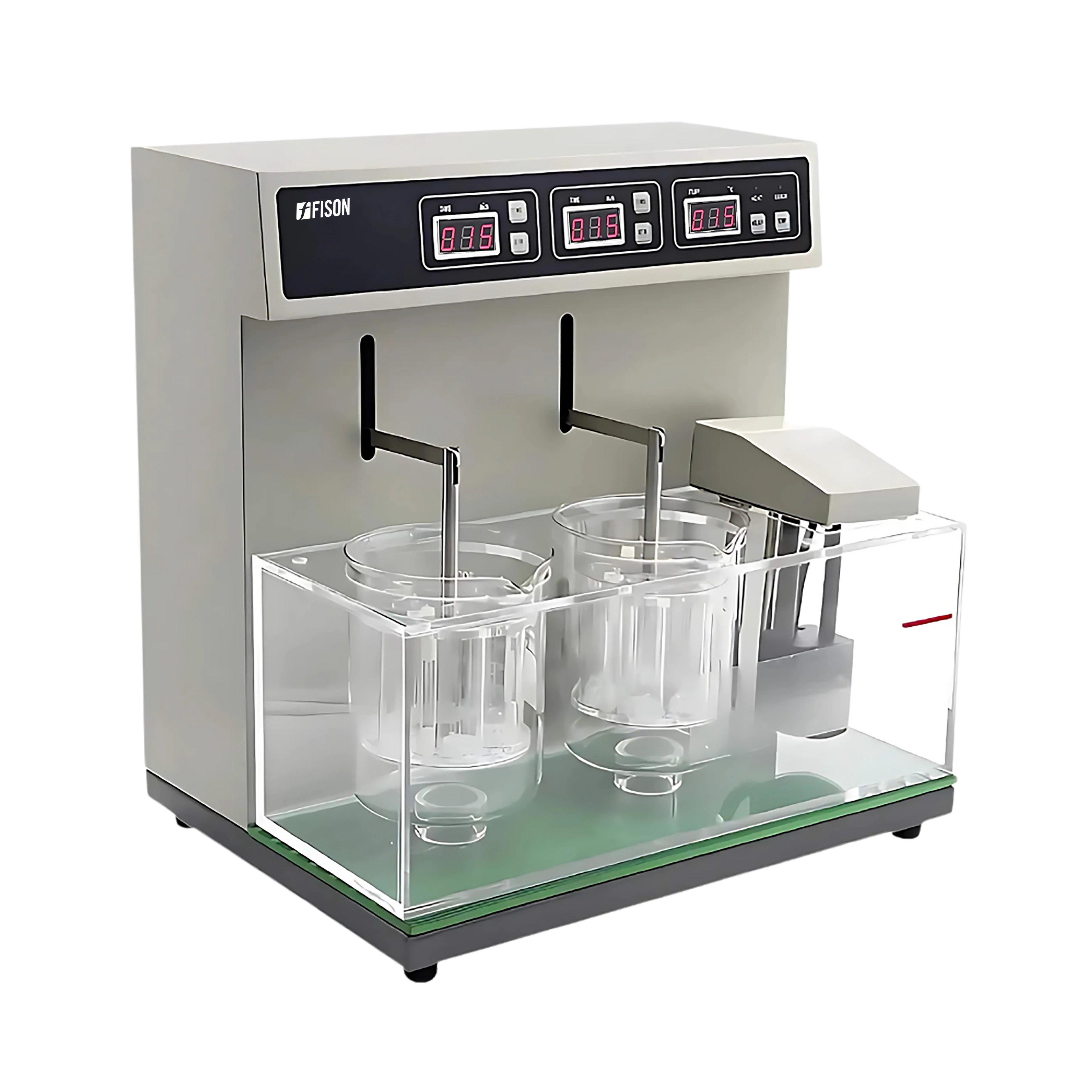

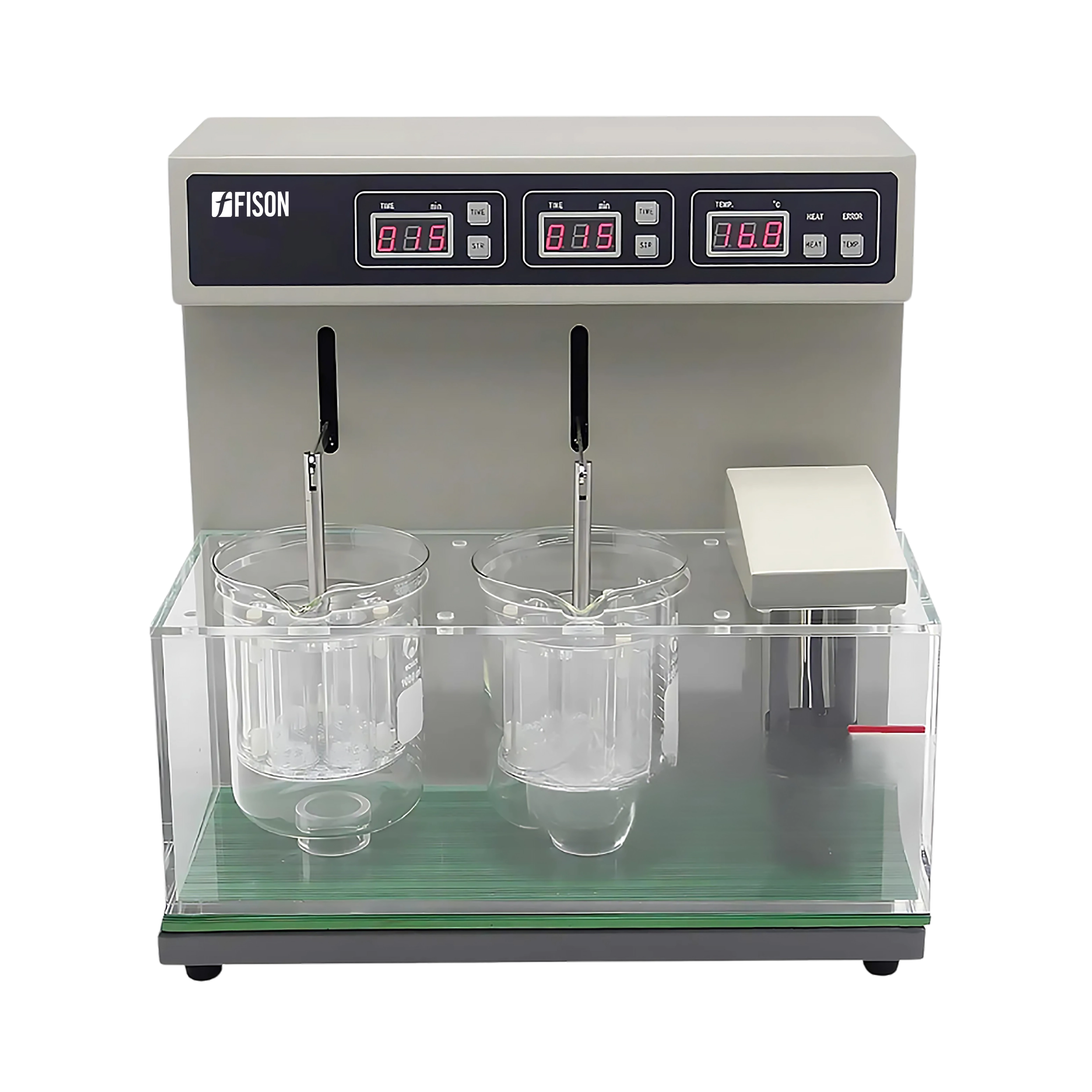

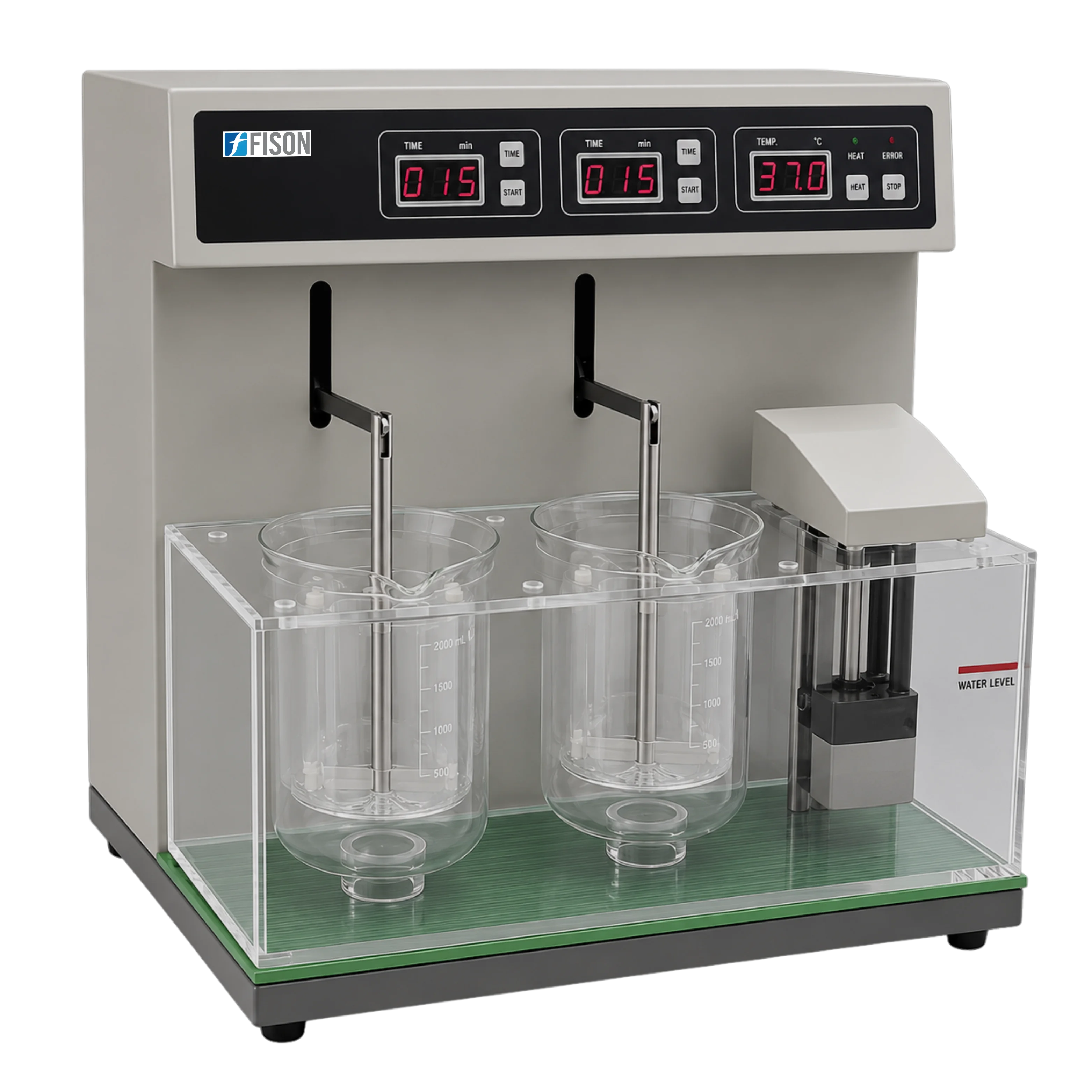

Disintegration Tester FM-DGT-A101 is a microprocessor controlled unit consisting two batches of six tubes in two basket assembly with a temperature range of ambient to 45ºC and automatic time range of 1 to 900 min. It is equipped with a cabinet, control system, electrical system, water bath system, transmission system and sensor. Also features 55 mm basket lifting amplitude, 30 to 32 times per minute nacelle back and forth frequency and 1000 ml flat bottomed beaker capacity. The unit has auto testing, auto diagnose and auto alarm system with LED screen to display preset and real data alternately in time.

Catalog Buy Now

✔ Two batches of six tubes in two basket assembly
✔ Each test station is driven independently
✔ Auto stop at timing point
✔ Bath liquid achieves an even temperature
✔ Microprocessor unit is used to automatically control the temperature, time and frequency of nacelle back and forth
✔ Time parameters can be preset at any time
✔ Preset and real time data can be displayed alternately in time
✔ High automation with auto test, auto diagnose and auto alarm

Basket assembly	2 Pc
Quantity of Basket glass tube	12
Flat bottom beaker volume	1000 ml
Temperature range	Ambient to +45.0ºC
Temperature accuracy	37 ± 0.5ºC
Nacelle back and forth frequency	30 to 32 times / min
Nacelle back and forth range	54 to 56 min
Automatic time range	1 to 900 min
Basket lifting amplitude	55 ± 1 mm
Screen to cup bottom	25 ± 2 mm
Screen aperture	0.425 or 0.71 or 1 or 2 mm
Continuous working time	> 24 hour
Power	600 W
Voltage	AC 220V, 50Hz or AC 110V, 60 Hz
Dimension (W × D × H)	400 × 300 × 420 mm
Packaging dimension (W × D × H)	500 × 390 × 500 mm
Net weight	16 kg
Gross weight	18 kg

Used in the hospitals, medical colleges, research laboratories, pharmaceutical, pesticides and other industries for detecting disintegration of tablet and capsule (solids) in prescriptive conditions.
