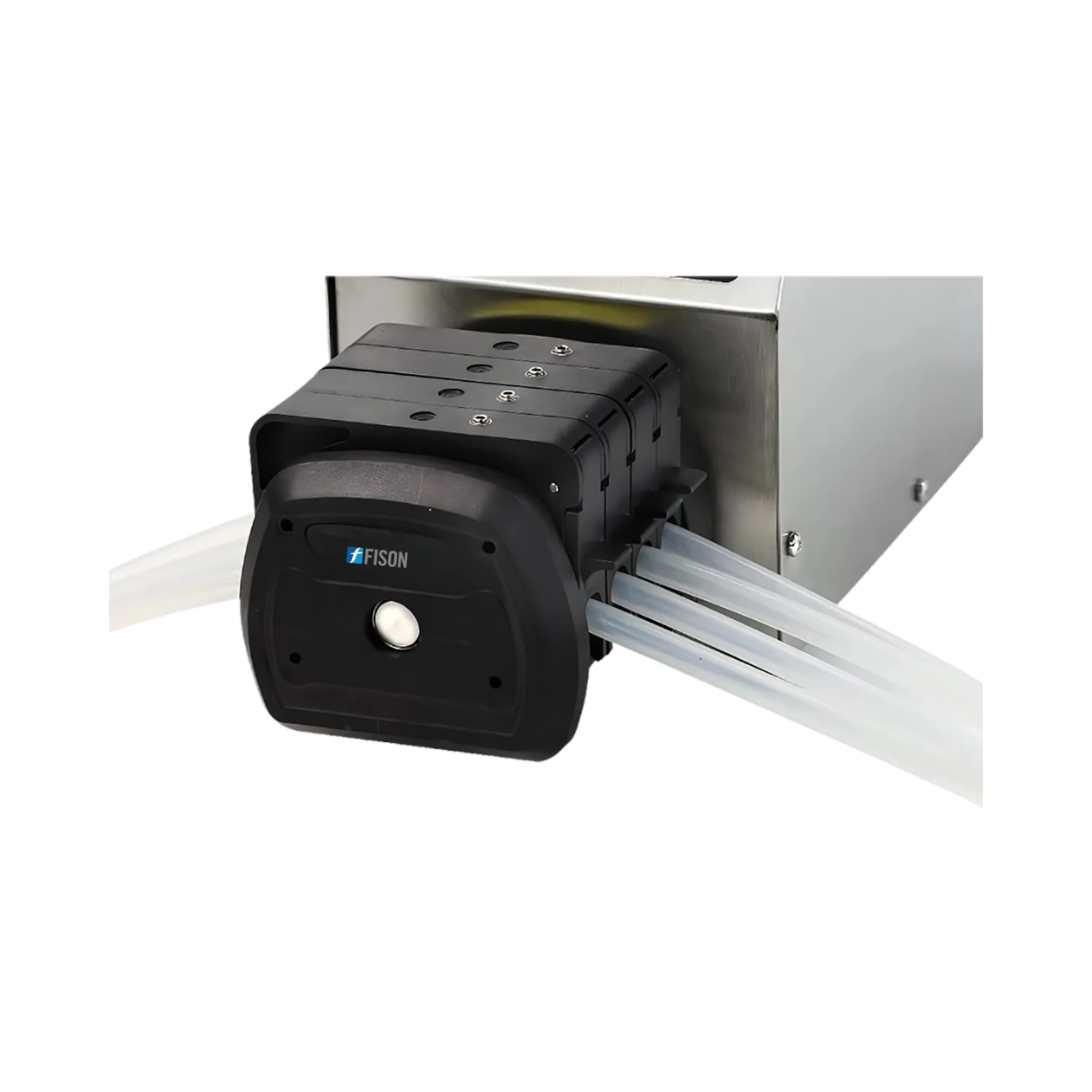

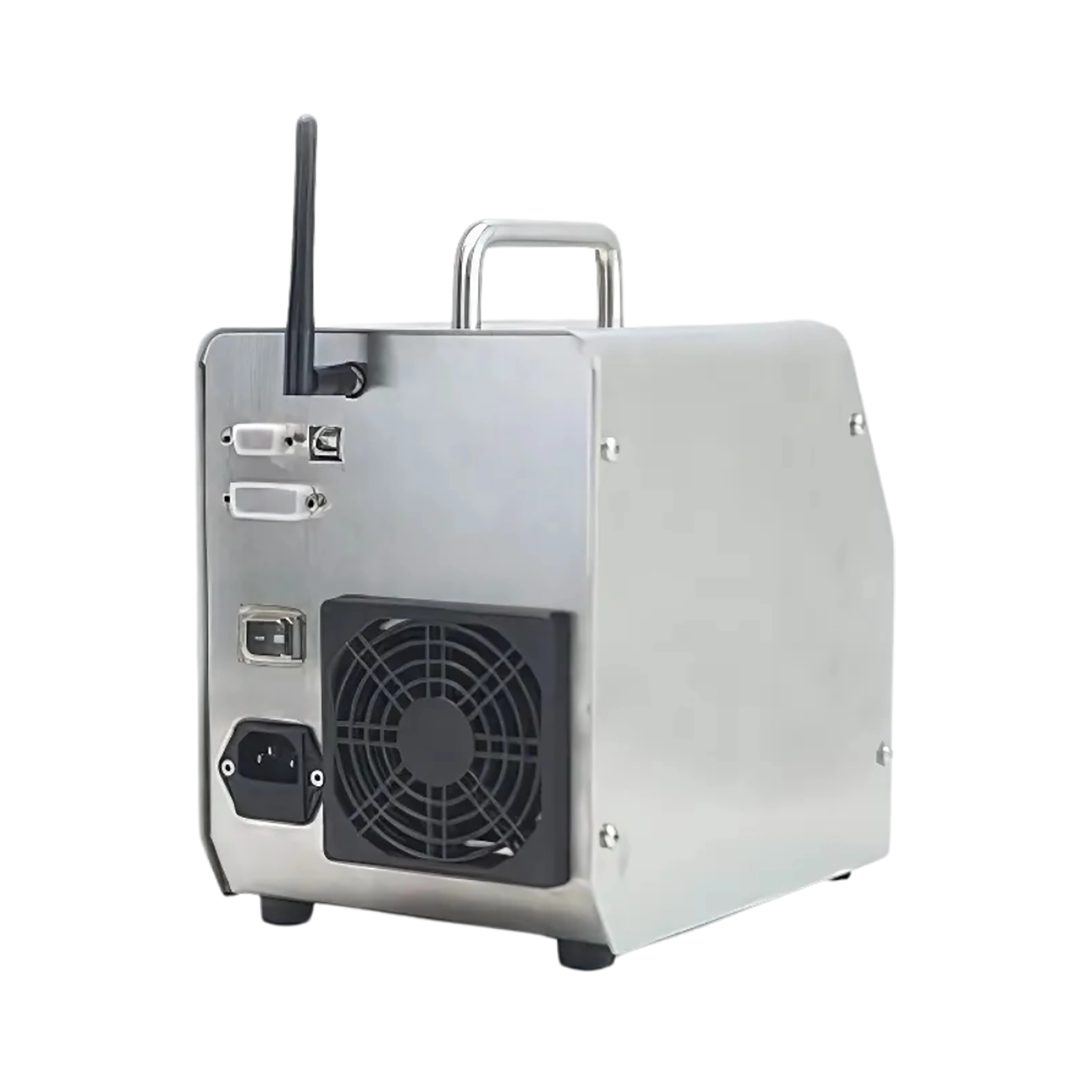

Digital Peristaltic Pump FM-DPP-B100
Digital Peristaltic Pump FM-DPP-B100 offers a versatile flow range from 0.004 to 3850 mL/min, making it ideal for a wide range of precision fluid transfer applications. This provides real-time feedback on start/stop, direction, and speed for enhanced process control. It features built-in timing and cycle control for automated, precise flow processes. Our Digital Peristaltic Pump uses double-deck isolation to protect circuits and extend its lifespan.
Specifications
| Flow Range | 0.004 to 3850 mL/min |
| Speed Range | 0.1 to 350rpm |
| Speed Resolution | 0.1rpm (speed≤100rpm),1rpm (speed＞100rpm) |
| Speed Accuracy | < 0.5% |
| Temperature | 0 to 40℃ |
| Relative Humidity | <80% |
| Communication Interface | RS485 communication interface, MODBUS protocol is available |
| External Control | External control analog 0 to 5V，0 to 10V，4 to 20mA External control start and stop， External control input level 5V,12V,24V |
| Power Consumption | <150 W |
| Power Supply | AC 180 to 264V, 50Hz/60Hz |
| Dimensions (W×D×H) | 526.1×179×229.5 mm |
| Net Weight | 10 kg |
| Gross Weight | 13 kg |
Features
- Multi-signal compatibility
- Temperature and humidity tolerance
- Advanced software system
- Versatile pump head design
- Equipped with thermal printer support
Applications
- Digital Peristaltic Pump FM-DPP-B100 is ideal for precise fluid handling in the pharmaceuticals, biotechnology, and chemical processing industries. It suits laboratory, manufacturing, and research applications.
Accessories
- Pump head (4 Chanel)
