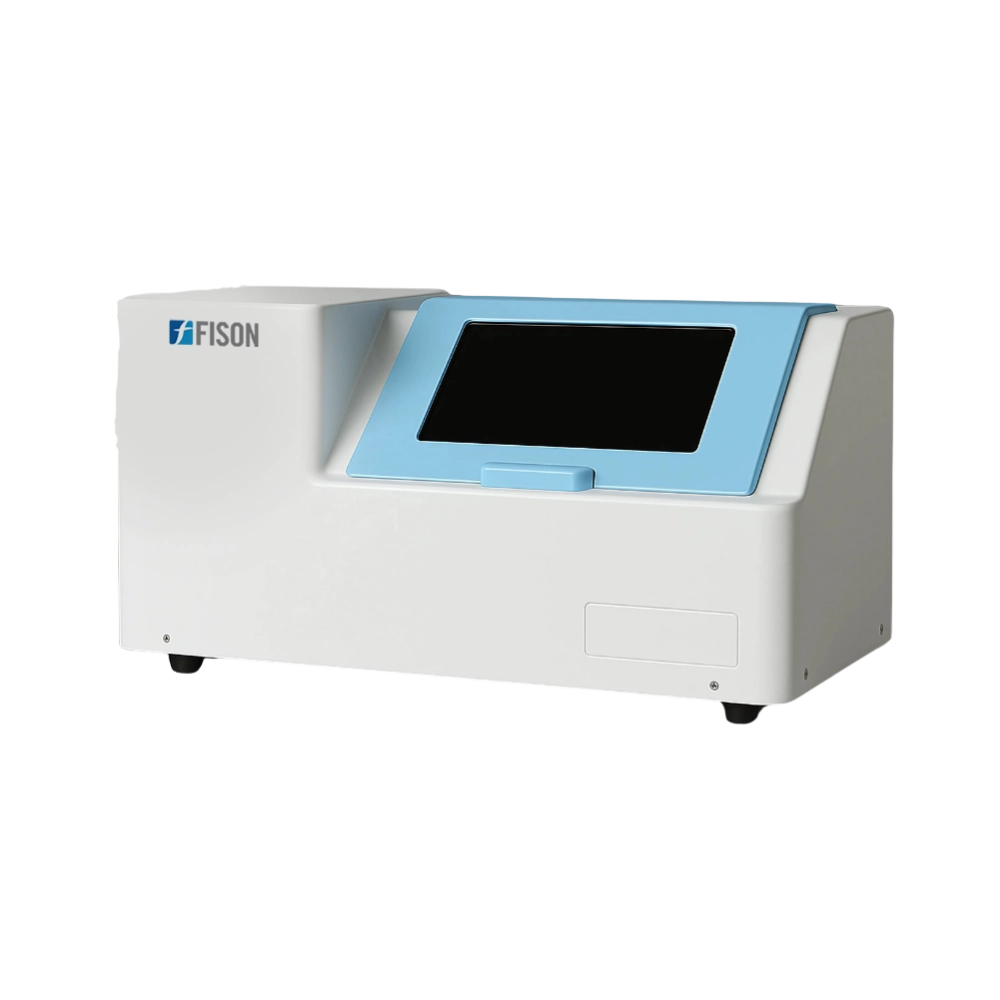

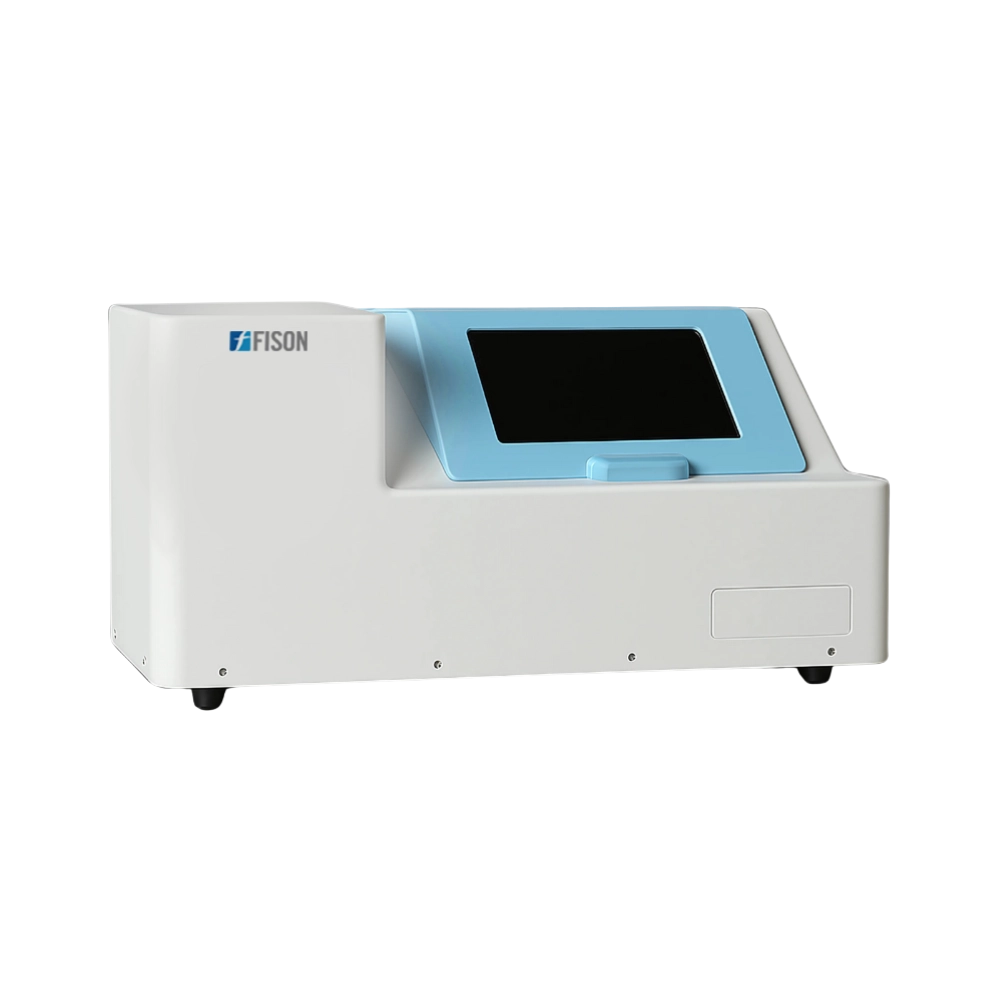

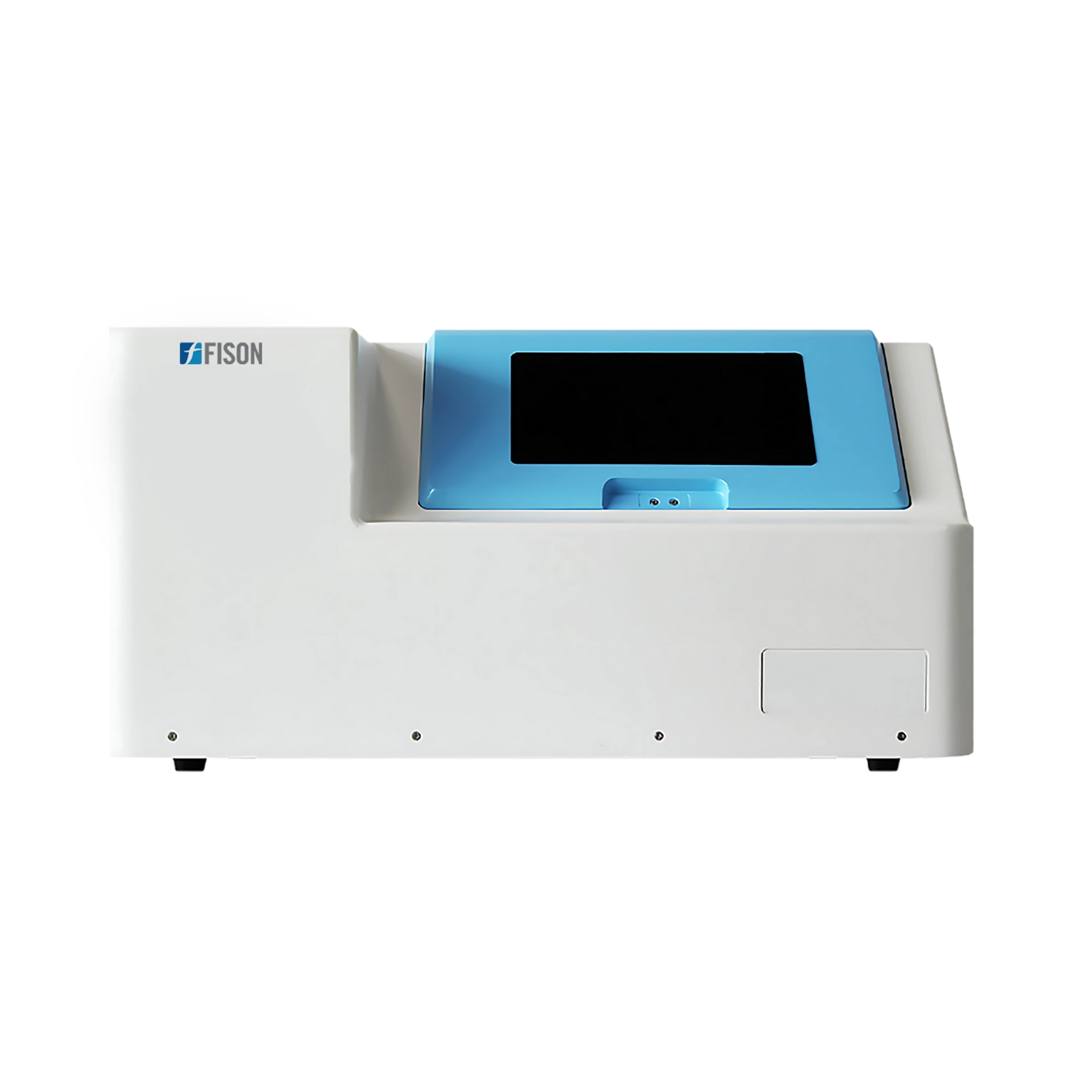

Digital Pathological Slide Scanner FM-DSS-A100
Digital Pathological Slide Scanner FM-DSS-A100 is designed for advanced imaging of pathological slides. It can handle up to 6 slides simultaneously, which ensures efficient high-volume scanning. Each slide is processed in less than 180 seconds, guaranteeing quick turnaround. The scanner boasts automated scanning capabilities and utilizes an LED light source for optimal efficiency.
Specifications
| Sample capacity | 6 slides |
| Image resolution | 3200 × 2200 1-inch global shutter camera |
| Frame rate | ≥75 f/s |
| Magnification level | 20 X |
| Numerical Aperture | 0.75 |
| XY stage resolution | 5 µm |
| Z autofocus resolution | 0.25 µm |
| Scanning image resolution | ≤ 0.25 µm/pixel |
| Light source | LED |
| Life span of light source | >20000 hours |
| Sample scan time | Within 180 s |
| Data Management | Local or network |
| Specifications of embedded PC | NVIDIA professional graphics card, PC I0s like keyboard, USB 3.0 |
| Supported Image formats | JPEG or BMP |
| Dimensions | 698 × 464 × 345 mm |
| Packing dimensions | 800 × 550 × 550 mm |
| Net weight | 35 Kg |
| Gross weight | 75 Kg |
Features
- Digital Pathological Slide Scanner with high reproducibility
- Ease of use
- One-click scanning process with pause/stop function
- Embedded PC with advanced graphics capability
- Ensures high-quality image output
Applications
- Digital Pathological Slide Scanner is utilized across various sectors including healthcare, research institutions, pharmaceuticals, and academic settings
