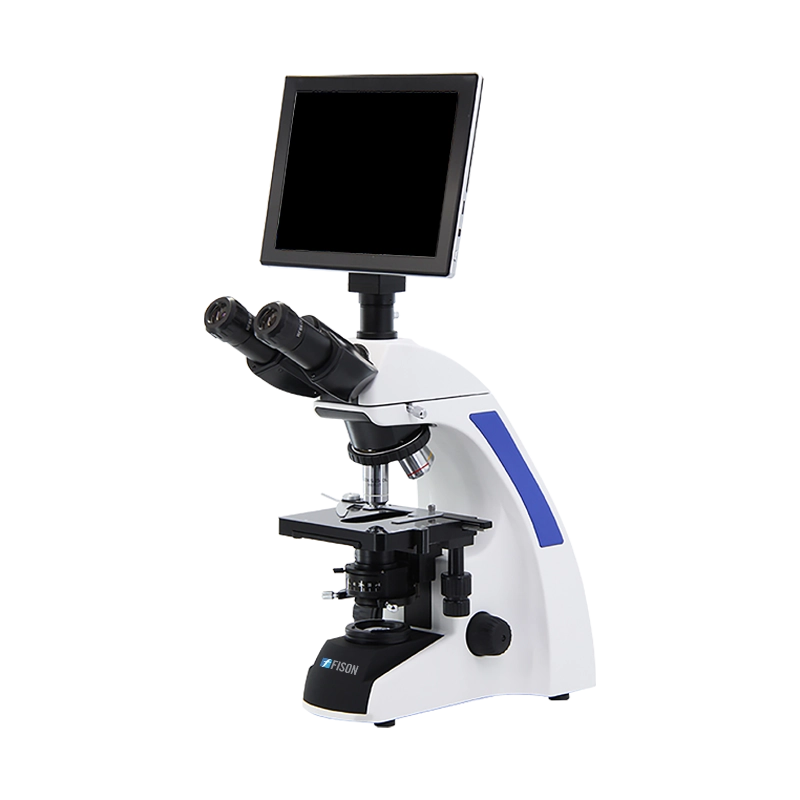

Digital Microscope FM-DM-B101 is an advanced and achromatic optical system comprised digital microscope, offers standard magnification of 40X to 1000X with high contrast chromatic free 4X, 10X, 40X(S), and 100X (Oil, S) objectives. Features trinocular head inclined at 30°, quadruple nosepiece, WF 10X/20 mm eyepiece with adjustable diopter and coaxial coarse & fine focusing with 24 mm focusing range. Equipped with 9.7-inch LCD display having 5.0 MP digital camera with C-mount adapter, HDMI and TF Card output, touch screen USB mouse control, and installed measure software, this digital microscope has graphite surfaced double layer mechanical stage. Designed offers external 3W kohler illumination, abbe condenser with iris diaphragm, and adjustable center.

  •  An advanced and achromatic optical system comprised digital microscope
  •  Standard magnification of 40X to 1000X
  •  High contrast chromatic free 4X, 10X, 40X(S), and 100X (Oil, S) objectives
  •  Trinocular head inclined at 30°, quadruple nosepiece
  •  WF 10X/20 mm eyepiece with adjustable diopter
  •  Coaxial coarse & fine focusing with 24 mm focusing range
  •  9.7-inch LCD display, HDMI and TF Card output, touch screen USB mouse control
  •  Installed measure software, 5.0 MP digital camera with C-mount adapter
  •  Graphite surfaced double layer mechanical stage with 75×50 mm moving range
  •  External 3W kohler illumination with removable cover
  •  High-efficient, stable and easy to use with low maintenance

Viewing head Trinocular head inclined at 30°; Interpupillary distance: 48 to 75 mm; Adjustable tube diopter
Optical system Achromatic optical system
Illumination 3W Kohler illumination
Light distribution LED
Eyepiece Widefield eyepiece WF 10X/20 mm; 30 mm diameter
Nosepiece Quadruple Nosepiece, Backwards with click stop
Objective High contrast chromatic free 4X, 10X, 40X(S), and 100X (Oil, S)
Stage Double Layer Mechanical Stage, Graphite surface, 142×132 mm, Moving Range 75×50 mm
Standard magnification 40X to 1000X
Focusing Coaxial Coarse & Fine Focusing, Fine Division 0.002 mm, Coarse Stroke 37.7 mm/Rotation, Focusing Range 24 mm
Condenser N.A.1.25 Abbe Condenser, Iris Diaphragm, With Adjustable center
Power supply AC 110 V to 240 V; Wide voltage; Power cord detachable
Packaging dimension (L×W×H) 530×325×535 mm
Gross weight 11.5 kg

Digital microscope is ideally used for analysis and documentation of parts and samples during research and development (R&D), manufacturing and inspection, quality control and assurance (QC/QA), as well as failure analysis (FA) across research, scientific institutes, education, medicine, forensics, and industrial manufacturing etc.

Camera resolution 5.0 MP/ 9.7 inch
Sensor Type CMOS
Camera sensor size 1 / 2.5 inch
Camera mounting C-mount 1.0 X
Display 9.7 inch LCD screen, 2048×1536 @15FPS screen resolution
Output USB 2.0, HDMI, TF Card
Dimension Pad 238×182×12 mm, Camera 40×39 mm
Weight 0.7 kg
