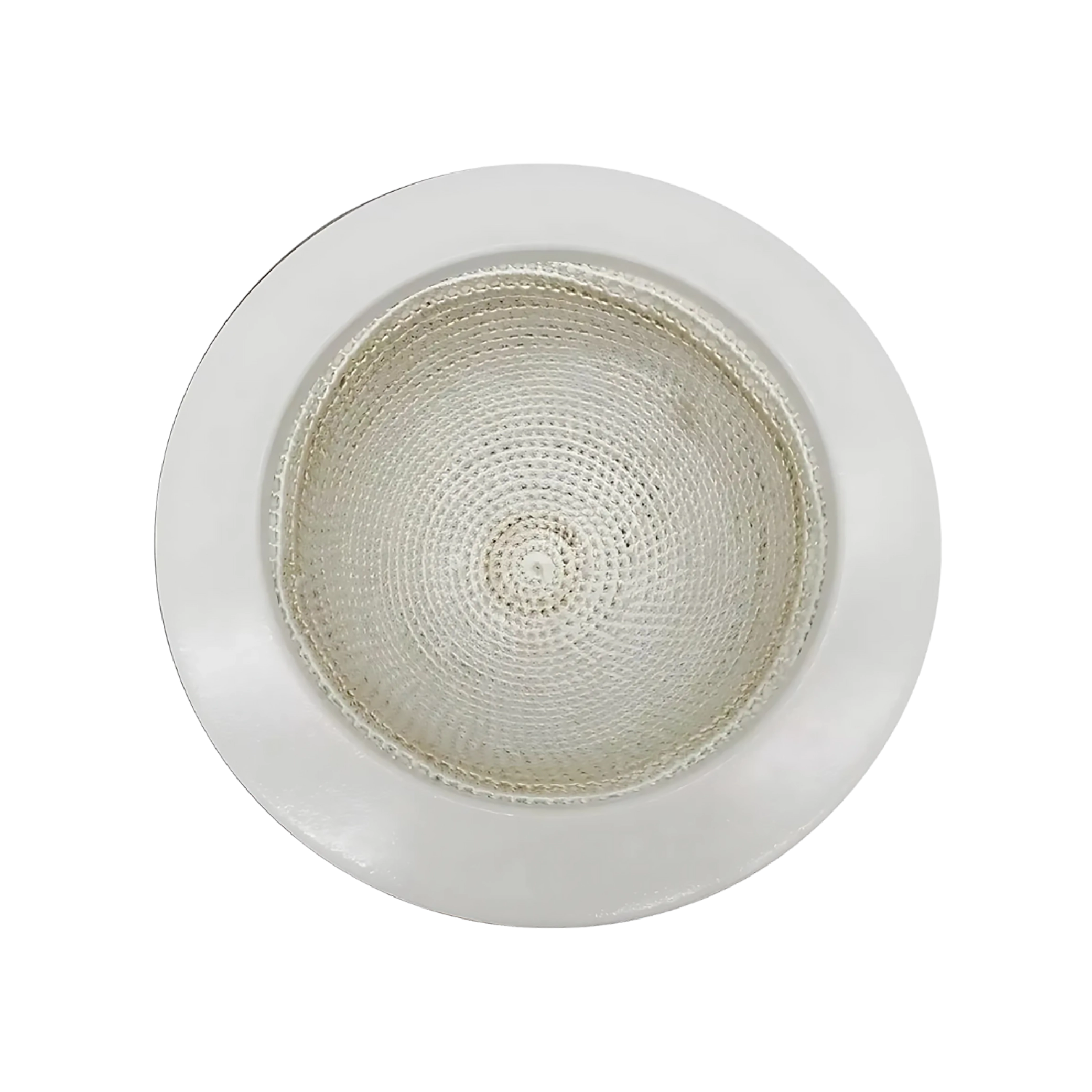

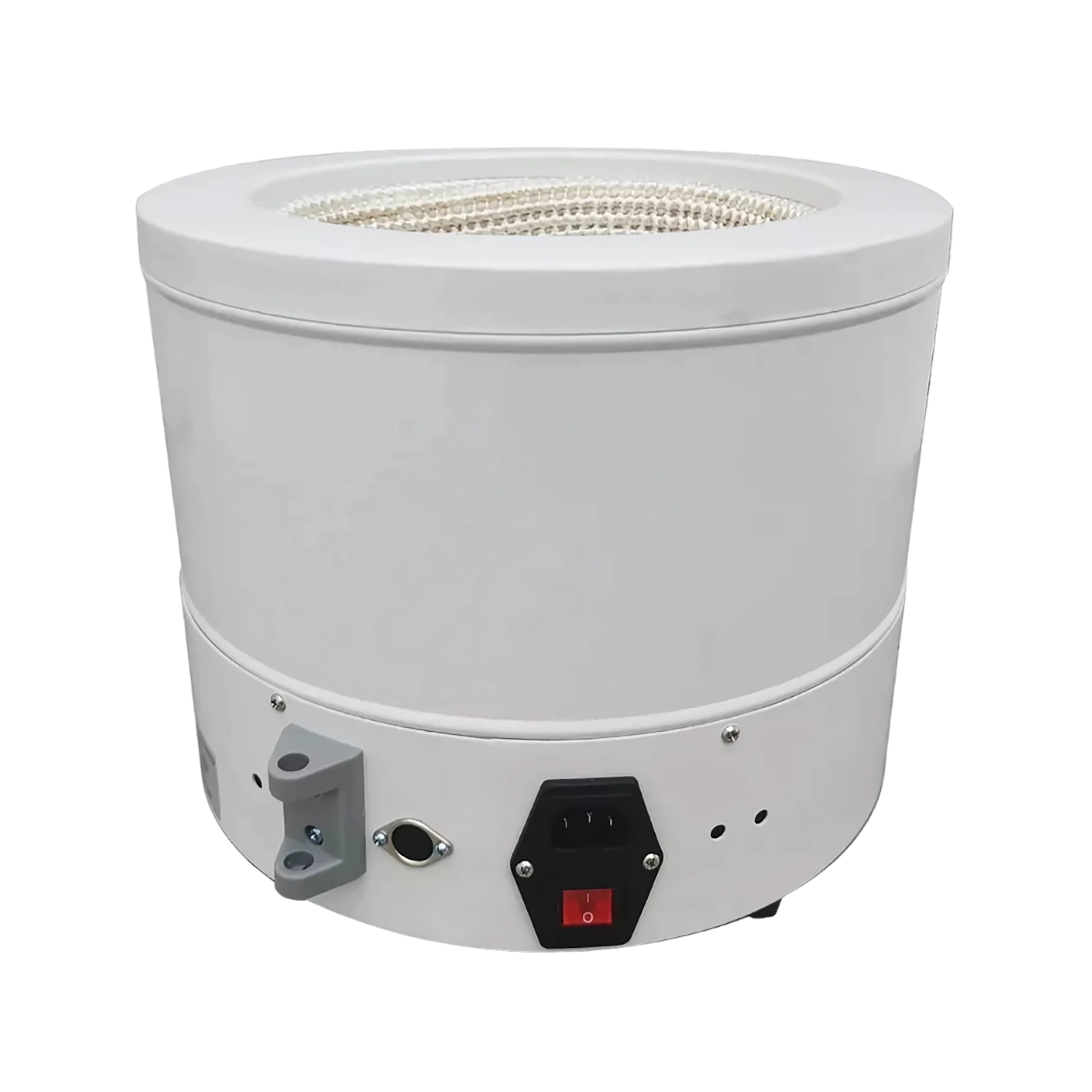

Digital Display Heating Mantle FM-DHM-A104
Digital Display Heating Mantle FM-DHM-A104 comes with a PID-controlled digital display and power supply light indicators. With a surface temperature reaching 450°C, it provides thermal insulation to maintain the temperature. It can hold standard round bottom flasks up to 1000 ml. Features unique ventilation slots to keep the exterior cool. Our heating mantle is designed for continuous operation without compromising performance.
Specifications
| Capacity | 1000 ml |
| Surface Maximum Temperature | 450°C |
| Heating Element | Nichrome Wire |
| Thermal Insulation | Aluminium silicate cotton fiber |
| Working Mode | Continuous |
| Power Consumption | 350 W |
| Power Supply | AC 220 V, 50Hz |
| External Dimension (W × H) | 280 × 220 mm |
| Packaging Dimension (W × D × H) | 290 × 290 × 300 mm |
| Net Weight | 5.5 kg |
| Gross Weight | 6.0 kg |
Features
- Nichrome wire as heating element
- PT-100 temperature sensor
- Aluminium silicate cotton fiber insulation
- Adjustable sensor rack and stainless rod
- Cold-rolled steel body
- Anti-corrosive coating
Applications
- Our Digital Display Heating Mantles are used in laboratories for precise and controlled heating of chemical solutions, ensuring accurate temperature regulation for experiments.
Accessories
- Main unit
Power cable
Stir bar
