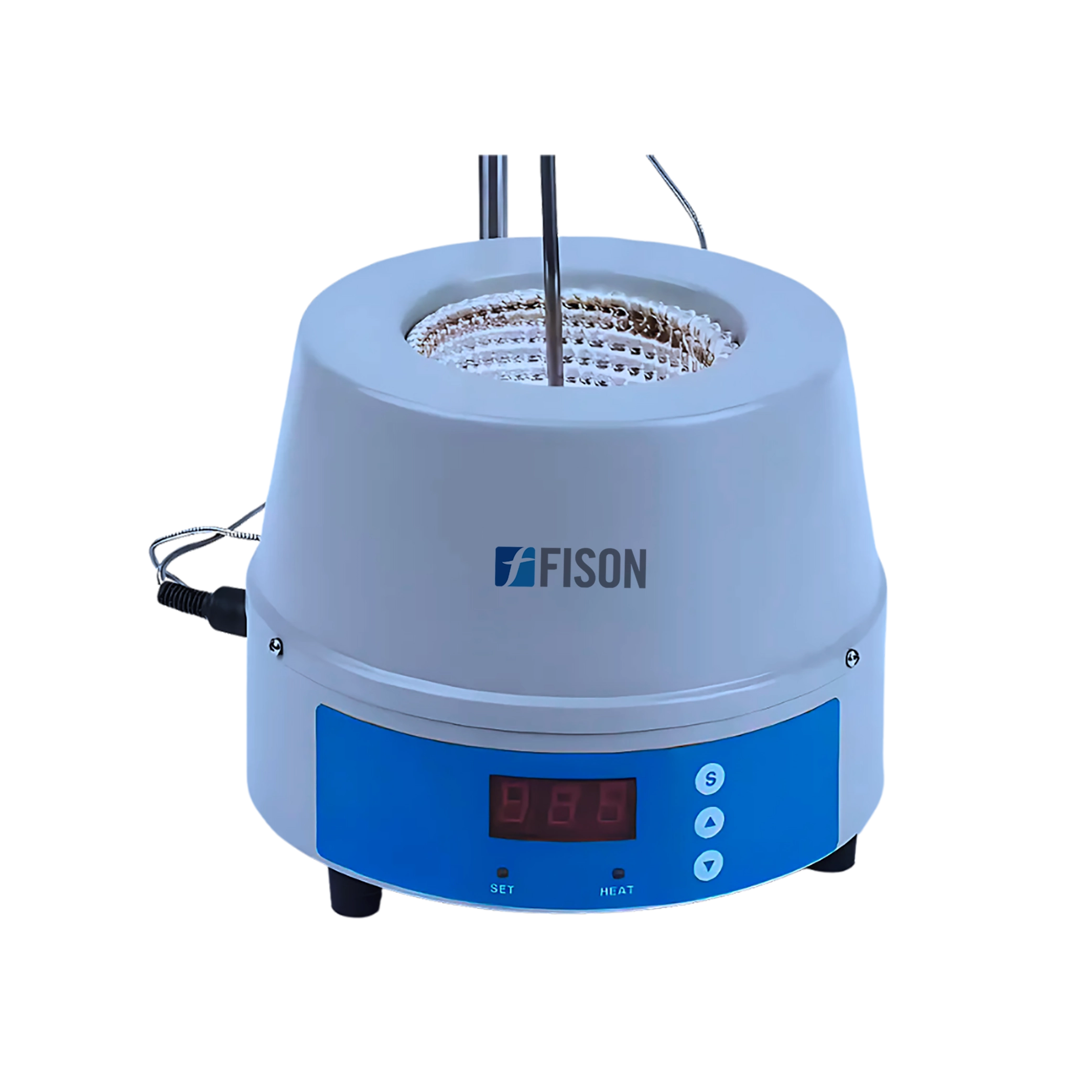

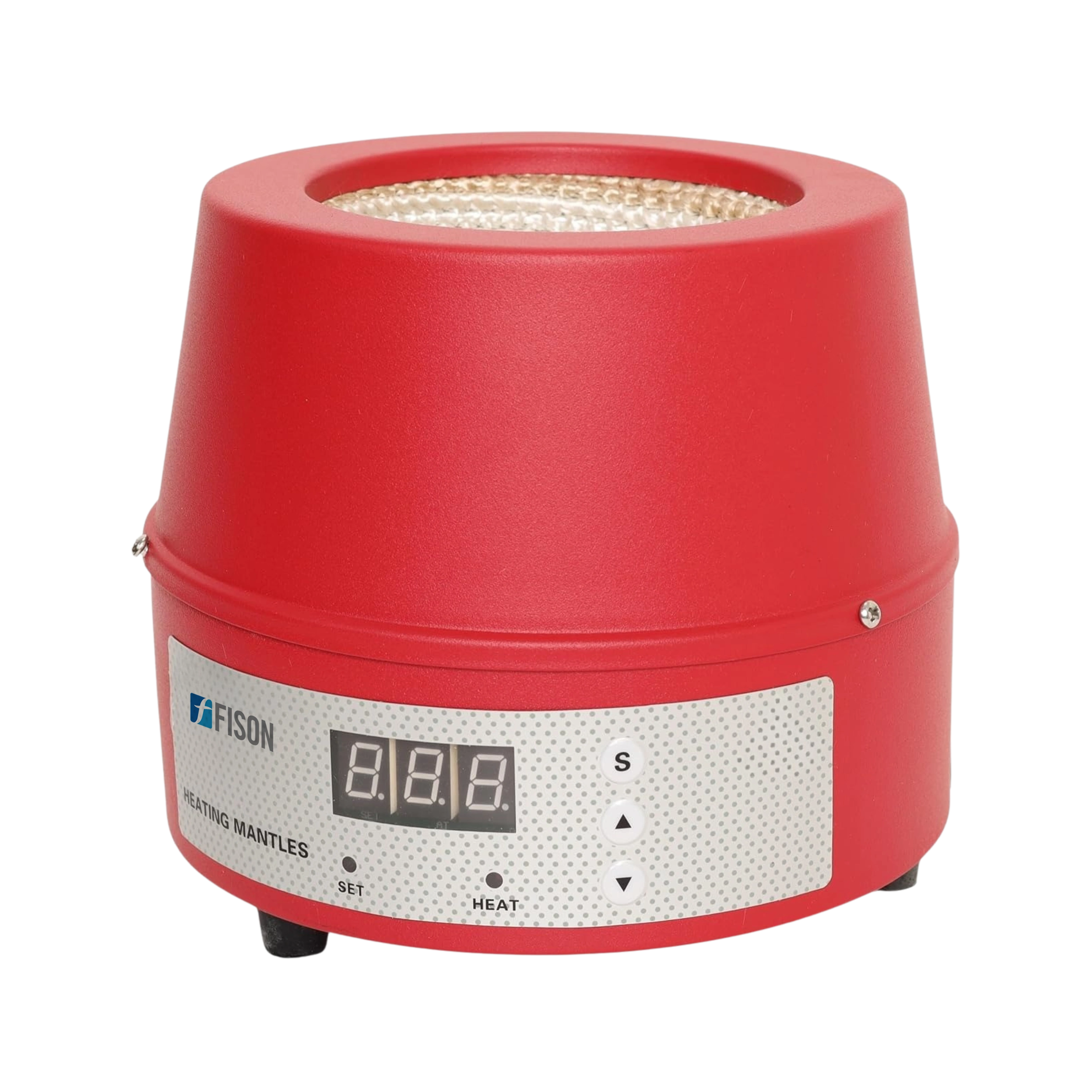

Digital Display Heating Mantle FM-DHM-A103 is capable of accommodating 500ml round bottom flask. Works efficiently up to a maximum temperature of 450°C. Enhanced with a flexible base heating element, it ensures minimum risk of flask breakage. Thermal insulation is provided by aluminum silicate cotton fiber. Our heating mantle is complemented by unique ventilation slots that ensure the exterior remains safe to touch even during operation.
| Capacity | 500 ml |
| Surface Maximum Temperature | 450°C |
| Heating Element | Nichrome Wire |
| Thermal Insulation | Aluminium silicate cotton fiber |
| Working Mode | Continuous |
| Power Consumption | 250 W |
| Power Supply | AC 220 V, 50Hz |
| External Dimension (W × H) | 220 × 165 mm |
| Packaging Dimension (W × D × H) | 230 × 230 × 195 mm |
| Net Weight | 2.5 kg |
| Gross Weight | 2.8 kg |
Digital Display Heating Mantle is used as a source for heating samples in the flask in laboratories, industries, and research institutes.
Main unit
Fison Heating Mantles with Magnetic Stirrers are designed for round-bottom flasks with a capacity of up to 10 Liters. They provide precise temperature control, ranging from ambient conditions to 380ºC, with an accuracy of ±1ºC. Their built-in magnetic stirrer allows for variable speed control of up to 1800 rpm. Our heating mantles feature sturdy, anti-corrosive steel housing, ensuring both durability and safety during use.
