Digital Display Heating Mantle FM-DHM-A102

Digital Display Heating Mantle FM-DHM-A102

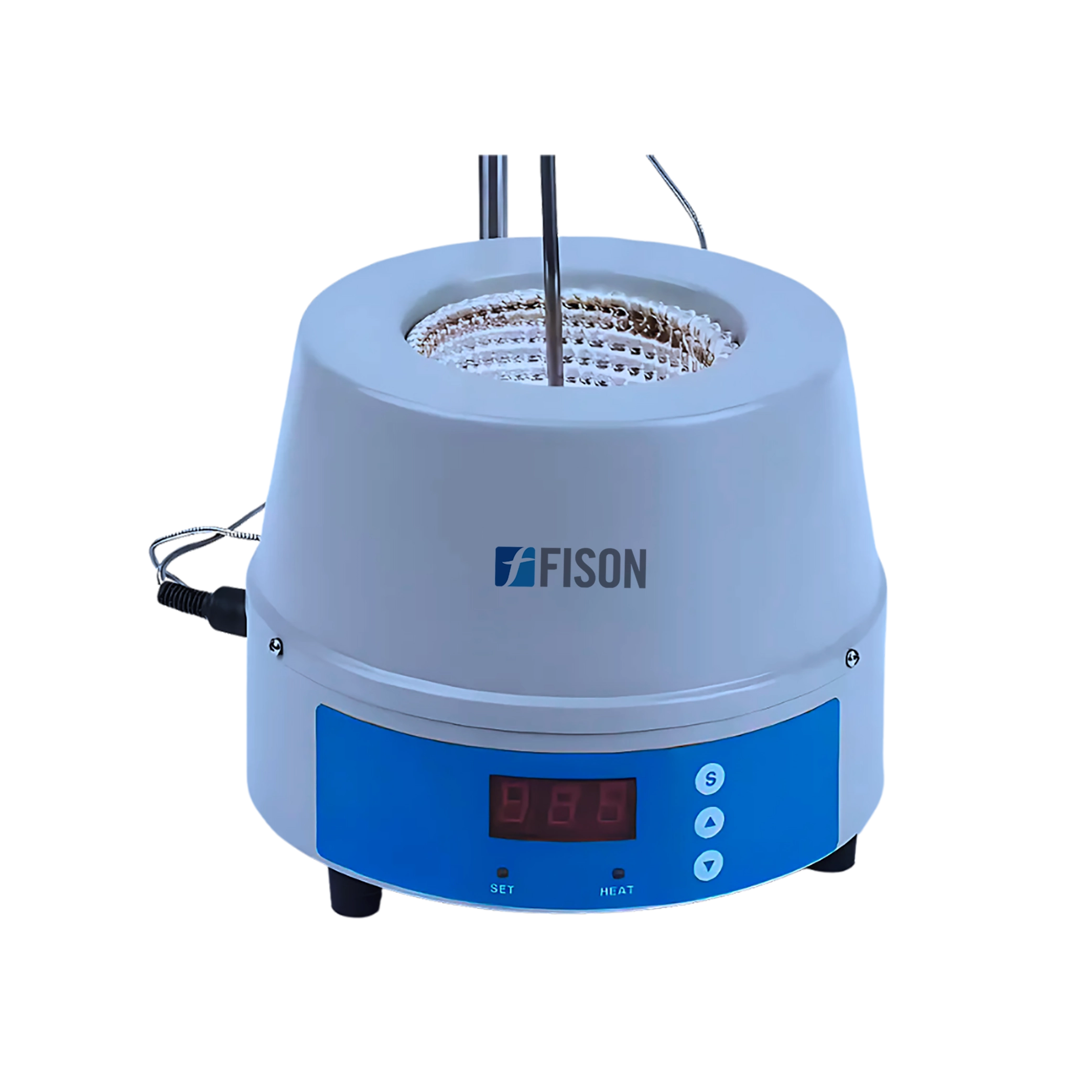

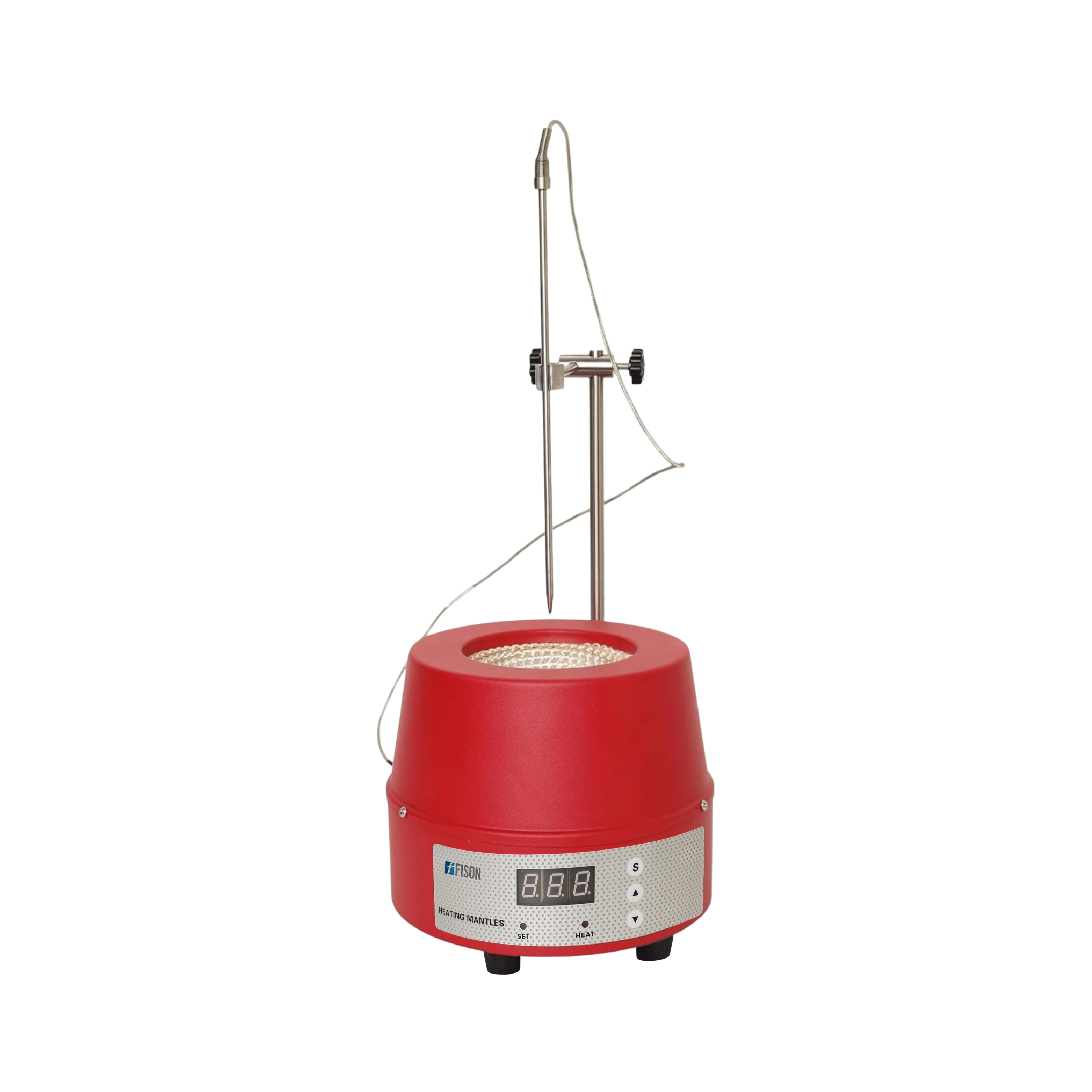

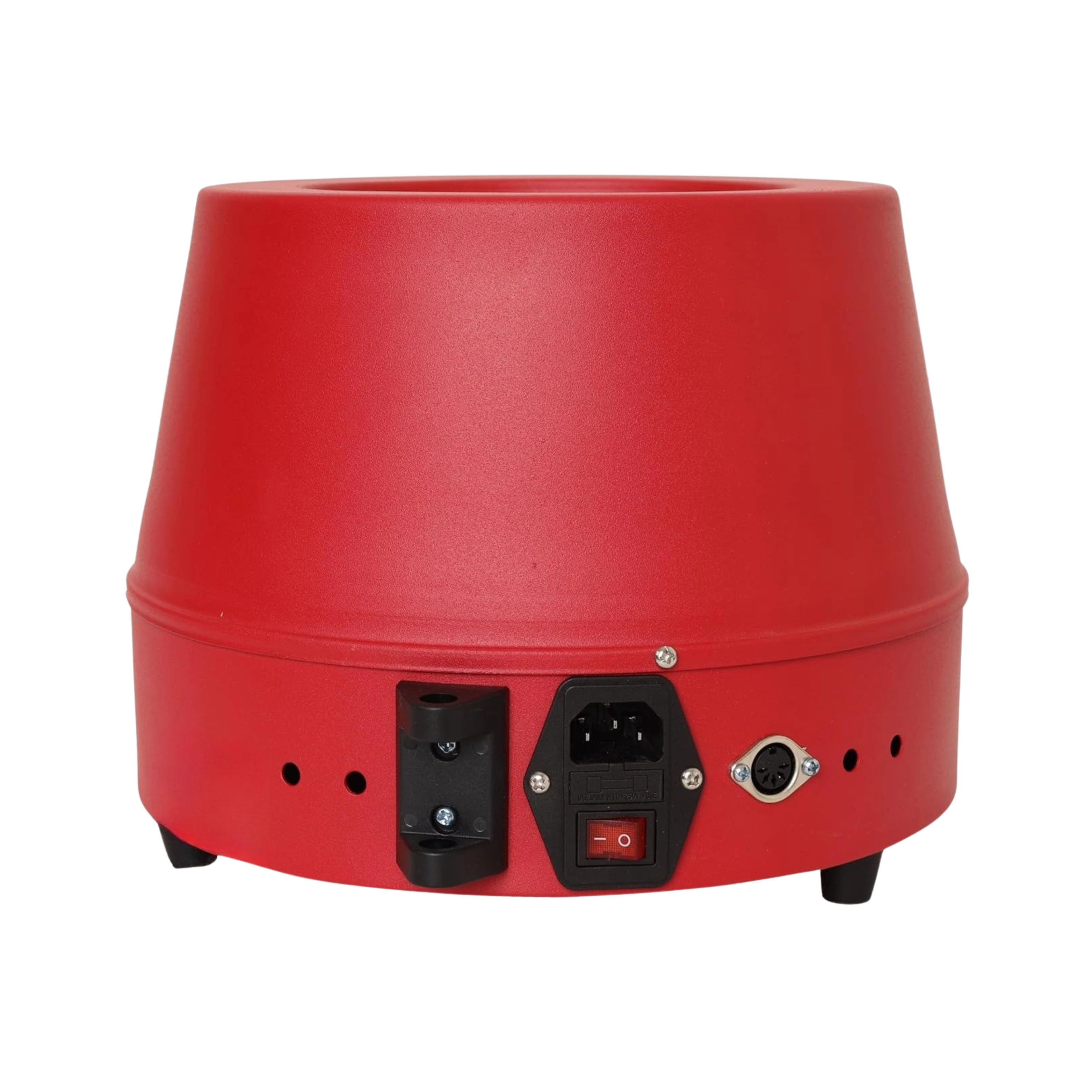

Digital Display Heating Mantle FM-DHM-A102 is a tabletop device having an operating temperature of 450°C. It has the capacity to hold a 250ml round bottom flask. Features adjustable sensor racks and stainless rods for flexible and secure positioning of samples. The casting of our mantle is made of cold-rolled steel and coated with corrosion-resistant material, enhancing durability.

Specifications

Capacity 250 ml
Surface Maximum Temperature 450°C
Heating Element Nichrome Wire
Thermal Insulation Aluminium silicate cotton fiber
Working Mode Continuous
Power Consumption 250 W
Power Supply AC 220 V, 50Hz
External Dimension (W × H) 220 × 165 mm
Packaging Dimension (W × D × H) 230 × 230 × 195 mm
Net Weight 2.5 kg
Gross Weight 2.8 kg

Features

  • PID temperature controller
  • Nichrome wire as heating element
  • Aluminium silicate cotton fiber insulation
  • PT-100 temperature sensor
  • Unique ventilation slots
  • Powered with lights for heat and power indication

Applications

  • Our Digital Display Heating Mantle is used in petrochemical industries, medicine, and environment protection institutions for liquid heating, chemical synthesis, physical and chemical analysis, biopharmaceuticals, etc.

Accessories

  • Main unit
    Power cable
    Stir bar

Alternative Models Of Digital Display Heating Mantle

Fison Digital Display Heating Mantles with a capacity of 50ml feature a digital display and light indicators for heat and power status. These mantles can achieve a maximum surface temperature of 450°C. They come with adjustable temperature settings, that allow the users to customize heating levels according to their specific needs. They also have unique ventilation slots that keep the exterior cool during continuous operation. Our heating mantle is coated with an anti-corrosive layer giving it a longer shelf life.

Digital Display Heating Mantle FM-DHM-A100

  • Capacity: 50 ml
  • Surface Maximum Temperature: 450°C
  • Heating Element: Nichrome Wire
Catalog

Digital Display Heating Mantle FM-DHM-A101

  • Capacity: 100 ml
  • Surface Maximum Temperature: 450°C
  • Heating Element: Nichrome Wire
Catalog

Digital Display Heating Mantle FM-DHM-A103

  • Capacity: 500 ml
  • Surface Maximum Temperature: 450°C
  • Heating Element: Nichrome Wire
Catalog
Digital Display Heating Mantle FM-DHM-A104
  • Capacity: 1000 ml
  • Surface Maximum Temperature: 450°C
  • Heating Element: Nichrome Wire
Catalog

Heating Mantle with Magnetic Stirrer

Fison Heating Mantles with Magnetic Stirrers are designed for round-bottom flasks with a capacity of up to 10 Liters. They provide precise temperature control, ranging from ambient conditions to 380ºC, with an accuracy of ±1ºC. Their built-in magnetic stirrer allows for variable speed control of up to 1800 rpm. Our heating mantles feature sturdy, anti-corrosive steel housing, ensuring both durability and safety during use.

Heating Mantle with Magnetic Stirrer FM-DHM-B100

  • Capacity : 10 L
  • Temperature control : PID controlled system, inner and outer thermocouple
  • Temperature drift : ≤ 0.01% FS /°C (typical 50 PPM /°C)
Catalog

Heating Mantle with Magnetic Stirrer FM-DHM-B101

  • Capacity : 20 L
  • Temperature control : PID controlled system, inner and outer thermocouple
  • Temperature drift : ≤ 0.01% FS /°C (typical 50 PPM /°C)
Catalog
