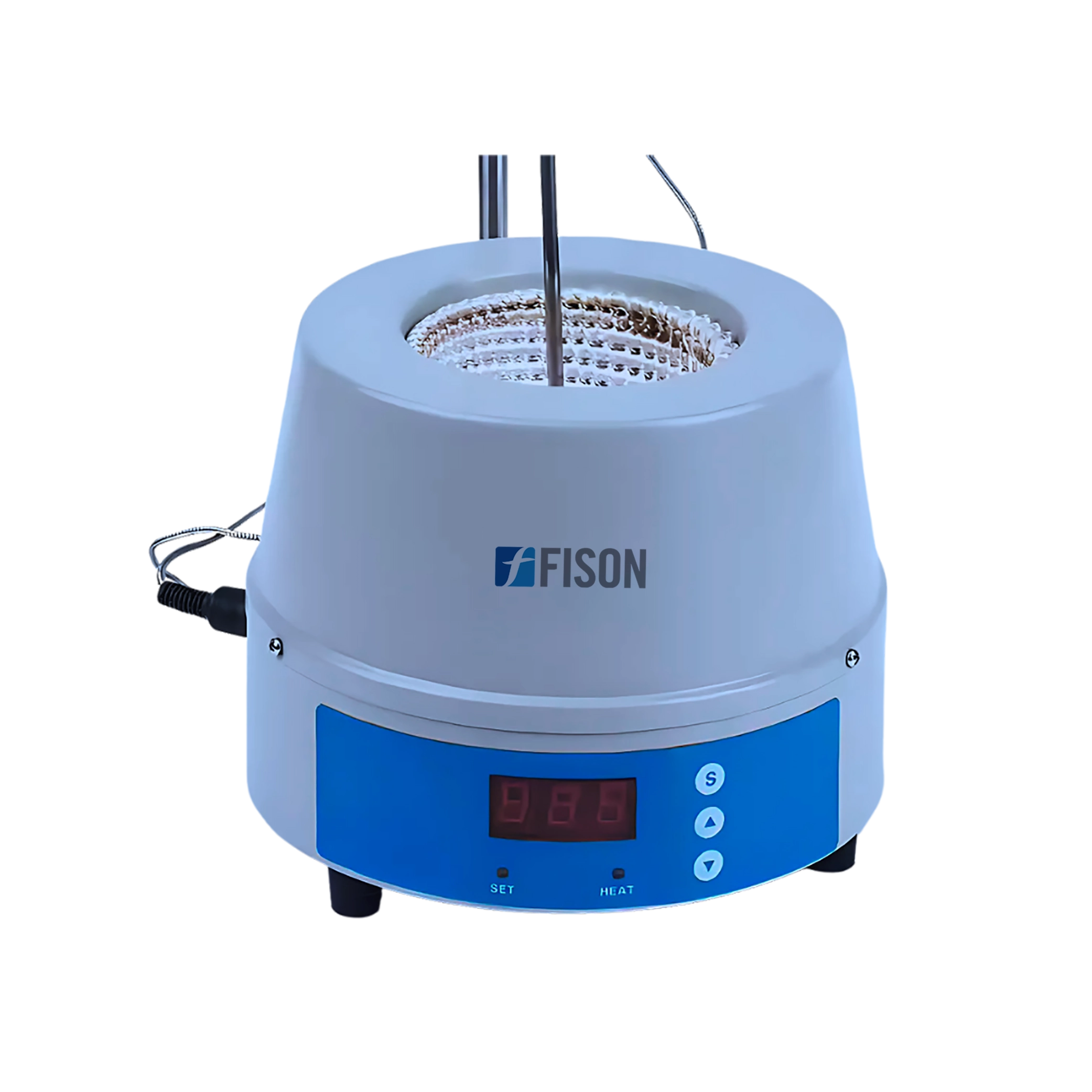

Digital Display Heating Mantle FM-DHM-A101
Digital Display Heating Mantle FM-DHM-A101 is a PID-controlled benchtop unit having a capacity of 100 ml. Features a nichrome wire heating element suspended within high-quality aluminium silicate cotton fiber insulation. With adjustable sensor racks and stainless rods, it can acquire a maximum temperature of 450°C. Enhanced with unique ventilation slots our mantle can operate continuously without heating.
Specifications
| Capacity | 100 ml |
| Surface Maximum Temperature | 450°C |
| Heating Element | Nichrome Wire |
| Thermal Insulation | Aluminium silicate cotton fiber |
| Working Mode | Continuous |
| Power Consumption | 100 W |
| Power Supply | AC 220 V, 50Hz |
| External Dimension (W × H) | 220 × 165 mm |
| Packaging Dimension (W × D × H) | 230 × 230 × 195 mm |
| Net Weight | 2.5 kg |
| Gross Weight | 2.8 kg |
Features
- In-built digital display
- Powered with lights for heat and power indication
- PT-100 temperature sensor
- Capable of continuous work
- Cold-rolled steel body
- Anti-corrosive coating
- Unique ventilation slots
Applications
- Our Digital Display Heating Mantle is used as a source for heating liquid samples across laboratories, industries and research institutes, petrochemical industries, agriculture, and environment protection institutions.
Accessories
- Main unit
Power cable
Stir bar
