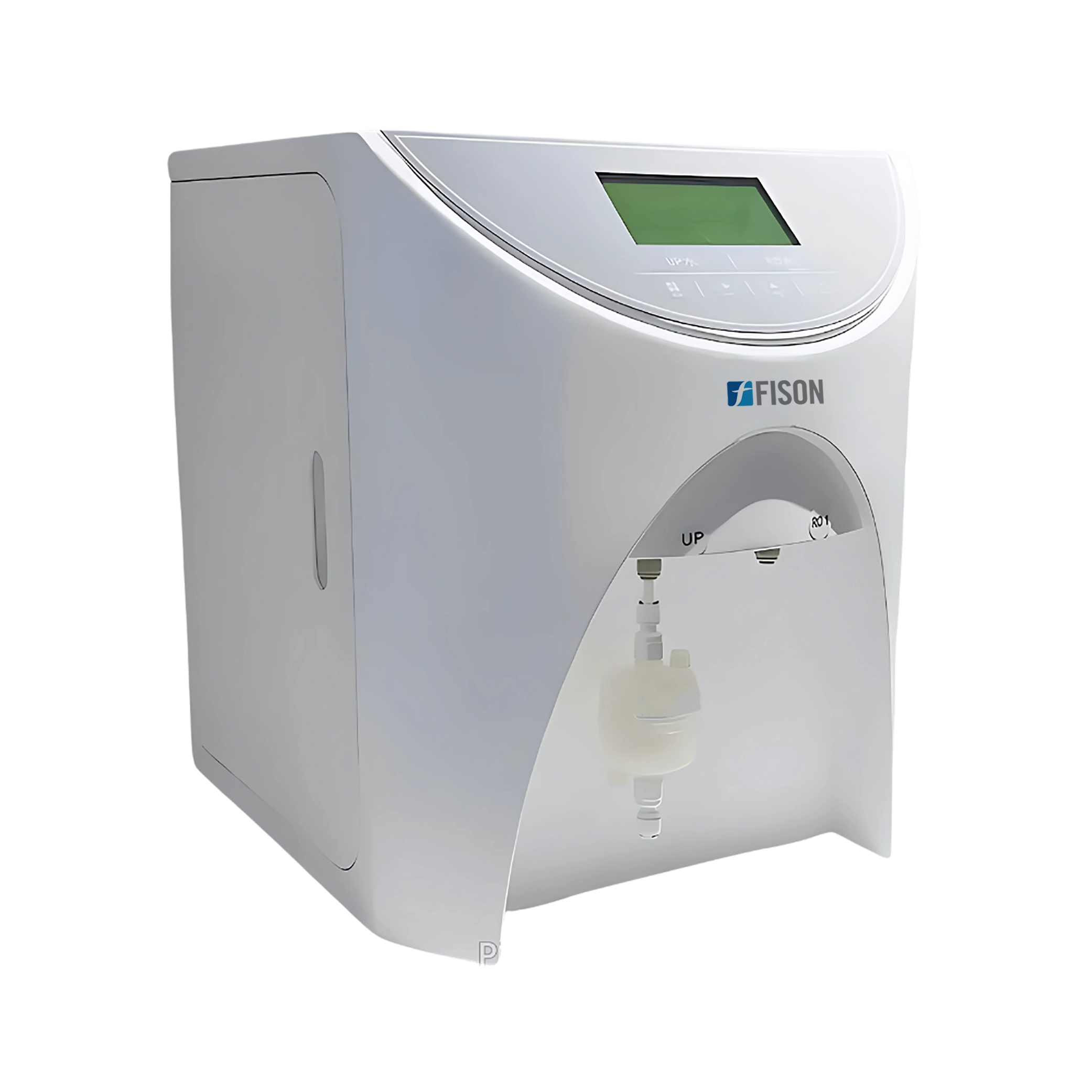

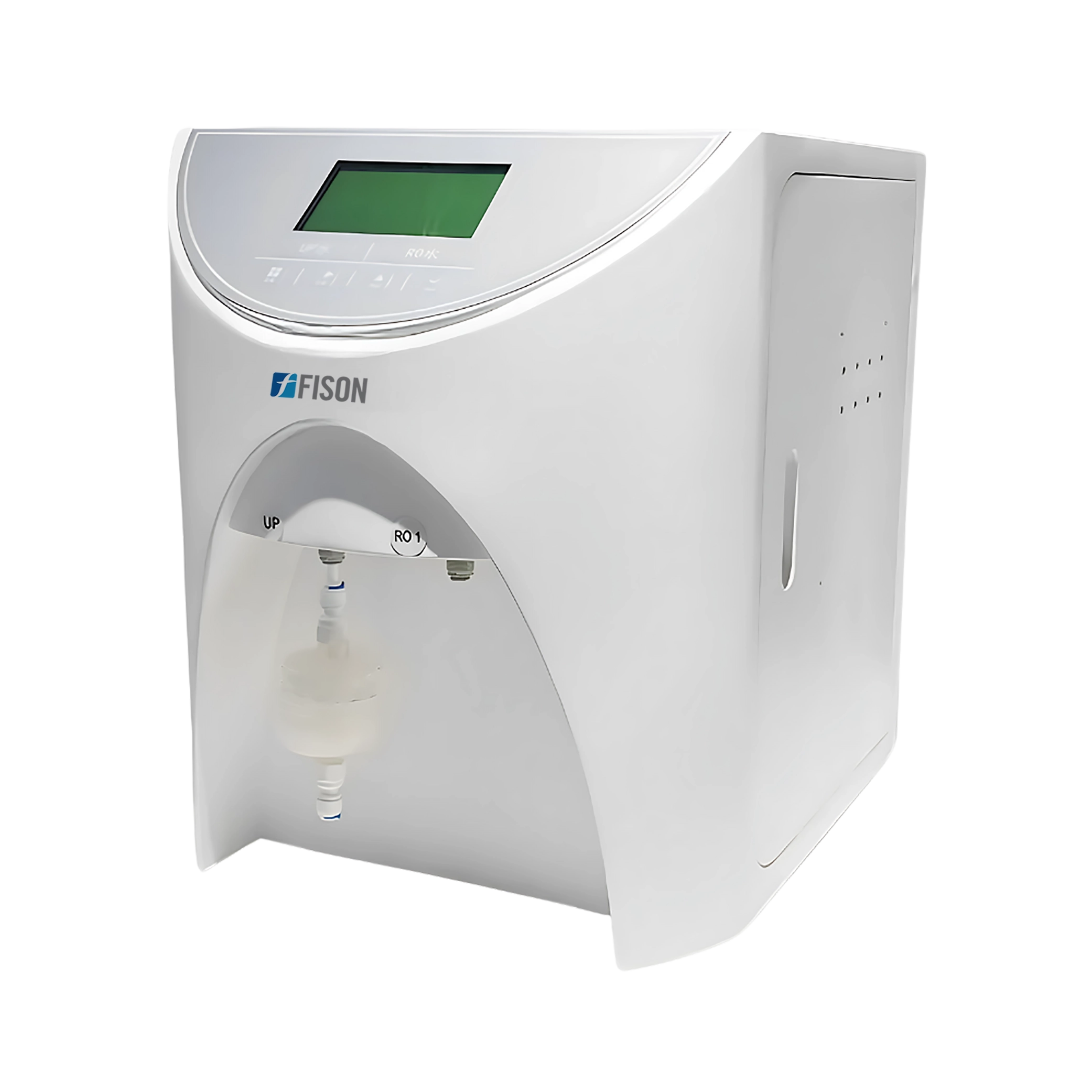

Deionized Water System FM-DWS-A101

Deionized Water System FM-DWS-A101

Deionized Water System FM-DWS-A101 is equipped with multiple ports and offers a water output speed of 30L/H at 25 °C. Our water system is enhanced with multi-stage purification ensuring the production of high-purity water. It operates with an inlet water pressure of 0.1 to 0.3 MPa and a temperature range of 5 to 40°C. Integrated with a 5-inch LCD screen for monitoring and controlling operations.

  •  Scheduled water dispensing
  •  High/Low-pressure protection
  •  Auto shutdown on water cut
  •  Autonomous washing for extended shelf life of filters
  •  Complies with GB57492

Water Output Speed at 25℃ 30 L/H
Water Output Type UP water outlet
RO water outlet
DI water outlet
Purifying Procedure PF+AC+RO+AC+UV+UP+TF
Water Supply water pressure 0.1 to 0.3Mpa, at 5 to 40°C
UP Water Resistivity 18.2MΩ.cm
UP Water Conductivity 0.055μs/cm
UP Water Heavy Metal <0.1ppb
UP Water Particle <1/ml
UP Water Bacteria <0.01cfu/ml
UP Water TOC <50ppb
DI Water Resistivity 10 to 18.2MΩ.cm
DI Water Conductivity 0.055 to 0.1μs/cm
DI Water Heavy Metal <0.1ppb
DI Water Particle <1/ml
DI Water Bacteria <0.1cfu/ml
RO Water Ion Rejection Rate 96% to 99%
RO Organic Rejection Rate >99%
RO Particles and Bacteria Rejection Rate >99%
Power Consumption 74W
Power Supply 100 to 240V, 50/60Hz
Dimension (L × W × H) 386 × 481 × 461mm
Packing Dimension (L × W × H) 540 × 455 ×540mm
Net Weight 21.5 kgs
Gross Weight 26.5kgs

Deionized Water System is widely utilized in laboratory research, medical and health care, food and beverage industry, and power generation.

PP filter element


Granular activated carbon filter element
High-quality coconut shell-activated carbon filter
Large T33 filter
7GPD RO membrane(2pcs)
Ultra purification column (4pcs)
Capsule filter
