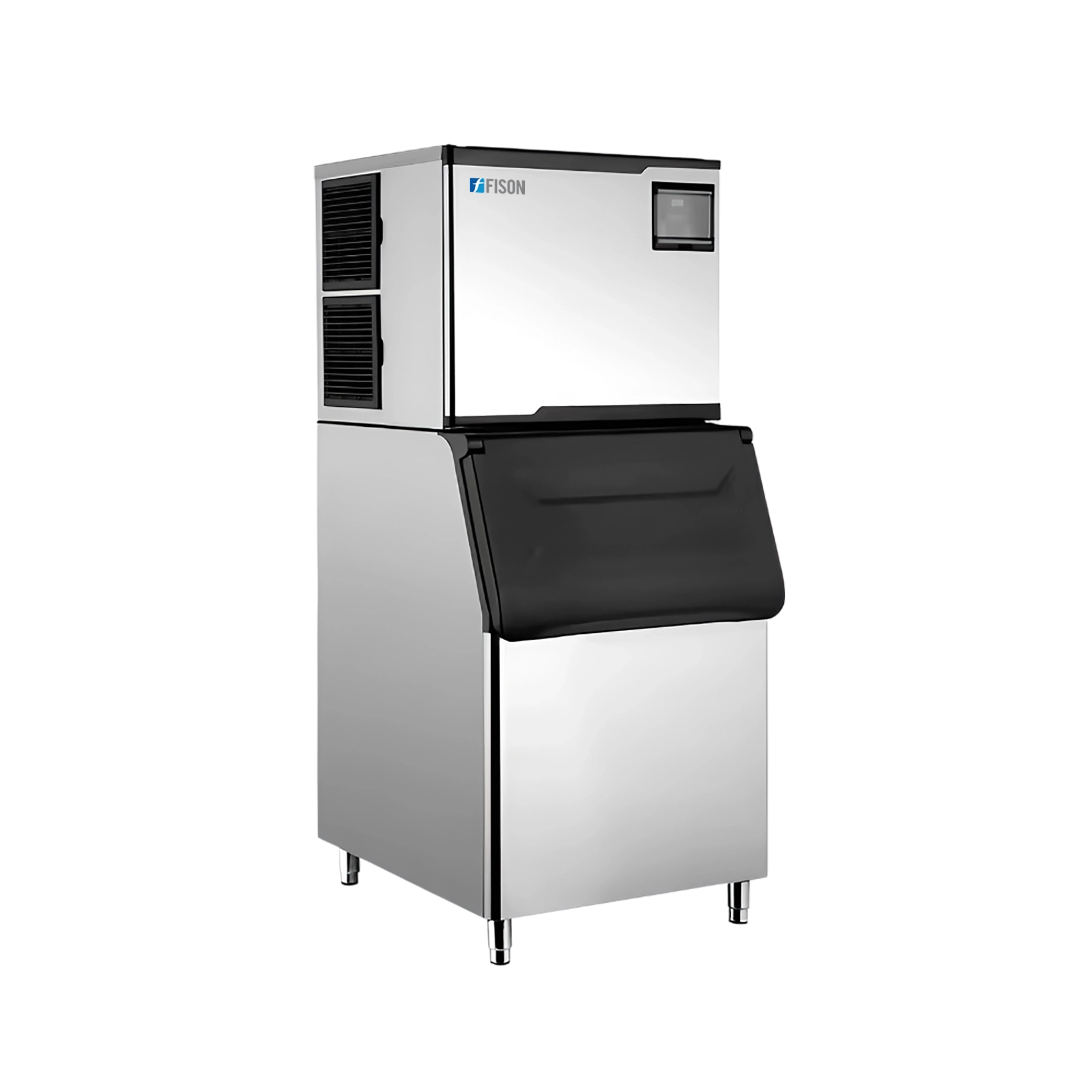

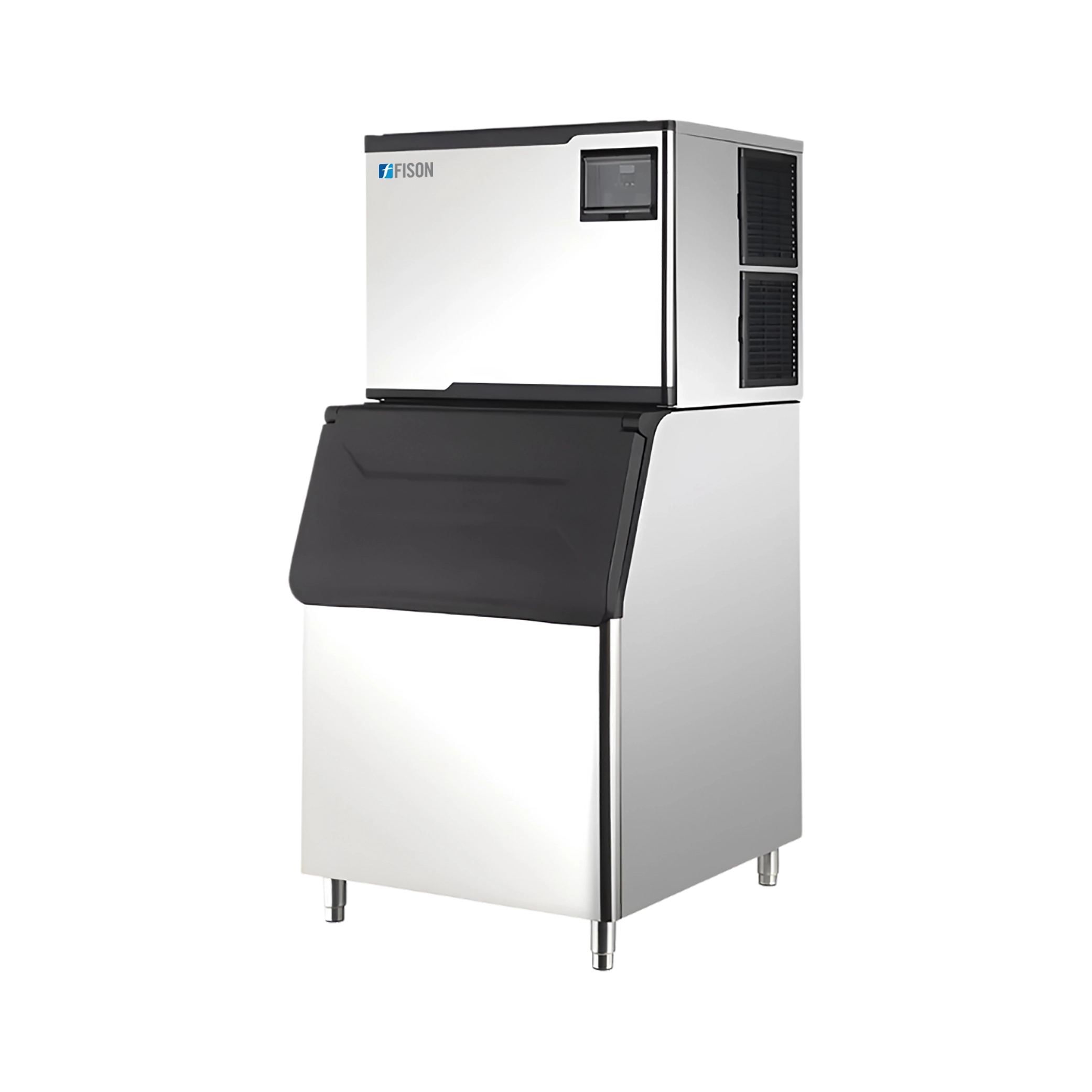

Cube Ice Maker FM-CIM-A100
Cube Ice Maker FM-CIM-A100 features an effective nickel-plated copper ice tray that enhances ice-making efficiency. Operates optimally under test conditions of 15 ℃ ambient temperature and 10 ℃ water temperature. It employs both air- and water-cooling methods for condensation. This Cube Ice Maker produces ice in cycles of 12 to 13 minutes, efficiently keeping up with high demand.
Specifications
| Maximum Ice Production Capacity | 220 Kg/day |
| Storage Bin Capacity | 150 Kg |
| Condensation Method | Air cooling/Water cooling |
| Ice Cube Size | 23 ×23×23 mm |
| Ice Cube Weight | 9.5 g |
| Refrigerant | R404a |
| Test Conditions | Ambient temperature: 15 ℃/Water temperature: 10 ℃ |
| Single Ice Production Time | 12 to 13 min |
| Power Cord Style | 10 A plug, Wire diameter 1.5 mm |
| Power Consumption | 1000 W |
| Power Supply | 220 V/50 Hz |
| Ice Bucket Dimension (W × D × H) | 640 × 910 × 960 mm |
| Host Dimension (W × D × H) | 640 × 700 × 760 mm |
| Packaging Dimension (W × D × H) | 560 × 830 × 1720 mm |
| Ice Storage Bucket Net Weight | 32 Kg |
| Ice Storage Bucket Gross Weight | 39 Kg |
| Host Net Weight | 65 Kg |
| Host Gross Weight | 70 Kg |
Features
- R404a as a refrigerant
- One key cleaning function
- Food-grade standards
- Hygienic ice production
- Thermally insulated ice storage bucket
- Stainless steel body
- LCD screen
- Easy-to-use interface
Applications
- The Cube Ice Maker is essential for laboratories to supply clean, uniform ice cubes for sample preservation and temperature-sensitive experiments. Its hygienic design and efficient production ensure reliable performance in scientific research and clinical settings.
Accessories Optional
- UVC-LED Ultraviolet Germicidal Lamps
