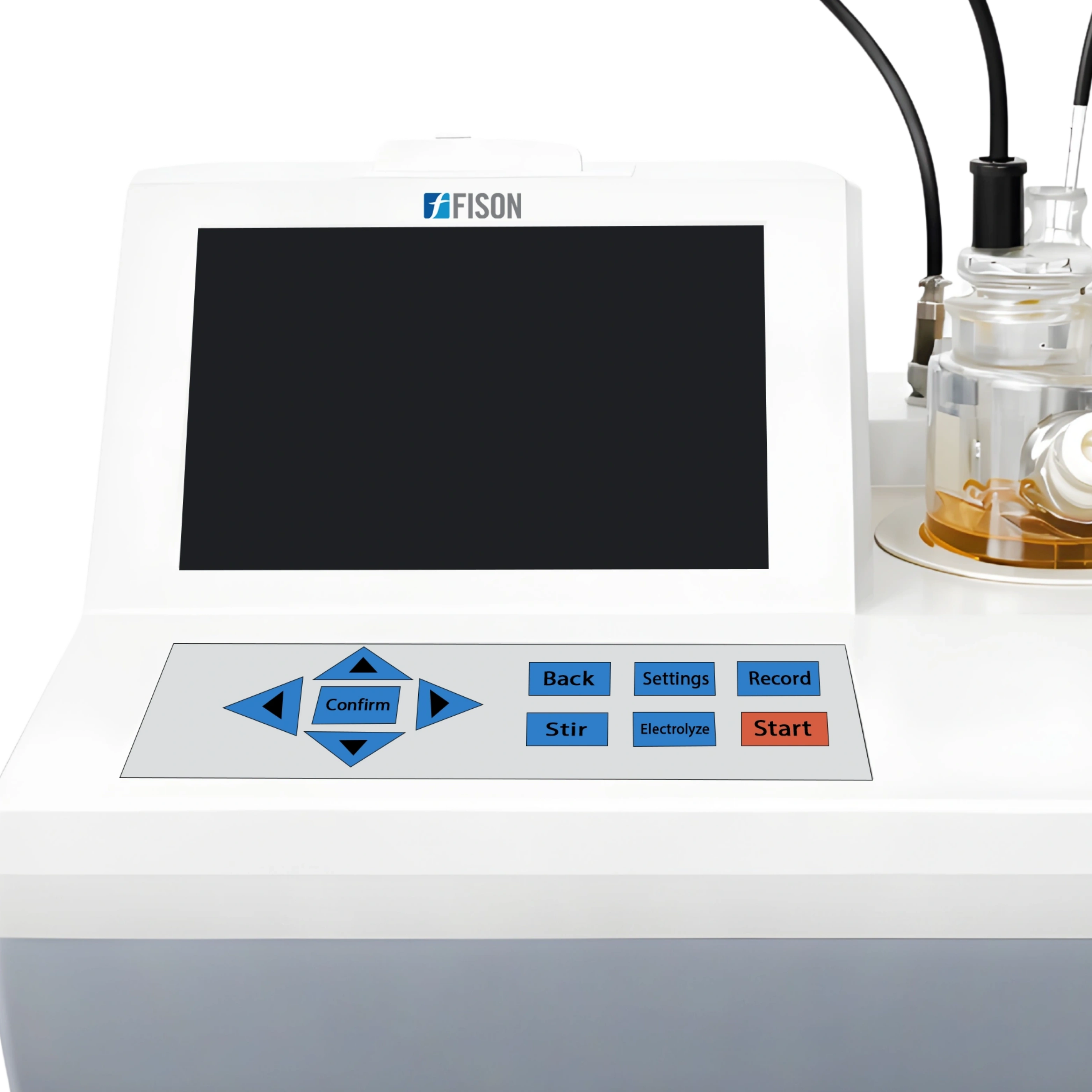

Coulometric Karl Fischer Titrator FM-AKT-A200

Coulometric Karl Fischer Titrator FM-AKT-A200

Coulometric Karl Fischer Titrator FM-AKT-A200 is an automatic and advanced Coulometric Karl Fischer Titrator designed as per ASTMD1744, ISO3698, ISO10337, ISO760 standards. Features Arm9 processor with automatic control, offers measuring range of 1μg to100 µg with 0.1 µg of sensitivity and 0 to 400 mV of electrolytic current. Compact design with 5.7 inch LCD screen, line thermal printer and storage for 200 records with number and time stamp, features instrument fault diagnosis, automatic printing and large current background compensation. With built-in formulas for calculating the moisture content, current and accurate real-time test, and automatic memory electrolyte status, offers lapsed reagent replacement reminder function with analysis according to different user requirements.

Specifications

Method Karl - Fischer coulometric titration
Electrolytic current 0 to 400 mA
Measuring range 1μg to100 µg
Accuracy 3 μg to 500 μg: ± 2 μg;
>500 μg: 0.2%
Sensitivity 0.1 µg
Calculation Content calculations,
Statistical calculations,
Variety selection formula
Test method Current and accurate real-time test
Printer Line thermal printer
Printing Automatic
Storage ≤200 records with number and time stamp
Processor Arm9
Display 5.7 inch LCD display
Self-test function Instrument fault diagnosis
Power supply AC 220 V ± 10%, 50 Hz ± 5%
Dimension (L×W×H) 310×295×215 mm
Net weight 6 kg
Packaging dimension (L×W×H) 570×410×310 mm
Gross weight 13 kg

Features

  • An automatic and advanced Coulometric Karl Fischer Titrator with compact design
  • Designed as per ASTMD1744, ISO3698, ISO10337, ISO760 standards
  • Measuring range of 1μg to100 µg with 0.1 µg of sensitivity
  • Arm9 processor with latest automatic control and 0 to 400 mV of electrolytic current
  • 5.7 inch LCD screen, ensures easy and convenient monitoring
  • Built-in line thermal printer with automatic printing
  • Large storage for up to 200 records with number and time stamp
  • Instrument fault diagnosis and large current background compensation
  • Built-in formulas for calculating the moisture content
  • Current and accurate real-time test, improves measurement accuracy
  • Automatic memory electrolyte status with lapsed reagent replacement reminder
  • Offers analysis according to different user requirements
  • High-efficient, stable and reliable with high measurement accuracy

Applications

  • Coulometric Karl Fischer Titrator is used to determine trace moisture content of alcohols, oils, fats, ethers, esters, acids, alkanes, benzene, amines, organic solvents, pesticides, phenols, drug raw materials, chemicals, petroleum, pharmaceuticals, pesticides etc. across food, oil, pharmaceutical, and semiconductor industries etc.

Alternative Models Of Coulometric Karl Fischer Titrator

Fison Coulometric Karl Fischer Titrators detect sample moisture content based on electric current analysis. They feature auto-dispense, auto-mix and auto-detect operation. Equipped with LCD systems for easy viewing of units, titration volume, current value etc. They are built with chemical-resistant materials to withstand harsh reagents of Karl-Fischer reactions. Our Coulometric KF Titrators indirectly measure trace level water content in the range of 1µg to 1000 µg.

Coulometric Karl Fischer Titrator FM-AKT-A100

  • Method: Karl Fischer Coulometric Titration
  • Measuring cell: Two electrolysis measuring chambers
  • Amount of electrolyzed water: 10 ug to 1000 ug
Catalog

Coulometric Karl Fischer Titrator FM-AKT-A101

  • Method: Coulometric titration (Coulomb analysis)
  • Measurement Range: 1 μg to 200mg
  • Electrolytic Current Control Range: 0 to 400mA automatic control
Catalog

Volumetric Karl Fischer Titrator

Fisons Volumetric Karl Fischer Titrator range measure sample moisture content based on its reaction ratio with water. Their solvent handling system are incorporated with desiccators to prevent humidity interference. Titration vessels are built from top-quality glass to minimize reaction drifts over time. They feature automatic error compensation systems for hassle-free operation. Our Volumetric KF Titrators can determine moderate to high water content in the range of 0.01 µg to 500 mg.

Karl Fischer titrator FM-AKT-C100

  • Testing range : 0.01 µg to 200 mg of H 2 O
  • Water content range : 0.0001 % to 100 %
  • Sensitivity : 0.01 µg H 2 O
Catalog

Volumetric Karl Fischer FM-AKT-D100

  • Titration Mechanism : Karl Fischer reaction
  • Testing Range : 0.1 mg to 250 mg of H2O
  • Sensitivity : 0.1 mg of H2O
Catalog
Volumetric Karl Fischer Titrator FM-AKT-B100
  • Titration method : Volumetric Karl-Fischer reagent titration process
  • Measuring range : 0.1 mg H 2 O to 500 mg H 2 O (3 ppm - 100%)
  • Moisture resolution : 3 ppm
Catalog
