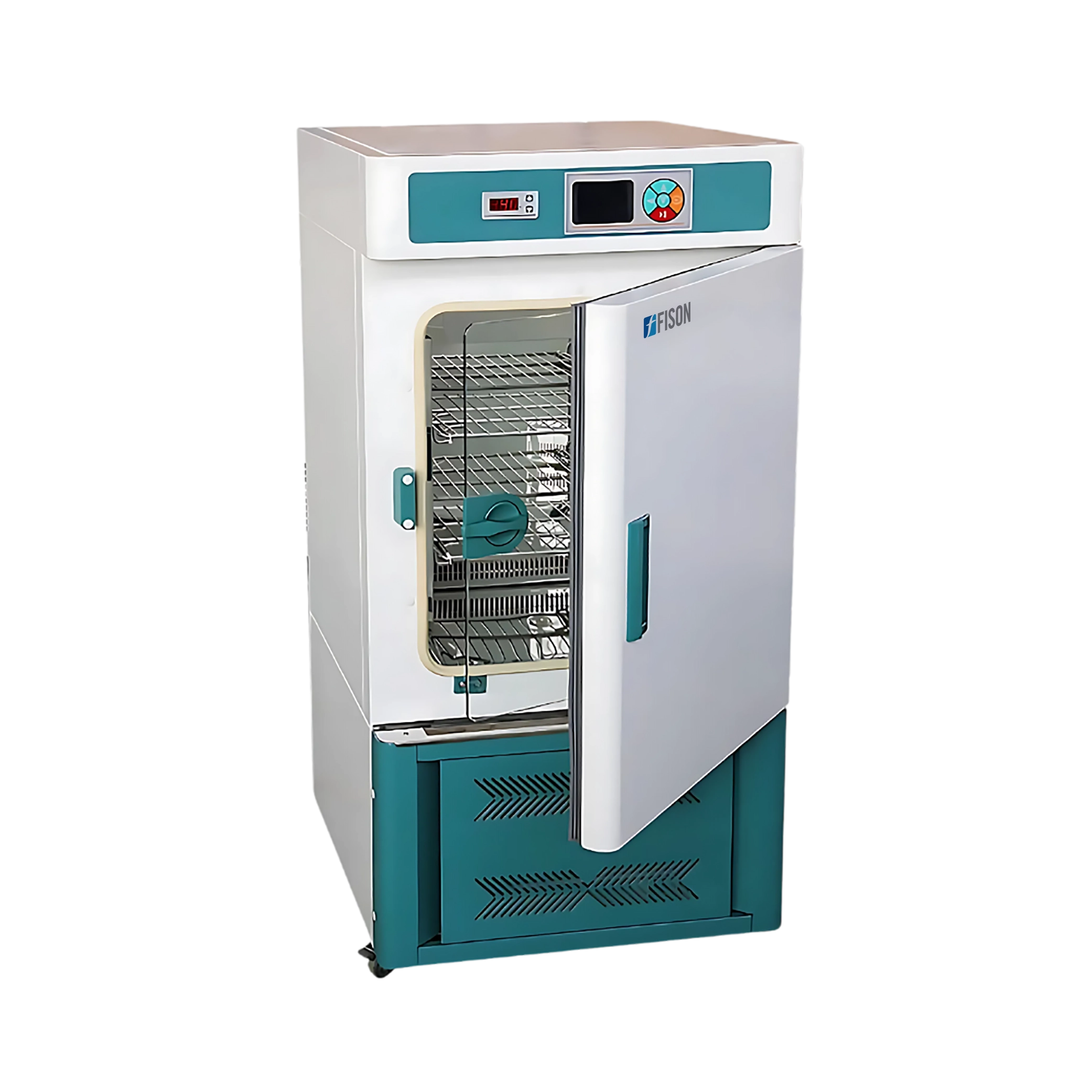

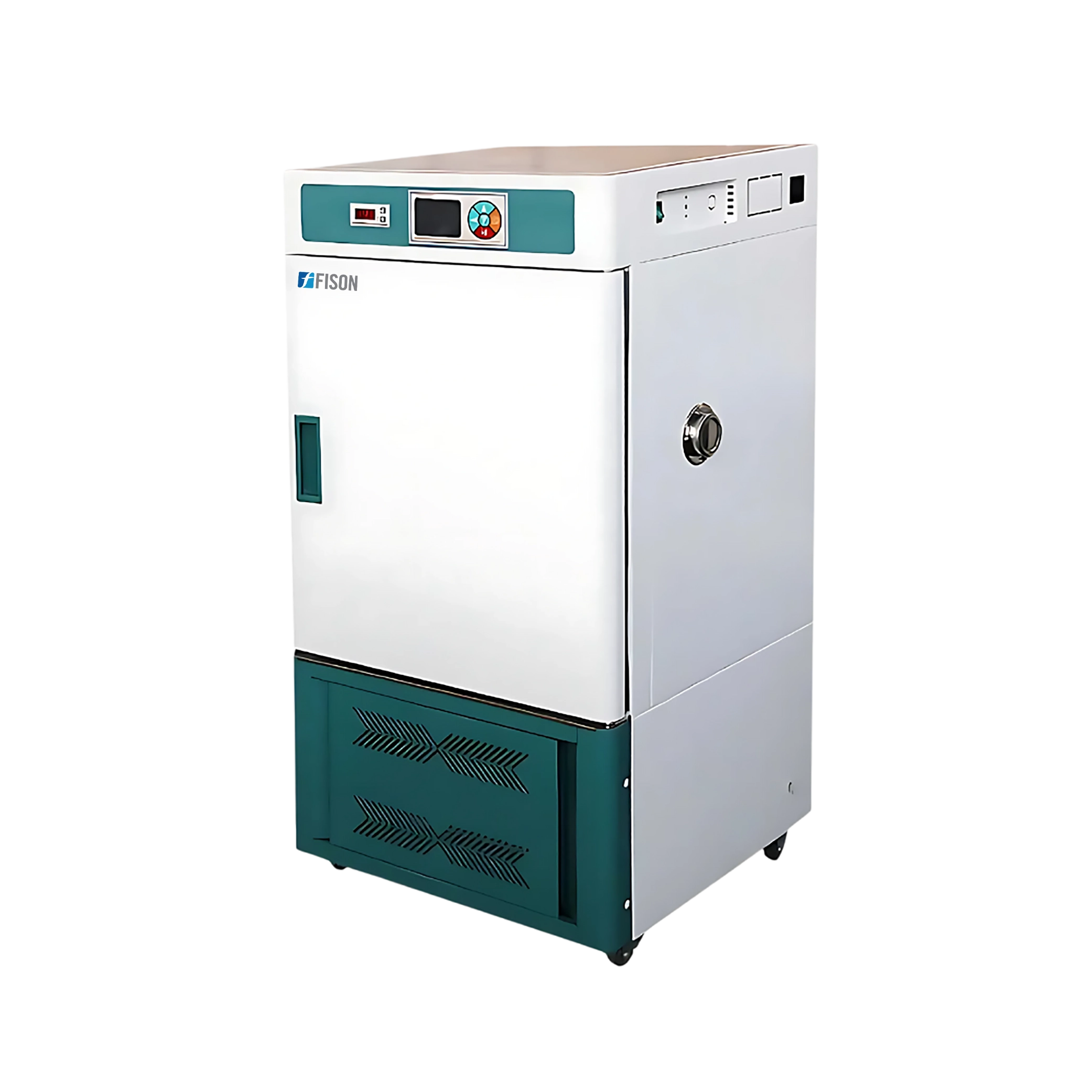

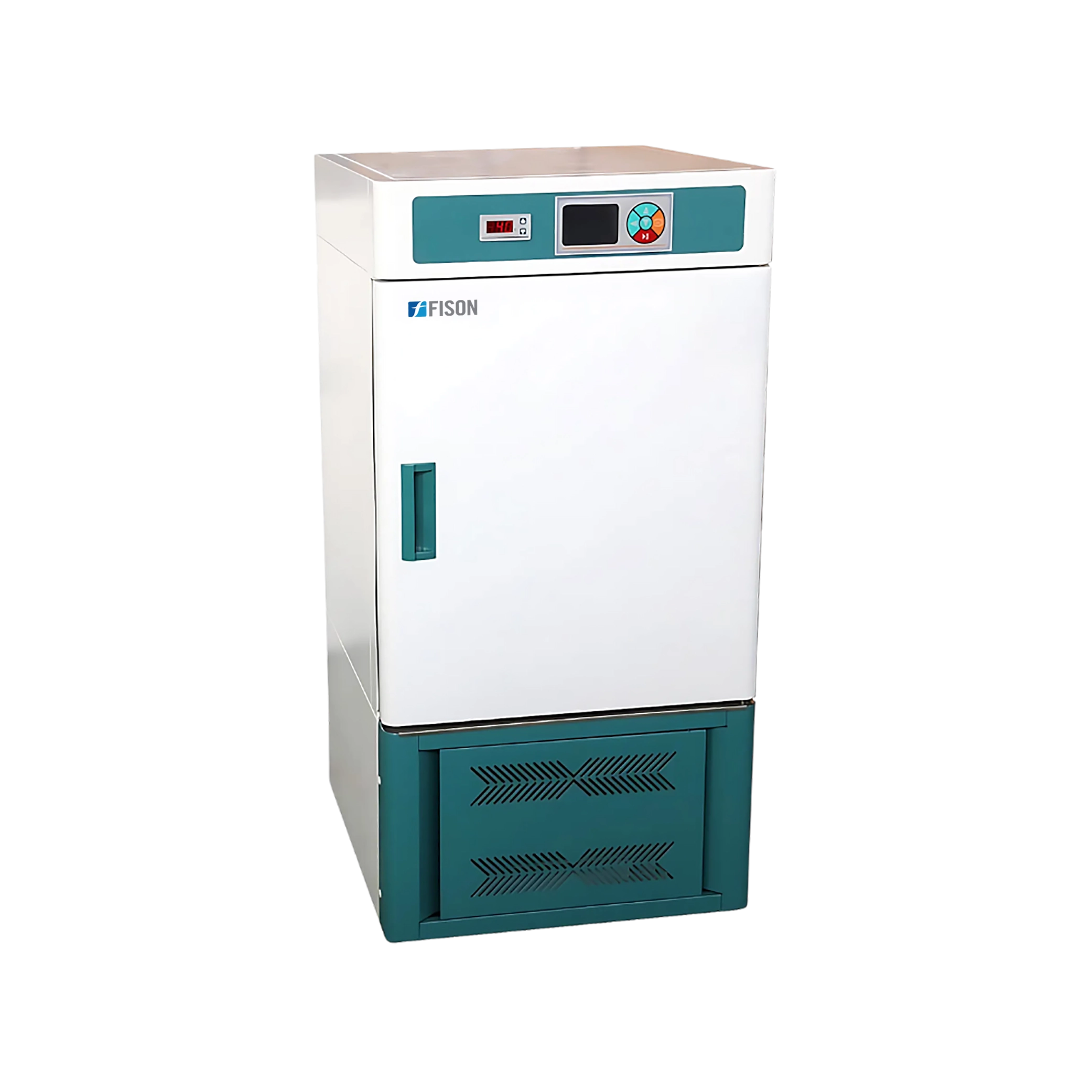

-10°C Cooling Incubator FM-COI-A100

-10°C Cooling Incubator FM-COI-A100

-10°C Cooling Incubator FM-COI-A100 is crafted for maintaining precise and controlled temperature conditions with a 30–stage programme. Features a unique internal wind circulation structure with efficient fan breeze circulation. Designed by a double door with high quality glass for easy sample observation. Our unit also offers double evaporators and automatic control intelligent defrosting, contributing to long-term performance .

Specifications

Capacity 150 L
Cycle Mode Forced Convection
Temperature Range -10 To 65 ℃
Temperature Resolution Ratio 0.1℃
Temperature Motion High Temperature: ± 0.5 ℃, Low Temperature: ± 1 ℃
Temperature Uniformity ± 1 ℃
Internal Chamber Mirror Stainless Steel
External Chamber Cold Rolling Steel Electrostatic Spraying Exterior
Insulation Layer Polyurethane
Heater Stainless Steel Heating Tube
Load Per Rack 15 Kg
Shelf Number 12
Shelf Space 35 mm
Power Rating 1.0 KW
Compressor Air-Cooled Hermetic Compressor
Cryogen R 134 A
Defrost Structure Double Evaporator Switching Defrosting
Test Hole 43 mm
Controlled External Power Supply Universal Socket (One) built-in waterproof Socket (One)
Display Color Screen LCD Program
Setting Mode Touch Button Setting Or Touch Screen Type
Temperature Display Mode Setting Measuring Temperature: LCD Upper Screen , Setting Temperature: The Lower Row
Timer 0 To 99.9 H × 30 Segment
Operation Function Program Operation
Sensor PT100
Additional Functions LED Light, Deviation Correction, Menu Key Lock, Power Failure Parameter Memory
Safety Device Over Temperature Alarm, Digital Temperature Limiter
Power Supply AC 220 V/ 3.6 A
Internal Chamber Dimension (W × L × H) 500 ×500 × 600 mm
Exterior Chamber Dimension (W × L × H) 660 ×760 × 1290 mm
Packing Dimension (W × L × H) 856 × 778 × 1458 mm
Net Weight 86 Kg
Gross Weight 114 Kg

Features

  • Operates through a color screen LCD program
  • Forced convection with a temperature range from -10°C to 65°C
  • Offers Mirror stainless steel inner chamber
  • Cold-rolling steel electrostatic spraying exterior
  • Polyurethane insulation layer and stainless steel heating tube
  • Air-cooled hermetic compressor using R134 a cryogen
  • Double evaporator switching defrosting mechanism
  • Safety features like an over-temperature alarm, and a digital temperature limiter

Applications

  • -10°C Cooling incubators are utilized across diverse sectors such as laboratories, environmental testing, water analysis, microbe culture for BOD/bacteria, plant breeding, and sample preservation.

Accessories

  • Accessories name Quantity
    Shelves 2

Accessories Optional

  • Spare shelf
    RS 485 interface
    Printer
    Remote control
    U- disk storage

Alternative Models Of Cooling Incubator

-10°C Cooling Incubator FM-COI-B100

  • Capacity: 250 L
  • Temperature controlling range: L: -10 °C to 65 °C, A: -20 °C to 65 °C
  • Temperature uniformity: ±2 °C
Catalog

Lighting Incubator

Fison Lighting incubators offer precise temperature control, ensuring stable conditions for optimal sample growth. They are equipped with even air circulation, maintaining consistent temperature distribution throughout the chamber. These units feature programmable settings for customized light cycles, temperature, and humidity. They include energy-efficient LED lighting, delivering uniform illumination with minimal heat generation. Our incubators provide various capacity options and ensure safe operation with alarms and overheat protection.

Lighting Incubator FM-LI-A100

  • Capacity : 250 L
  • Illumination type : 2-side illumination
  • Light source : Fluorescent lamp
Catalog

Lighting Incubator FM-LI-A101

  • Capacity : 402 L
  • Illumination type : 2-side illumination
  • Light source : Fluorescent lamp
Catalog
Lighting Incubator FM-LI-B100
  • Capacity : 800 L
  • Illumination type : 6-steps adjustable 3D illumination
  • Lighting illumination : 0 to 15000 lx
Catalog

Air Jacketed CO2 Incubator

Fison Air Jacketed CO? Incubators offer a stable and uniform environment with an advanced heating system. They feature a microcomputer-controlled system with a PID controller for precise regulation of multiple parameters. These units provide an LCD touch screen for easy monitoring. They include a tightly sealed inner door made of tempered safety glass for better insulation. They are equipped with water level and over-temperature alarms with audible and visual alerts for enhanced safety.

Air Jacketed CO2 Incubator FM-CIA-A100
  • Capacity : 50 L
  • Heating : Air jacket
  • Temperature range : RT +5 to 60°C
Catalog

Air Jacketed CO2 Incubator FM-CIA-A101

  • Capacity : 80 L
  • Heating : Air jacket
  • Temperature range : RT +5 to 60°C
Catalog

Air Jacketed CO2 Incubator FM-CIA-A102

  • Capacity : 160 L
  • Heating : Air jacket
  • Temperature range : RT +5 to 60°C
Catalog

Water Jacketed CO2 Incubator

Fison Water Jacketed CO? Incubators offer a stable and controlled environment for optimal cell culture. They feature a microprocessor PID controller for precise temperature and CO? regulation. These units are equipped with a water jacket system for consistent temperature stability and security. They provide an advanced filtration and sterilization system to maintain a contamination-free chamber. Our incubators deliver a well-insulated chamber with a tightly sealed door and durable construction for long-term reliability.

Water Jacketed CO<sub>2</sub> Incubator FM-CIW-A100
  • Capacity : 80 L
  • Heating : Water jacket
  • Temperature range : RT +5 to 60°C
Catalog
Water Jacketed CO<sub>2</sub> Incubator FM-CIW-A101
  • Capacity : 160 L
  • Heating : Water jacket
  • Temperature range : RT +5 to 60°C
Catalog

Benchtop Shaking Incubator

Fison Benchtop Shaking Incubator provides precise temperature settings to maintain a stable and controlled environment for optimal growth and incubation of cultures. They are equipped with adjustable shaking speeds, ensuring customized agitation for various applications. Their fans promote uniform air circulation, for heat and shaking are evenly distributed. These automatically adjust or stop shaking to protect the motor from overload. The low-vibration design ensures smooth operation without disruptions. Our Benchtop Shaking Incubator allows easy integration with data logging for continuous monitoring.

Benchtop Shaking Incubator FM-SI-A100

  • Chamber capacity : 20 L
  • Rotating speed range : 30 to 300 rpm
  • Speed accuracy : ± 1 rpm
Catalog

Benchtop Shaking Incubator FM-SI-A101

  • Chamber capacity : 51 L
  • Rotating speed range : 30 to 400 rpm
  • Speed accuracy : ± 1 rpm
Catalog
Benchtop Shaking Incubator FM-SI-A102
  • Chamber capacity : 70 L
  • Rotating speed range : 30 to 400 rpm
  • Speed accuracy : ± 1 rpm
Catalog

Biochemical Incubator

Fison Biochemical Incubators offer a stable and controlled environment for the incubation of biological samples. They feature precise temperature control to ensure uniform conditions for optimal sample growth and preservation. These units are equipped with a user-friendly interface allowing easy temperature adjustment and monitoring. They include internal illumination to allow sample observation without disrupting incubation conditions. Our incubators provide durable construction with corrosion-resistant materials for long-term reliability.

Biochemical Incubator FM-BCI-A100
  • Capacity : 70 L
  • Temperature range : 0 to 60°C
  • Accuracy : ± 0.5°C
Catalog

Biochemical Incubator FM-BCI-A101

  • Capacity : 100 L
  • Temperature range : 0 to 60°C
  • Accuracy : ± 0.5°C
Catalog

Biochemical Incubator FM-BCI-A102

  • Capacity : 150 L
  • Temperature range : 0 to 60°C
  • Accuracy : ± 0.5°C
Catalog
