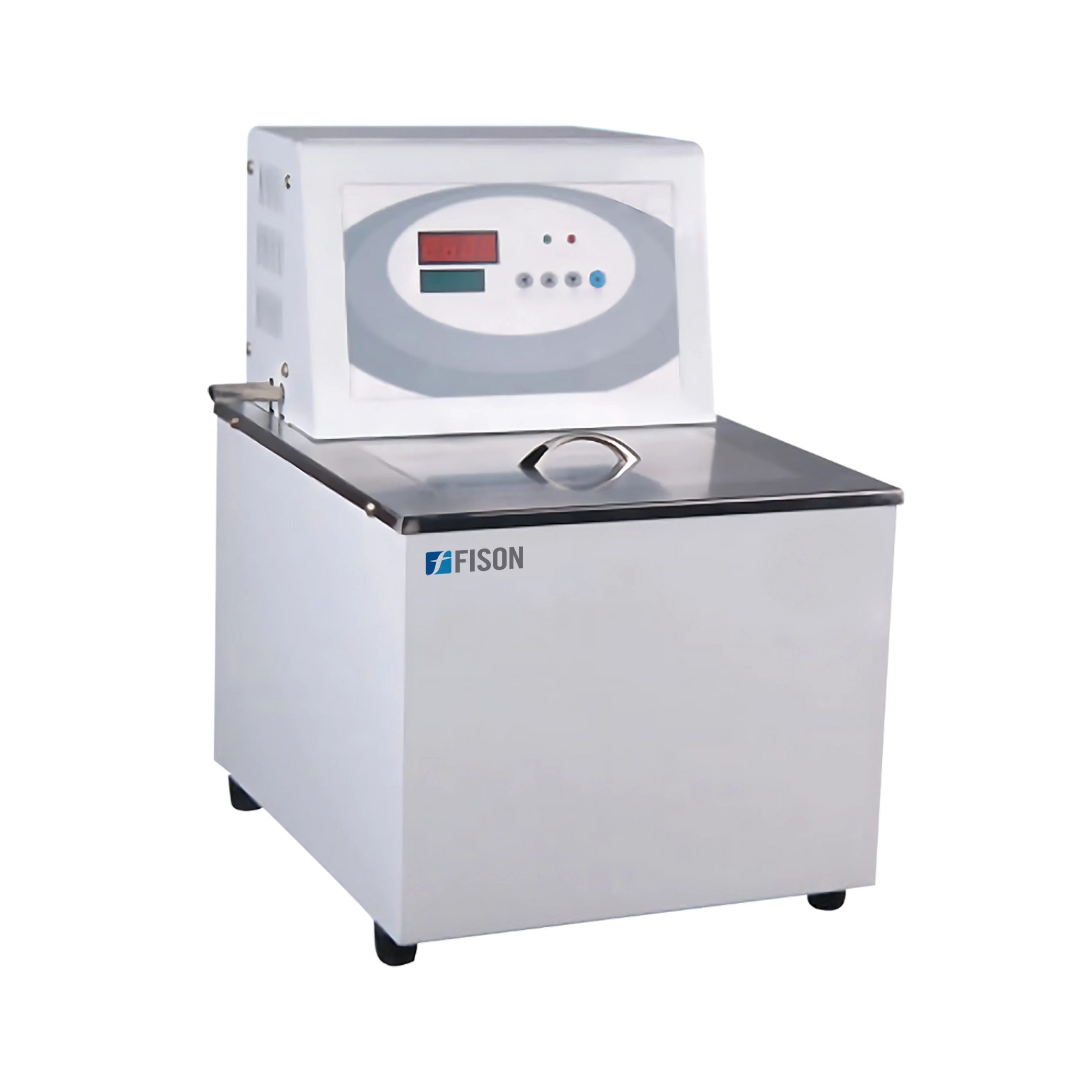

Constant Temperature Water Oil Bath FM-CTB-A102
Constant Temperature Water Oil Bath FM-CTB-A102 is equipped with microprocessor intelligent control system and dual window two color LED display. The circulating pump allows the heated liquid to flow of from tank and establish constant temperature field. It comes with internal cycle pump flow. Designed with 14.4 L capacity and ambient + 5°C to 200°C temperature range. Used in research institutes, universities, corporate quality control departments and industrial sectors relating to petroleum, chemical engineering, electronic instruments, physics, chemistry, bio-engineering, medicine, health, life science, light industry and food, materials testing and chemical analysis etc.
Specifications
| Capacity | 14.4 L |
| Temperature range | Ambient + 5°C to 200°C |
| Temperature stability | Water: ± 0.1, Oil: ± 0.2 |
| Display resolution | 0.1 mm/ 0.01mm |
| Display | Dual color LED display |
| Pump flow | Internal Cycle |
| Top lid dimension | 235 × 160 mm |
| Drain | No |
| Chamber material | SUS304 Stainless steel |
| Internal dimension | 300 × 240 × 200 mm |
| Packaging dimension | 670 × 470 × 510 mm |
| Net weight | 12.84 kg |
Features
- Dual window two color LED display
- Recycle pump system ensure steady and constant temperature
- Microprocessor intelligent control system
- Stainless steel chamber
- Measurement of deviation temperature
- Top opening lid with ergonomic handle
- Display resolution 0.1mm/0.01 mm
- Equipped with ultra-temperature alarm system
Applications
- Used in research institutes, universities, corporate quality control departments and industrial sectors relating to petroleum, chemical engineering, electronic instruments, physics, chemistry, bio-engineering, medicine, health, life science, light industry and food, materials testing and chemical analysis etc.
