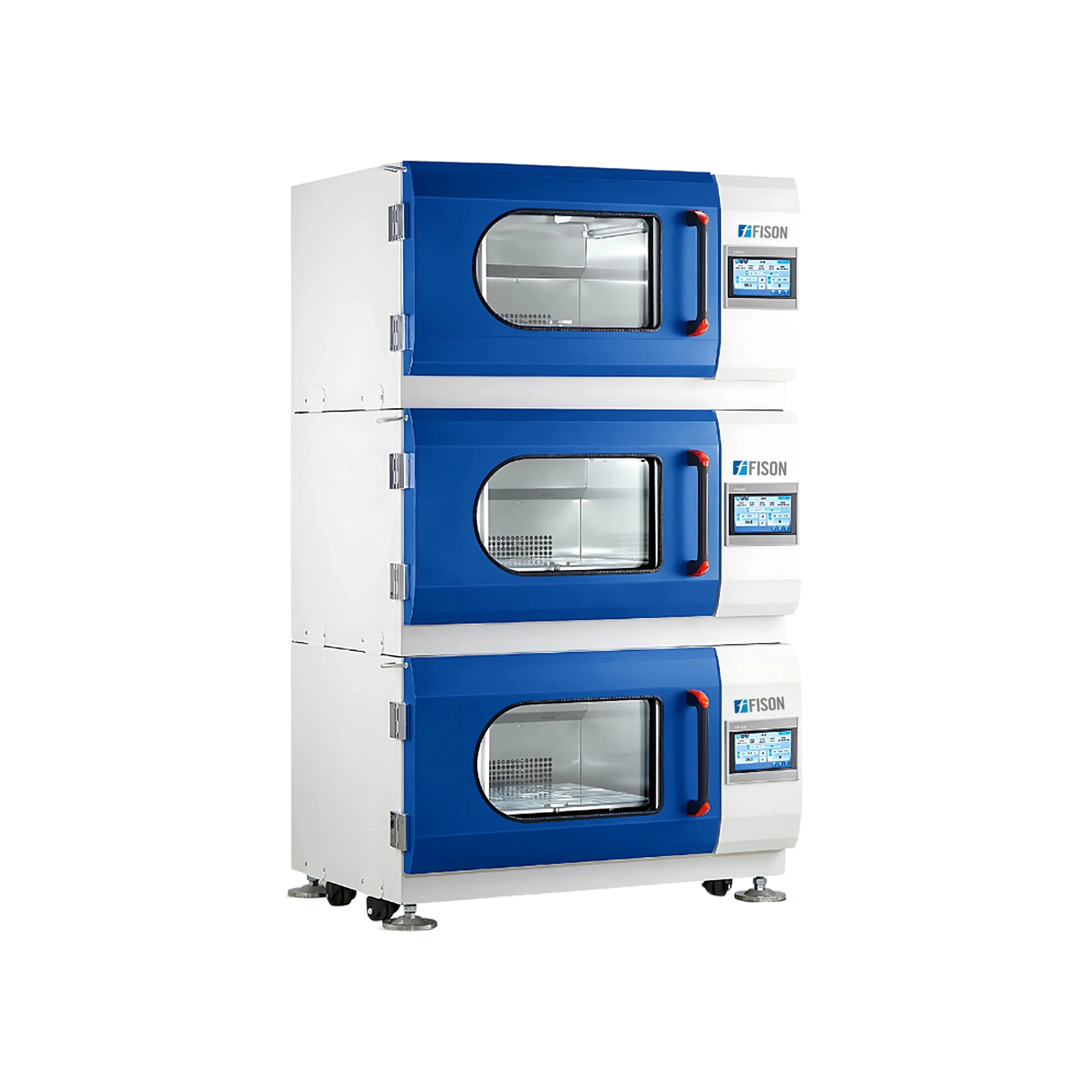

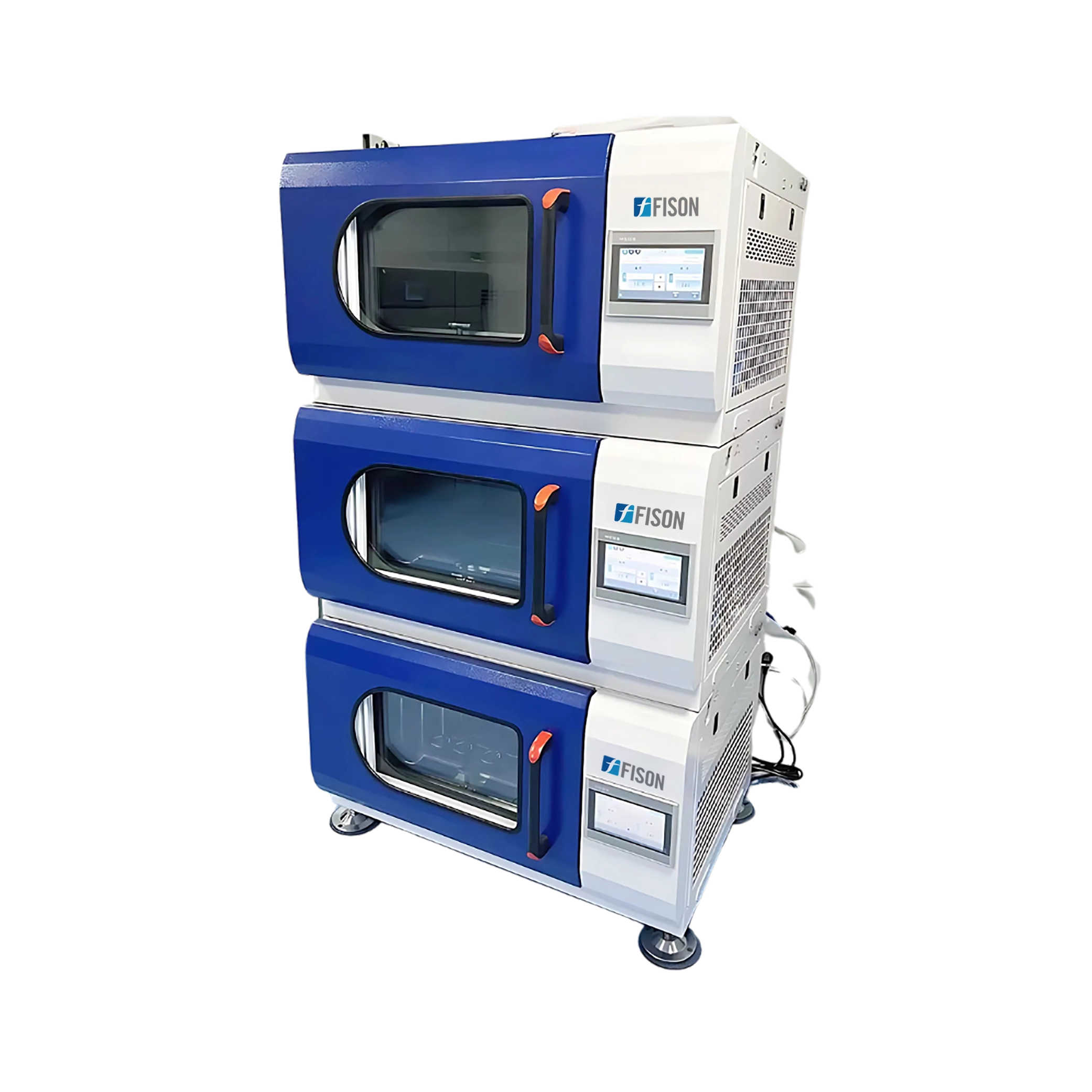

CO2 Shaking Incubator FM-CSI-A104

CO2 Shaking Incubator FM-CSI-A104

CO2 Shaking Incubator FM-CSI-A104 has a precise temperature distribution of ±0.3 °C at 37 °C, optimal conditions for sensitive cell cultures. It features uniform temperature distribution for consistent results across all samples. This water-resistant design enhances durability and is ideal for lab environments. Our incubator ensures a smooth, vibration-free startup, protecting delicate cultures from disturbances.

  •  Independent Stack Operation
  •  Optimized PID Control
  •  Anti-Temperature Overshoot
  •  Automatic Power Recovery
  •  Safe Door Interlock System

Volume 160 L
Rotation Speed 2 to 300 rpm
Speed Control Accuracy ±1 rpm
Shaking Throw 50 mm
Shaking Motion Orbital
Ambient Temperature 5 to 35°C
Temperature Control Range 4 to 60°C
Temperature Display Resolution 0.1°C
Temperature Distribution ±0.3°C at 37°C
Temperature Sensor Principle Pt-100
Maximum Loading Capacity 35 Kg
Temperature Control Mode PID control mode
Sterilization Method UV sterilization
CO2 Sensor Principle Infrared (IR)
CO2 Control Range 0 to 20 %
CO2 Display Resolution 0.001
CO2 Supply Pressure 0.05 to 0.1 Mpa
Data Export Interface USB
Historical Data Storage 800,000 messages
Timer 0 to 999 hours
Illumination Fluorescent tube, 30 W
Maximum Power Consumption 1300 W
Power Supply 115/230 V ±10%, 50/60 Hz
Tray Size 288 × 404 mm
Maximum Working Height 340 mm
Tray Capacity of Micro Titer Plates 32 (24, 48 and 96 well plate)
Dimensions (W × D × H) 1000 × 725 × 620 mm (1 unit) 1000 × 725 × 1170 mm (2 units) 1000 × 725 × 1720 mm (3 units)
Internal Dimensions (W × D × H) 720 × 632 × 475 mm
Weight 155 Kg

CO2 Shaking Incubator FM-CSI-A104 offers precise control of temperature, CO2, and humidity with UV sterilization, ensuring contamination-free cultures. Their stackable design and built-in shaker optimize space and efficiency for cell biology and microbiology labs.

Removable Shake Tray


125 mL Flask Clamp
250 mL Flask Clamp
500 mL Flask Clamp
1000 mL Flask Clamp
2000 mL Flask Clamp
Adjustable Angle Test Tube Rack (50 mL×15; 15 mL×28)
Adjustable Angle Test Tube Rack (15 mL×60)
Adjustable Angle Test Tube Rack (50 mL×30)
