- ✔ Password Screen Lock
- ✔ Enlarged Digital Display
- ✔ Real-Time Data Monitoring
- ✔ Optional Sliding Black Window
- ✔ User-friendly Operation Interface
| Volume |
315 L |
| Rotation Speed |
2 to 300 rpm |
| Speed Control Accuracy |
±1 rpm |
| Shaking Throw |
50 mm |
| Shaking Motion |
Orbital |
| Ambient Temperature |
5 to 35°C |
| Temperature Control Range |
4 to 60°C |
| Temperature Display Resolution |
0.1°C |
| Temperature Distribution |
±0.3°C at 37°C |
| Temperature Sensor Principle |
Pt-100 |
| Maximum Loading Capacity |
50 Kg |
| Temperature Control Mode |
PID control mode |
| Sterilization Method |
UV sterilization |
| CO2 Sensor Principle |
Infrared (IR) |
| CO2 Control Range |
0 to 20 % |
| CO2 Display Resolution |
0.001 |
| CO2 Supply Pressure |
0.05 to 0.1 Mpa |
| Data Export Interface |
USB |
| Historical Data Storage |
800,000 messages |
| Timer |
0 to 999 hours |
| Illumination |
Fluorescent tube, 30 W |
| Maximum Power Consumption |
1300 W |
| Power Supply |
115/230 V ±10%, 50/60 Hz |
| Tray Size |
520 × 880 mm |
| Maximum Working Height |
340 mm |
| Tray Capacity (Shake Flask) |
60 × 250 ml, 40 × 500 ml, 24 × 1000 ml, 15 × 2000 ml, 15 × 3000 ml, or 8 × 5000 ml |
| Dimensions (W × D × H) |
1330 × 820 × 620 mm (1 unit)
1330 × 820 × 1170 mm (2 units)
1330 × 820 × 1720 mm (3 units) |
| Internal Dimensions (W × D × H) |
1050 × 730 × 475 mm |
| Weight |
220 Kg |

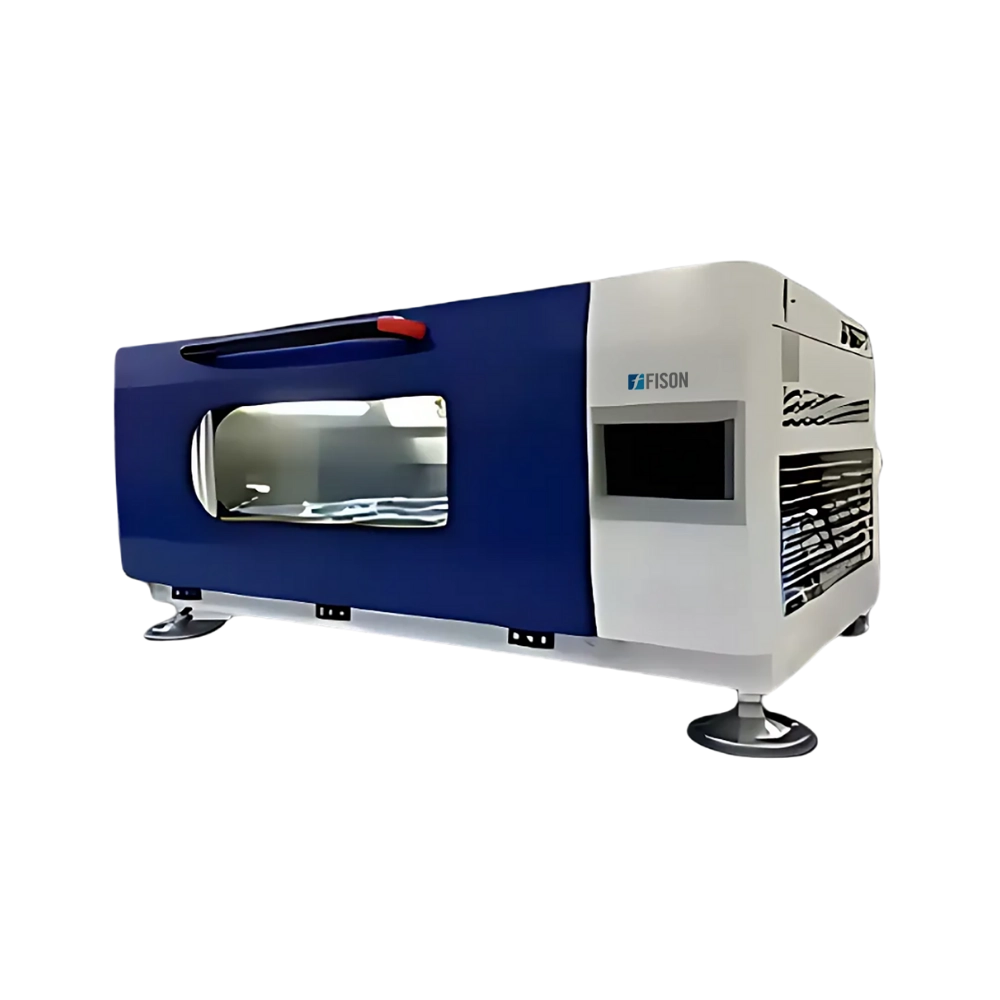

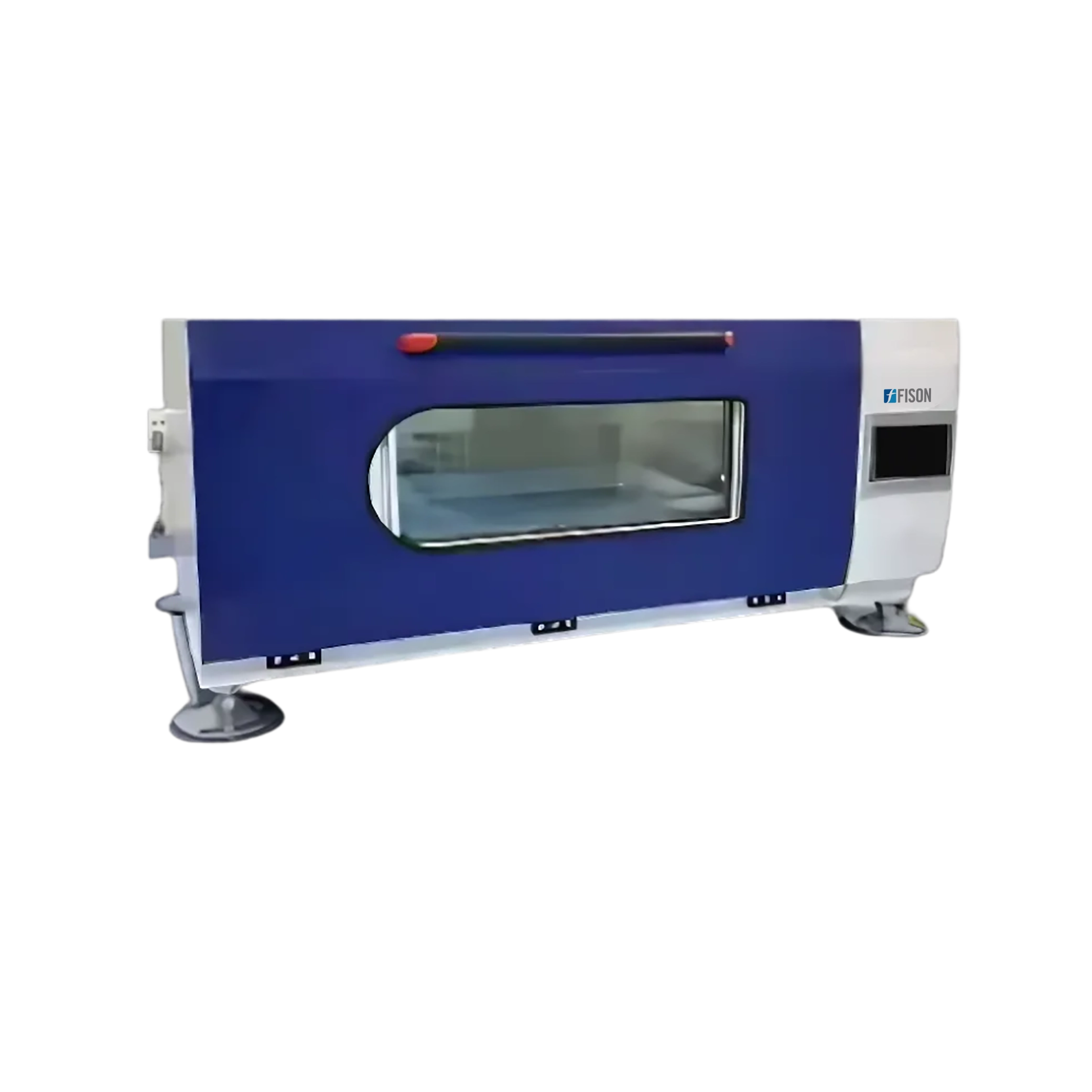

CO2 Shaking Incubator FM-CSI-A100 offers precise control of temperature, CO2, and humidity with UV sterilization, ensuring contamination-free cultures. Their stackable design and built-in shaker optimize space and efficiency for cell biology and microbiology labs.
Removable Shake Tray
125 mL Flask Clamp
250 mL Flask Clamp
500 mL Flask Clamp
1000 mL Flask Clamp
2000 mL Flask Clamp
Adjustable Angle Test Tube Rack (50 mL×15; 15 mL×28)
Adjustable Angle Test Tube Rack (15 mL×60)
Adjustable Angle Test Tube Rack (50 mL×30)
