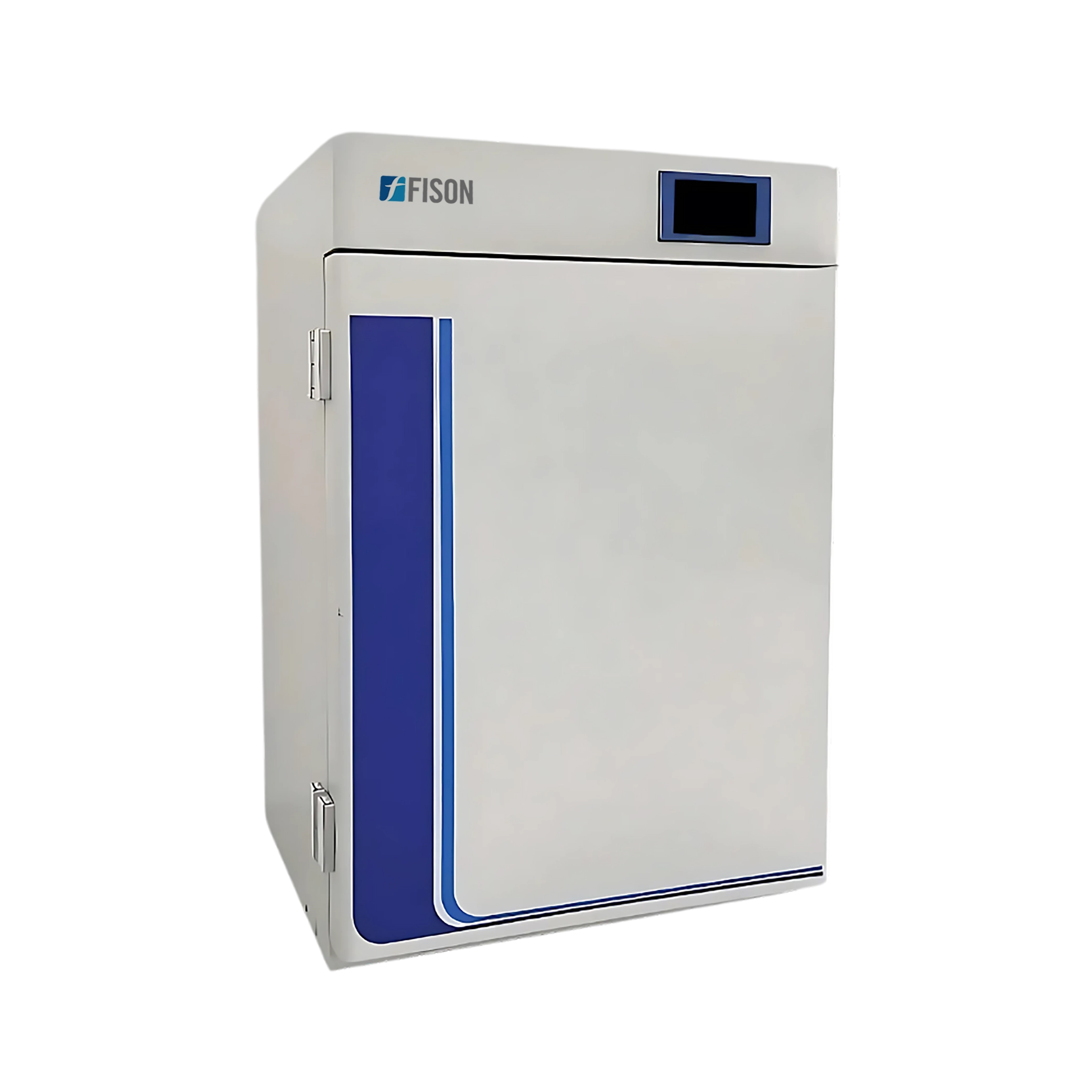

CO2 Incubator FM-CIN-A108

CO2 Incubator FM-CIN-A108

CO2 Incubator FM-CIN-A108 has temperature field uniformity with an accuracy of ±0.2 °C at 37 °C to ensure optimal cell culture conditions. This displays an instant run curve for real-time monitoring and tracking incubation parameters. This incubator comes with convenient screen positioning for enhanced accessibility and user comfort. Our incubator has a sensitive capacitive touch response, providing a smooth and intuitive interface for effortless control and adjustments.

  •  Easy data monitoring
  •  Original data traceability
  •  Secure, unchangeable records
  •  Remote monitoring support
  •  Sensitive application performance

Volume 85 L
Temperature Control Range Ambient +5 to 60°C
Temperature Display Resolution 0.1°C
Temperature Stability ±0.1°C
Temperature Field Uniformity ±0.3°C at 37°C
Timing Function 0 to 999.9 hours
CO2 Measurement Principle Infrared (IR) Detection
CO2 Control Range 0 to 20 %
CO2 Display Resolution 0.001
CO2 Supply 0.05 to 0.1 Mpa
Relative Humidity Ambient Humidity ~95% at 37°C
HEPA Filtration ISO 5 Level, 5 Minutes
Sterilization Method 180°C High heat sterilization
Temperature Recovery Time ≤10 min
CO2 Concentration Recovery Time ≤5 min
Historical Data Storage 250,000 Messages
Scalability Up to 2 Units can be Stacked
Working Environment Temperature 18 to 30°C
Maximum Power 500 W
Power Supply 115 / 230 V ± 10 %, 50 / 60 Hz
Internal Dimensions (L × W × H) 440 × 400 × 500 mm
External Dimensions (L × W × H) 560 × 530 × 825 mm
Net Weight 78 Kg
Gross Weight 98 Kg

CO2 Incubator FM-CIN-A108 maintains ideal conditions for cell cultures by controlling temperature, humidity, and CO2 levels. Its high heat sterilization function eliminates contaminants for research in areas like cell biology and tissue engineering.

Humidity Pan


Sealing Strip
HEPA Filter
Access Port Filter
CO2 Sensor
5-inch Touch Screen Interface
Solenoid Valve Control System
