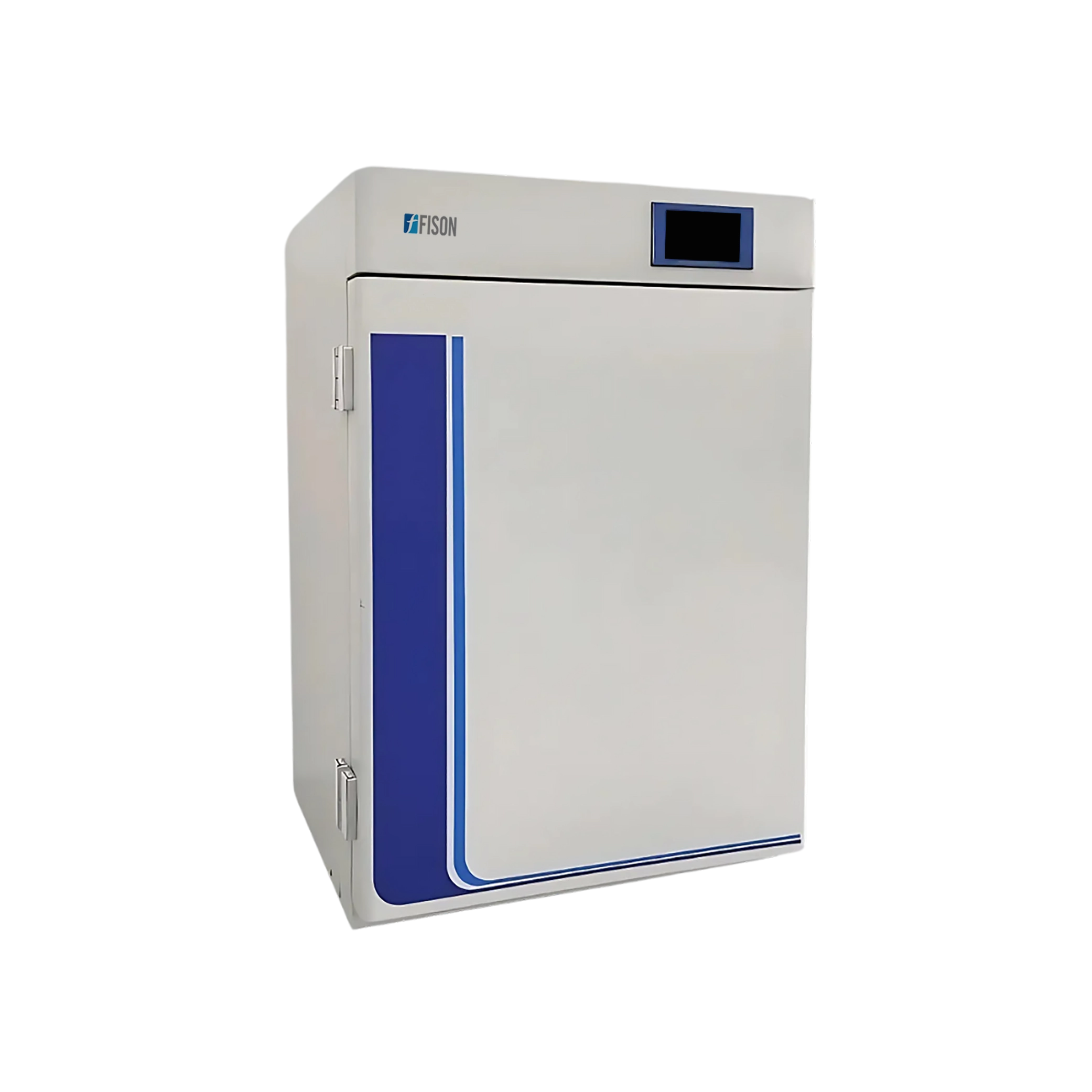

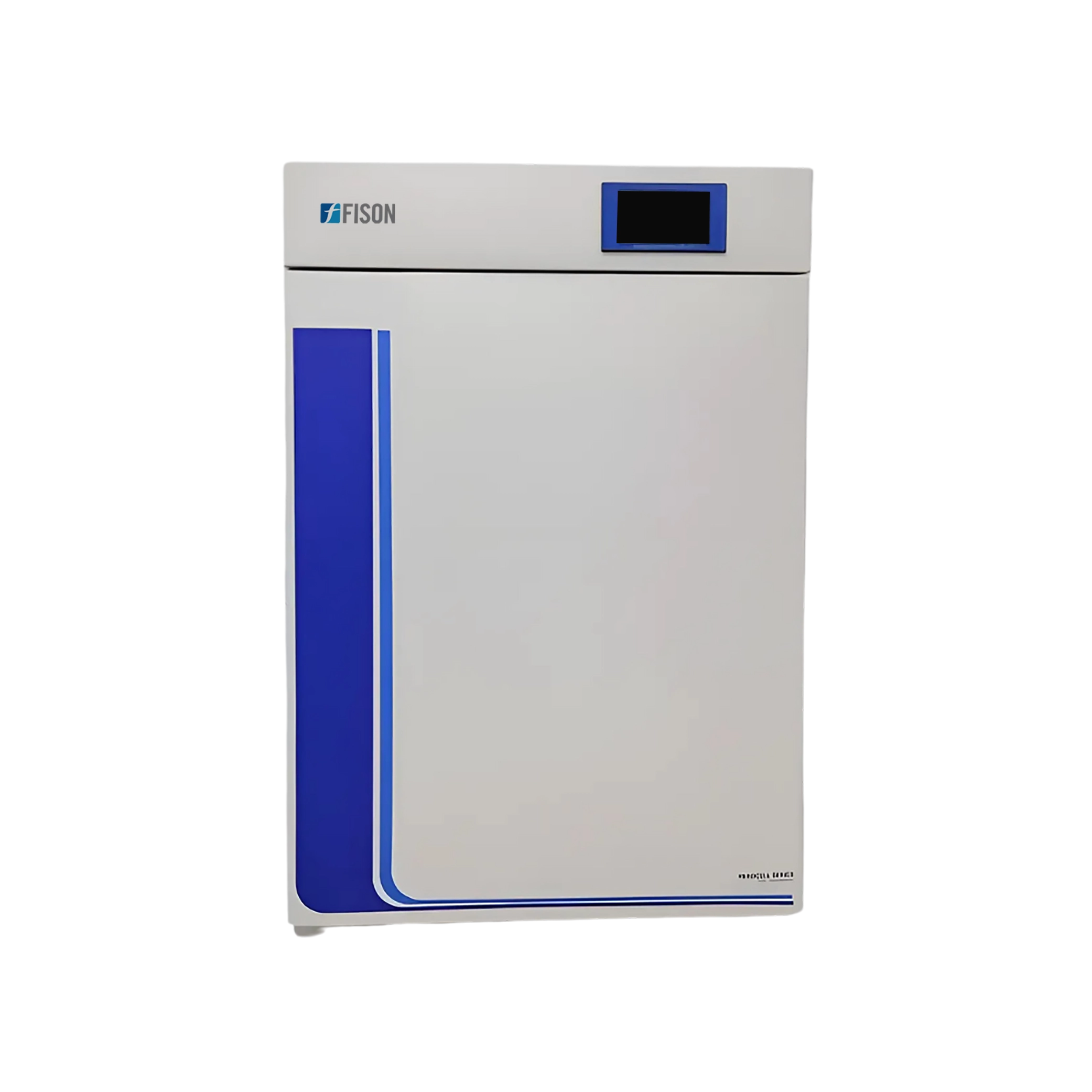

CO2 Incubator FM-CIN-A105

CO2 Incubator FM-CIN-A105

CO2 Incubator FM-CIN-A105 is equipped with ISO Class 5 HEPA filtration that maintains ultra-clean air quality, crucial for sensitive cultures. This features a Mycoplasma-free cavity surface to minimize contamination risks, ensuring a sterile environment. The incubator has quick air quality recovery and restores stable environmental conditions. Our incubator has IR CO2 monitoring, providing accurate and continuous CO2 level control for precise regulation.

  •  Stable CO2 readings
  •  Ideal for frequent access
  •  Accurate under high humidity
  •  Continuous air filtration protection
  •  Over temperature protection sensor

Volume 85 L
Temperature Control Range Ambient +5 to 60°C
Temperature Display Resolution 0.1°C
Temperature Stability ±0.1°C
Temperature Field Uniformity ±0.3°C at 37°C
Timing Function 0 to 999.9 hours
CO2 Measurement Principle Infrared (IR) Detection
CO2 Control Range 0 to 20 %
CO2 Display Resolution 0.001
CO2 Supply 0.05 to 0.1 Mpa
Relative Humidity Ambient Humidity ~95% at 37°C
HEPA Filtration ISO 5 Level, 5 Minutes
Sterilization Method 140°C High heat sterilization
Temperature Recovery Time ≤10 min
CO2 Concentration Recovery Time ≤5 min
Historical Data Storage 250,000 Messages
Scalability Up to 2 Units can be Stacked
Working Environment Temperature 18 to 30°C
Maximum Power 500 W
Power Supply 115 / 230 V ± 10 %, 50 / 60 Hz
Internal Dimensions (L × W × H) 674 × 526 × 675 mm
External Dimensions (L × W × H) 800 × 652 × 1000 mm
Net Weight 78 Kg
Gross Weight 98 Kg

CO2 Incubator FM-CIN-A105 maintains ideal conditions for cell cultures by controlling temperature, humidity, and CO2 levels. Its high heat sterilization function eliminates contaminants for research in areas like cell biology and tissue engineering.

Humidity Pan


Sealing Strip
HEPA Filter
Access Port Filter
CO2 Sensor
5-inch Touch Screen Interface
Solenoid Valve Control System
