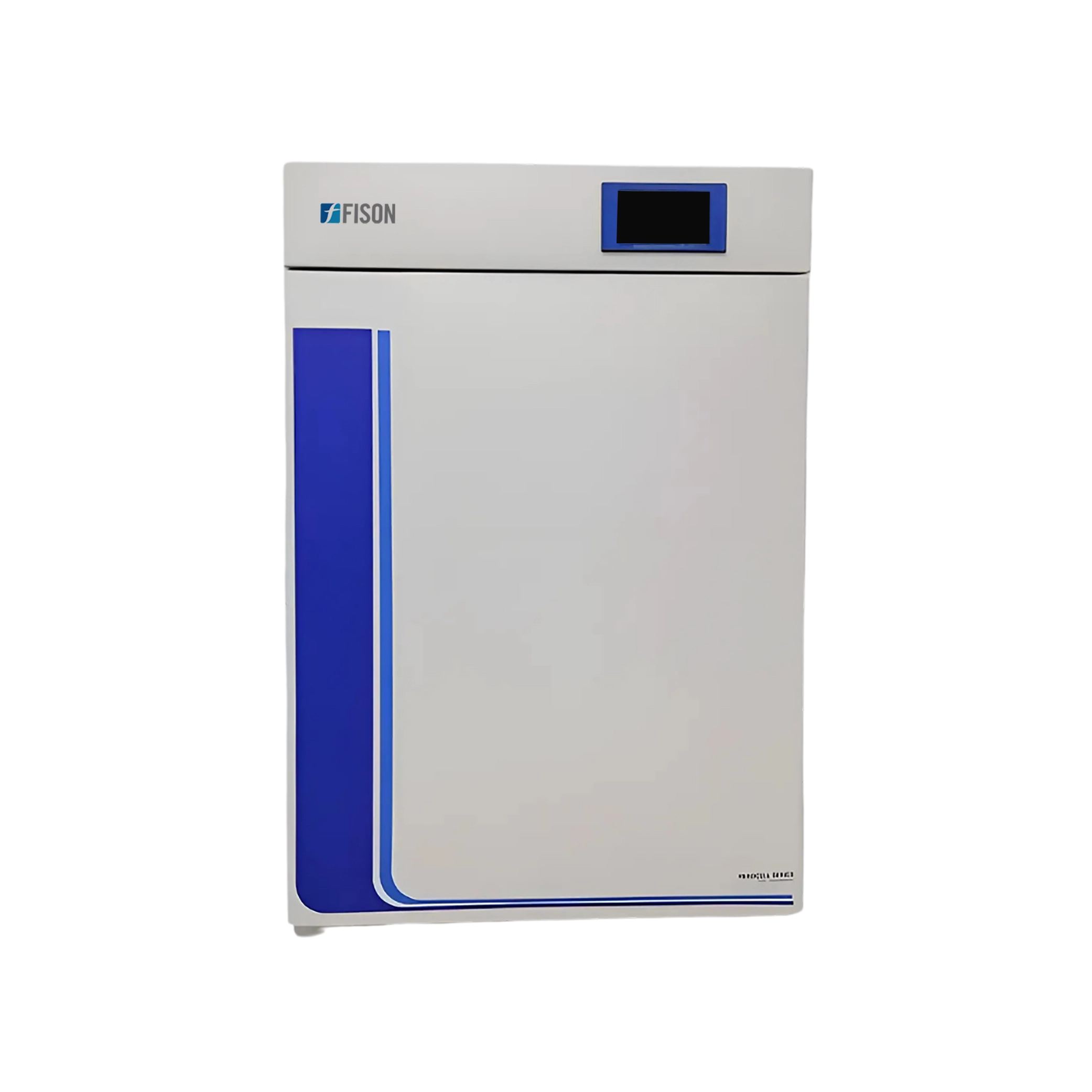

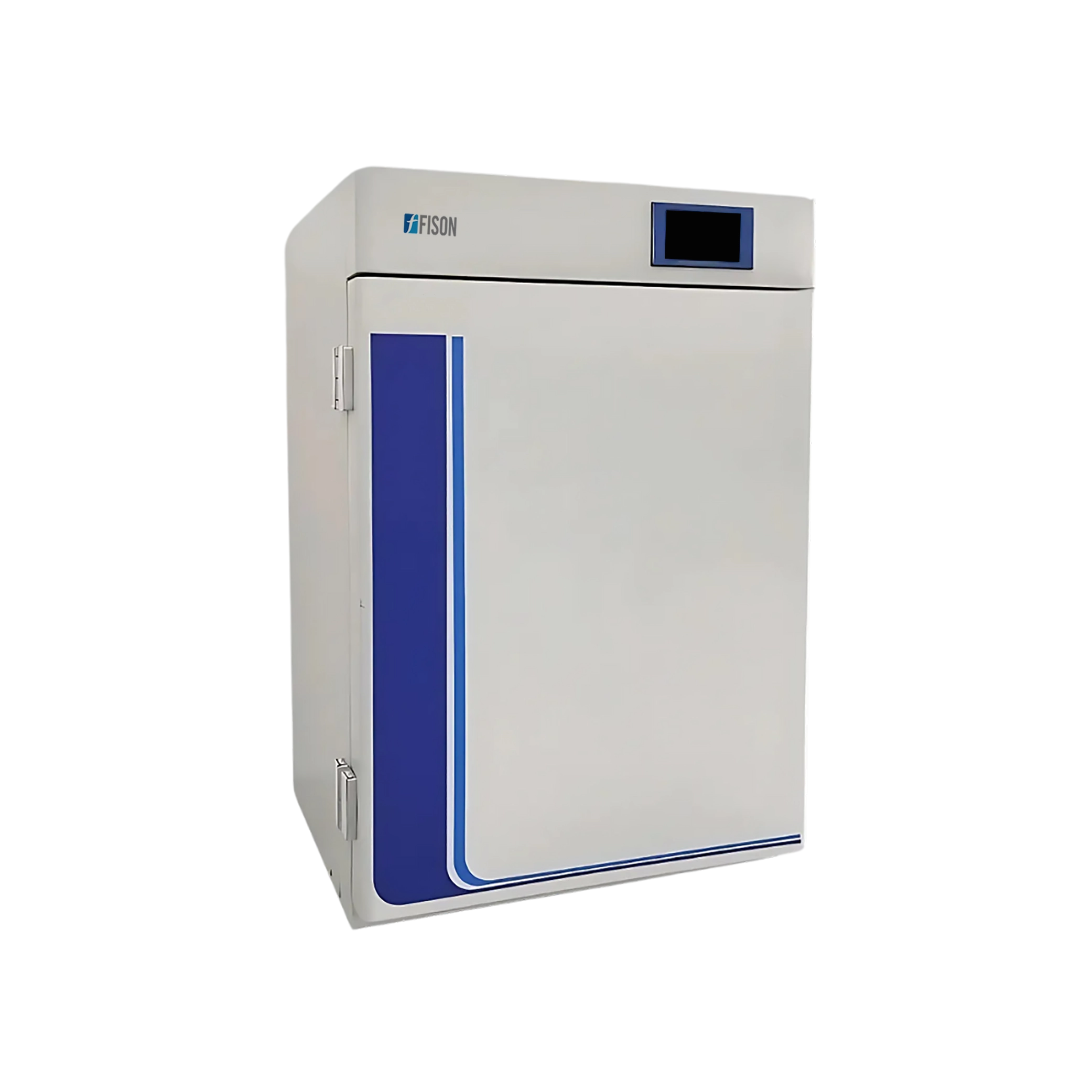

CO2 Incubator FM-CIN-A103

CO2 Incubator FM-CIN-A103

CO2 Incubator FM-CIN-A103 offers 248 L volume, ensuring optimal conditions for biological samples. This efficient handling incubator offers precise temperature control and a stable environment for cell culture. Their durable stainless steel shelves ensure secure sample storage. Our incubator is ideal for high-throughput laboratories, ensures reliability in every application.

  •  High heat sterilization
  •  Low condensation level
  •  Uniform cell culture environment
  •  Efficient bacteria-free sterilization
  •  Condensation-free cell environment

Volume 248 L
Temperature Control Range Ambient +5 to 60°C
Temperature Display Resolution 0.1°C
Temperature Stability ±0.1°C
Temperature Field Uniformity ±0.3°C at 37°C
Timing Function 0 to 999.9 hours
CO2 Measurement Principle Infrared (IR) Detection
CO2 Control Range 0 to 20 %
CO2 Display Resolution 0.001
CO2 Supply 0.05 to 0.1 Mpa
Relative Humidity Ambient Humidity ~95% at 37°C
HEPA Filtration ISO 5 Level, 5 Minutes
Sterilization Method 140°C High heat sterilization
Temperature Recovery Time ≤10 min
CO2 Concentration Recovery Time ≤5 min
Historical Data Storage 250,000 Messages
Scalability Up to 2 Units can be Stacked
Working Environment Temperature 18 to 30°C
Maximum Power 1000 W
Power Supply 115 / 230 V ± 10 %, 50 / 60 Hz
Internal Dimensions (L × W × H) 674 × 526 × 675 mm
External Dimensions (L × W × H) 800 × 652 × 1000 mm
Net Weight 132 Kg
Gross Weight 160 Kg

CO2 Incubator FM-CIN-A103 maintains ideal conditions for cell cultures by controlling temperature, humidity, and CO2 levels. Its high heat sterilization function eliminates contaminants for research in areas like cell biology and tissue engineering.

Humidity Pan


Sealing Strip
HEPA Filter
Access Port Filter
CO2 Sensor
5-inch Touch Screen Interface
Solenoid Valve Control System
