CO2 Incubator FM-CIN-A102

CO2 Incubator FM-CIN-A102

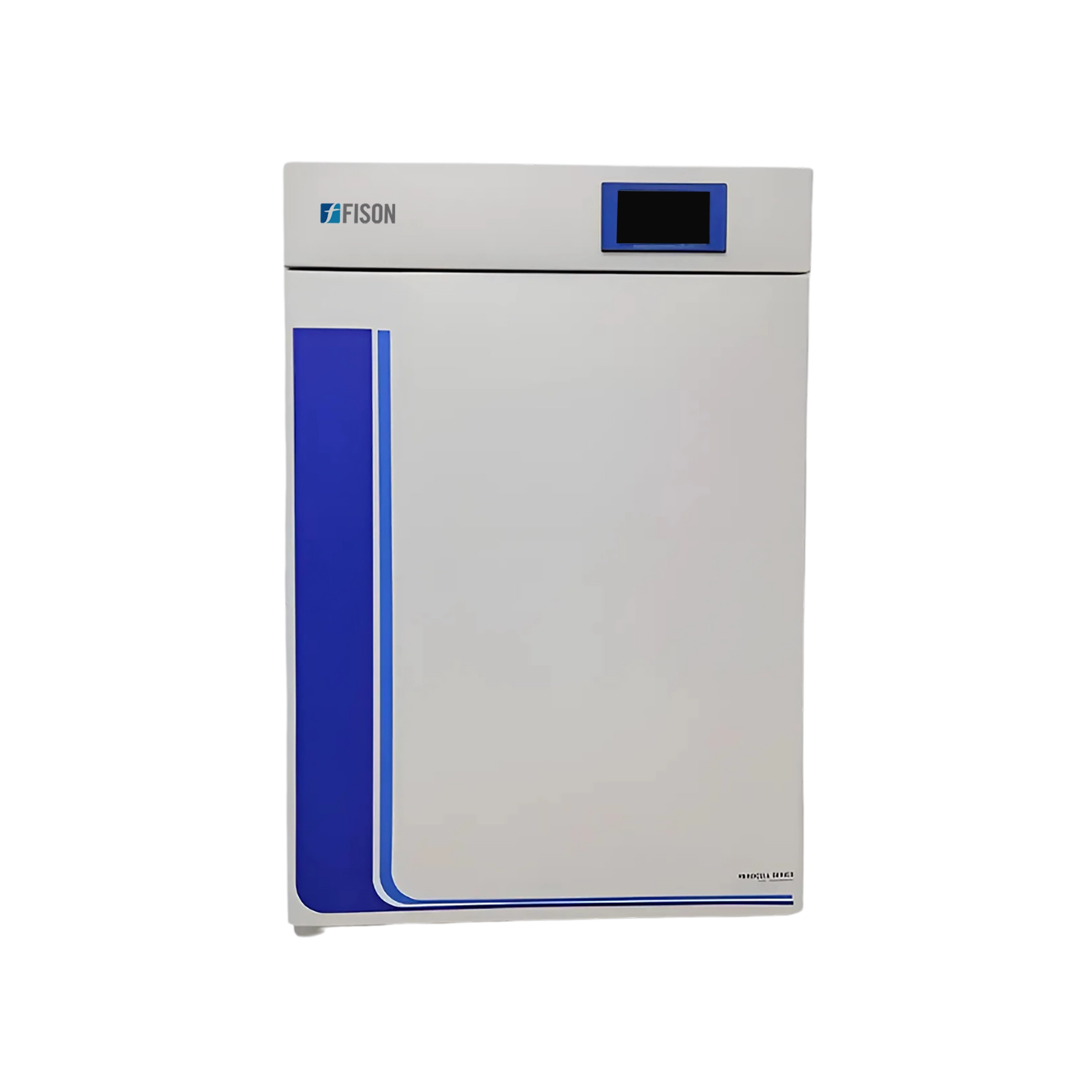

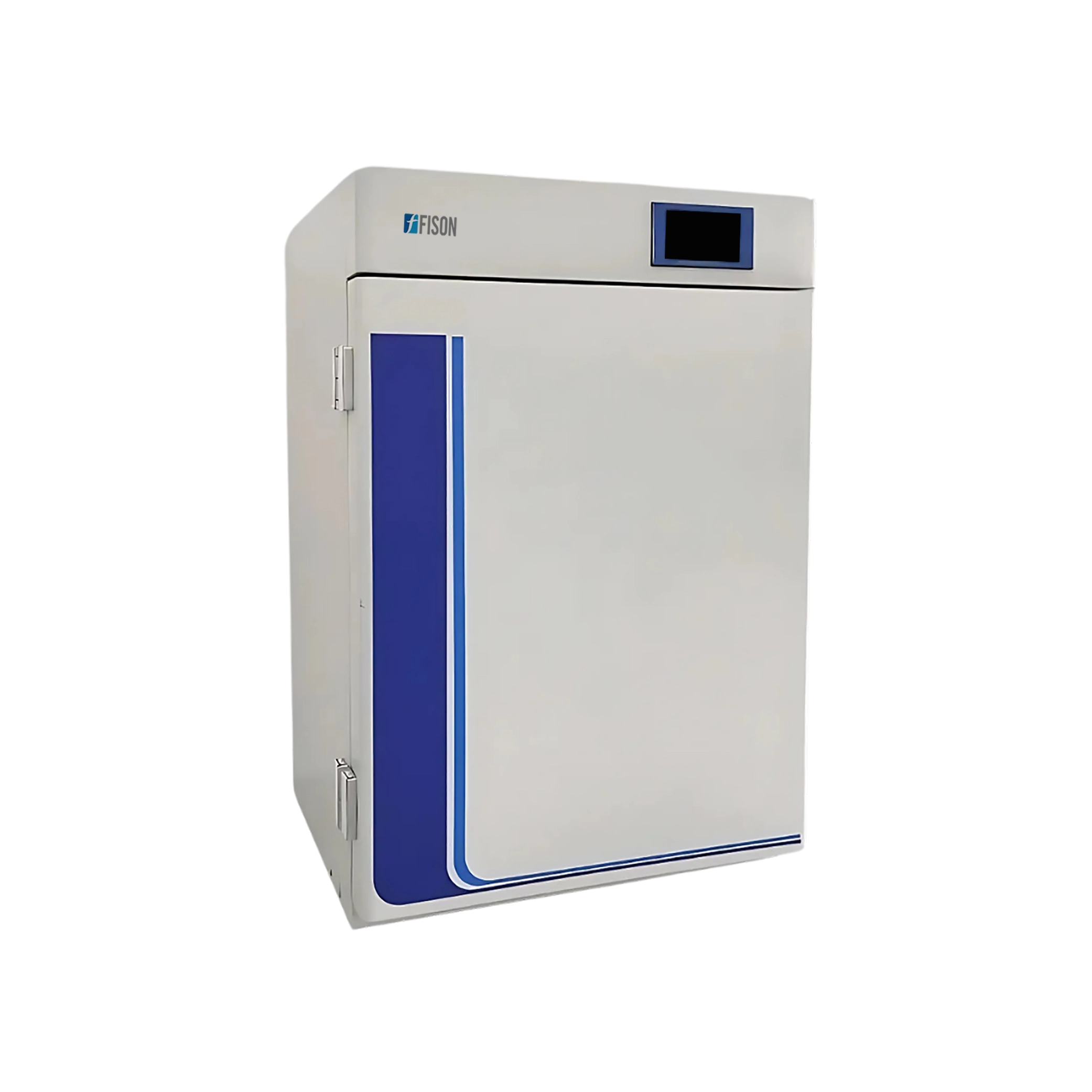

CO2 Incubator FM-CIN-A102 is an advanced 85-liter high-performance unit to control temperature, humidity, and CO2 levels. The high-heat sterilization function ensures effective decontamination and maintains a sterile environment. Its exceptional temperature and CO2 regulation provide a stable and reliable incubating environment. Our incubator features a humidity reservoir ideal for maintaining optimal conditions for sensitive cell cultures.

  •  Tool-free shelf removal
  •  Stainless steel water pan
  •  Large water capacity
  •  High humidity level
  •  Turbulence-free ventilation

Volume 85 L
Temperature Control Range Ambient +5 to 60°C
Temperature Display Resolution 0.1°C
Temperature Stability ±0.1°C
Temperature Field Uniformity ±0.3°C at 37°C
Timing Function 0 to 999.9 hours
CO2 Measurement Principle Infrared (IR) Detection
CO2 Control Range 0 to 20 %
CO2 Display Resolution 0.001
CO2 Supply 0.05 to 0.1 Mpa
Relative Humidity Ambient Humidity ~95% at 37°C
HEPA Filtration ISO 5 Level, 5 Minutes
Sterilization Method 140°C High heat sterilization
Temperature Recovery Time ≤10 min
CO2 Concentration Recovery Time ≤5 min
Historical Data Storage 250,000 Messages
Scalability Up to 2 Units can be Stacked
Working Environment Temperature 18 to 30°C
Maximum Power 500 W
Power Supply 115 / 230 V ± 10 %, 50 / 60 Hz
Internal Dimensions (L × W × H) 440 × 400 × 500 mm
External Dimensions (L × W × H) 560 × 530 × 825 mm
Net Weight 78 Kg
Gross Weight 98 Kg

CO2 Incubator FM-CIN-A102 maintains ideal conditions for cell cultures by controlling temperature, humidity, and CO2 levels. Its high heat sterilization function eliminates contaminants for research in areas like cell biology and tissue engineering.

Humidity Pan


Sealing Strip
HEPA Filter
Access Port Filter
CO2 Sensor
5-inch Touch Screen Interface
Solenoid Valve Control System
