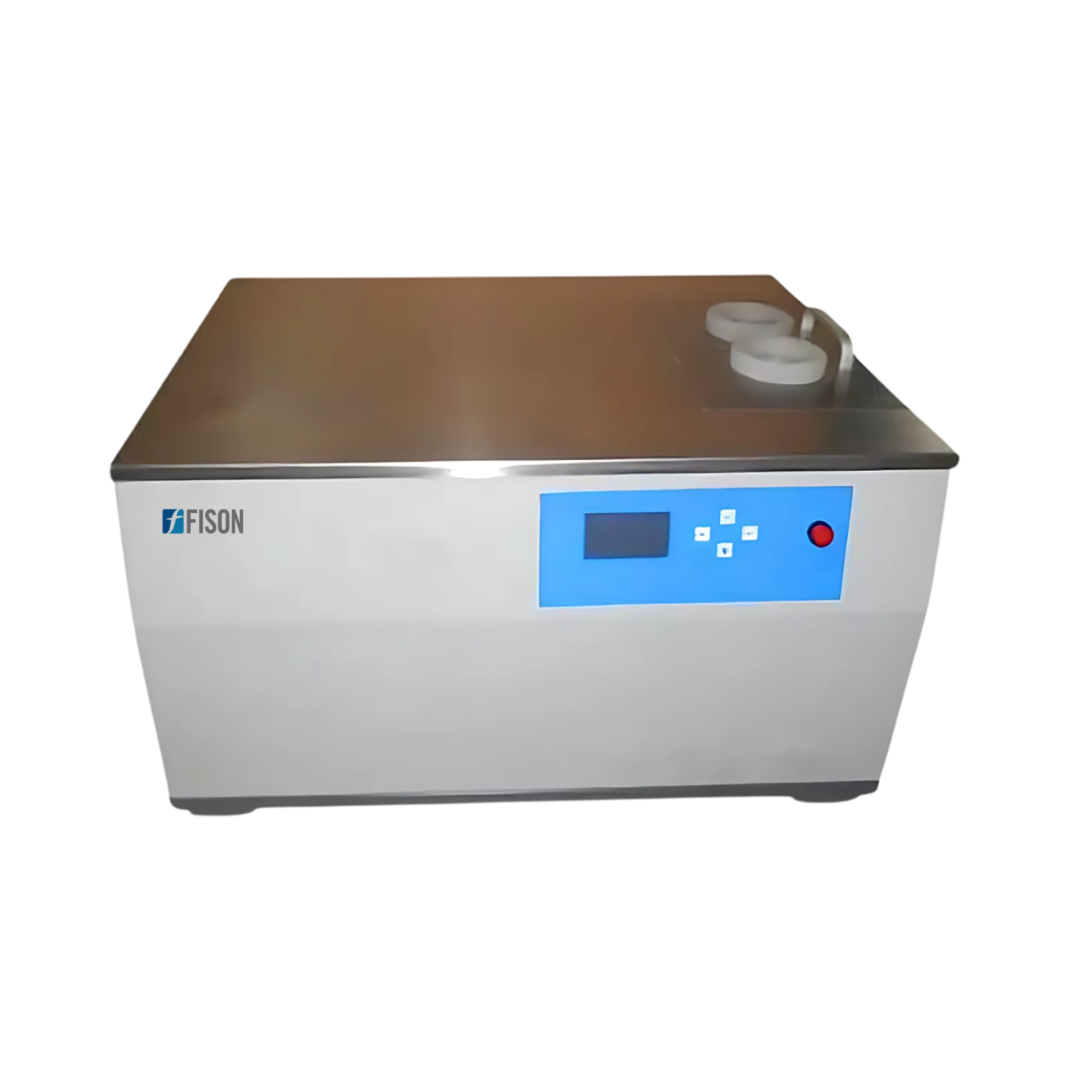

Cloud Pour Point Tester FM-CPT-A100
Cloud Pour Point Tester FM-CPT-A100 auto regulates sample temperatures down to minimal sub-zero conditions of -70℃. Powered by U-tube differential suction filter with extraction pressure of 220 mmH2O. Designed with multi-sample capacitated two-bath isothermal system. Built with stainless steel to achieve fire-resistant thermal stability. Our product accurately detects cloud and pour point of petroleum and other fluids.
Specifications
| Methods of Temperature Control | One-bath, Two-bath |
| Temperature Measurement Range | -70℃ to Room temperature |
| Temperature Control Accuracy | ± 0.5℃ |
| Working Temperature | ≤ 30℃ |
| Relative Humidity | ≤ 85% |
| Suction Filter Pressure Gauge Type | U-tube differential pressure gauge |
| Filter Extraction Pressure | 1961 Pa (220 mmH2O) |
| Filter Working Temperature | ≤ 40℃ |
| Filter Relative Humidity | ≤ 85% |
| Filter Power Supply | AC 220 V ± 22 V, 50 ± 1 Hz |
| Filter Power Consumption | ≤ 150 W |
| Filter Dimensions | 255 × 100 × 405 |
| Filter Weight | 5 kg |
| Main Unit Power Supply | AC 220 V ± 10%, 50 Hz |
| Main Unit Power Consumption | 700 W |
| Main Unit Dimensions | 600 × 450 × 340 |
| Main Unit Weight | 50 kg |
Features
- LCD display
- Advanced cooling technology
- Compressor-refrigeration control
- Precision thermostat
- Over-temperature protection
- Unsurpassed contamination detection
Applications
- Cloud Pour Point Tester employs dual technology to measure both cloud and pour point of fluids important to petroleum and bioenergy industries.
Accessories
- Suction filter
