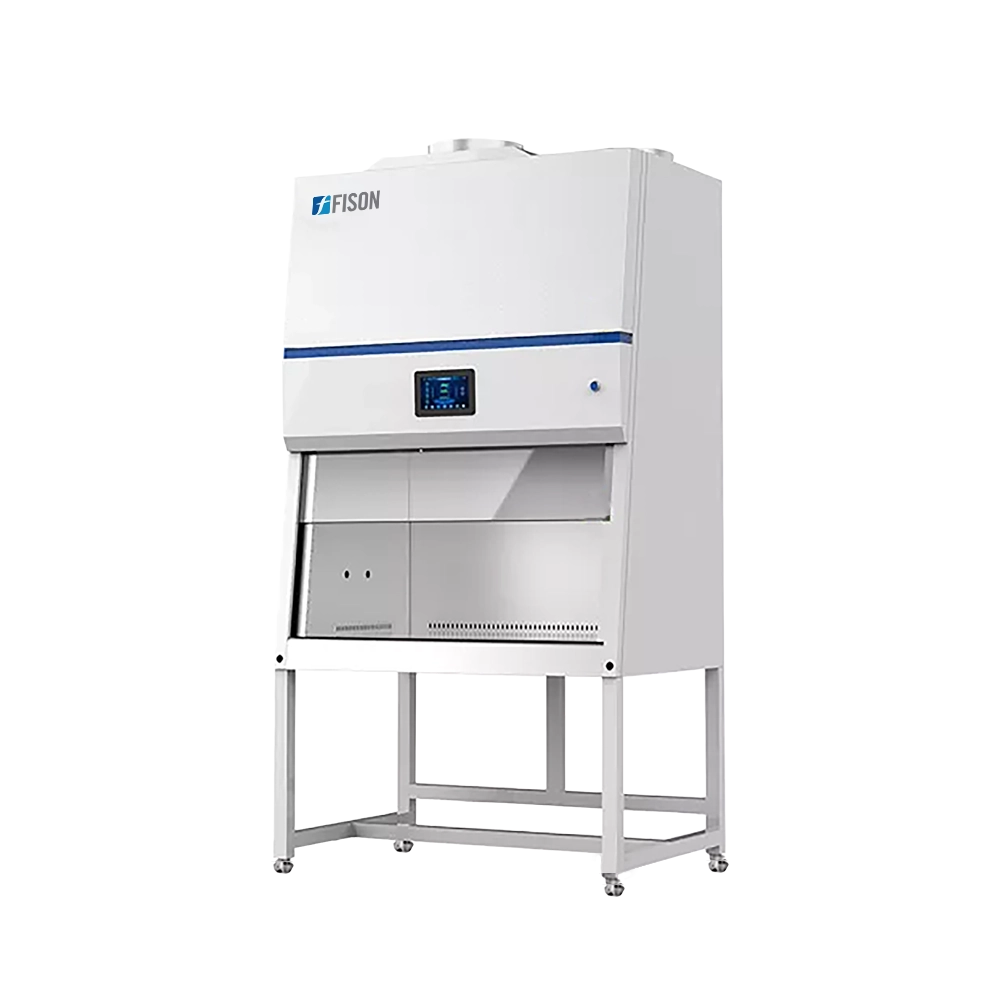

Class II B2 Biological Safety Cabinet FM-BSC-A501 is a preciously designed cabinet, that ensures utmost safety while handling biological materials. With a maximum opening of 420 mm, it ensures a controlled airflow, regulating both inflow and downflow velocities. Configured with an alarm system to alert for abnormal airflow velocity, filter replacement, and unsafe front window height. Our cabinet is enhanced with a washable pre-filter and an efficient ULPA filter boasting 99.999% effectiveness.
Specifications
Max Opening | 440 mm |
Tested Opening | Safety Height 200 mm (8 inch) |
Inflow Velocity | 0.53 ± 0.025 m/s |
Down flow Velocity | 0.33 ± 0.025 m/s |
Pre-Filter | Washable |
ULPA Filter | Two, 99.999 % efficiency at 0.12 μm, filter life indicator |
Front Window | Motorized, two-layer laminated toughened glass ≥ 6 mm, anti UV |
Noise | ≤ 65 dB |
Illumination | ≥ 1000 Lux |
LED Lamp | 16 W × 2 |
Power | 850 W |
Display | LCD display, exhaust filter and down flow filter pressure, filter and UV lamp working time, inflow and down flow velocity, filter life, humidity and temperature, system working time etc. |
Waterproof Sockets | Two, total load of two sockets,500 W |
Control System | Microprocessor |
Airflow System | 0 % Air recirculation, 100 % air exhaust |
Alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height |
Exhaust Duct | 4 meters PVC duct, Diameter 300 mm |
Material Work Zone | 304 stainless steel |
Material Main Body | Cold-rolled steel with anti-bacteria powder coating |
Work Surface Height | 770 mm |
Caster | Foot master caster |
UV Lamp | 40 W × 1 UV timer, UV life indicator, emission of 253.7 nano meters for most efficient decontamination |
Illuminating Lamp | 1000 lux |
Power Consumption | 1300 W |
Power supply | AC 220V ± 10 %, 50/60 Hz; 110V ± 10 %, 60 Hz |
Internal dimension (W×D×H) | 1350 × 600 × 660 mm |
External dimension (W×D×H) | 1500 × 775 × 2250 mm |
Net Weight | 64 kg |
Gross weight | 300 Kg |
Features
Applications
Accessories
Accessories no | Name | Quantity |
1 | LED Lamp | 2 pcs |
2 | UV Lamp | 1 pc |
3 | Base stand | |
4 | Remote control | |
5 | Foot switch | |
6 | Drain valve | |
7 | Waterproof socket | 2 pcs |
8 | Exhaust blower | |
9 | Exhaust duct |
Accessories Optional
Accessories No. | Name |
1 | Water and gas tap |
2 | Electrical height adjustable base stand |
3 | Armrest |
Fison Class II Biosafety Cabinets offer personnel, product, and environmental protection by preventing contamination during biological sample handling. They are equipped with a laminar airflow design that maintains continuous airflow for optimal sample protection. Our cabinets feature a HEPA filtration system that effectively removes airborne contaminants. They provide negative pressure to prevent hazardous particle escape. These units deliver energy-efficient operation with optimized airflow and lighting for safety and performance.
Fison Class I Biosafety Cabinets offer personnel and environmental protection while handling low-to-moderate risk biological materials. They feature a HEPA filtration system that effectively removes airborne contaminants before air is released. These units are equipped with a negative airflow design that removes contaminated air, ensuring operational safety. They provide a functional workspace with a protective viewing panel for easy sample handling. Our cabinets include energy-efficient airflow and lighting to reduce power use while maintaining performance.
Fison Class III Biosafety Cabinets offer maximum containment protection for handling highly infectious and hazardous biological materials. They feature a gas-tight enclosure with a fully sealed workspace to prevent contamination. These units are equipped with dual HEPA filters for complete removal of hazardous particles. They include built-in heavy-duty gloves for secure material manipulation without direct exposure. Our cabinets deliver advanced safety alarms to monitor airflow, filter integrity, and pressure for maximum security.
Fison Cytotoxic Safety Cabinets offer a secure and sterile workspace for handling hazardous drugs and toxic compounds. They feature a HEPA filtration system that effectively removes airborne contaminants and drug residues. These units are equipped with a negative pressure design to prevent harmful substances from escaping into the environment. They provide laminar airflow technology to maintain a contamination-free workspace. Our cabinets deliver safety alarms and monitoring to detect airflow failures, filter status, and pressure changes.
