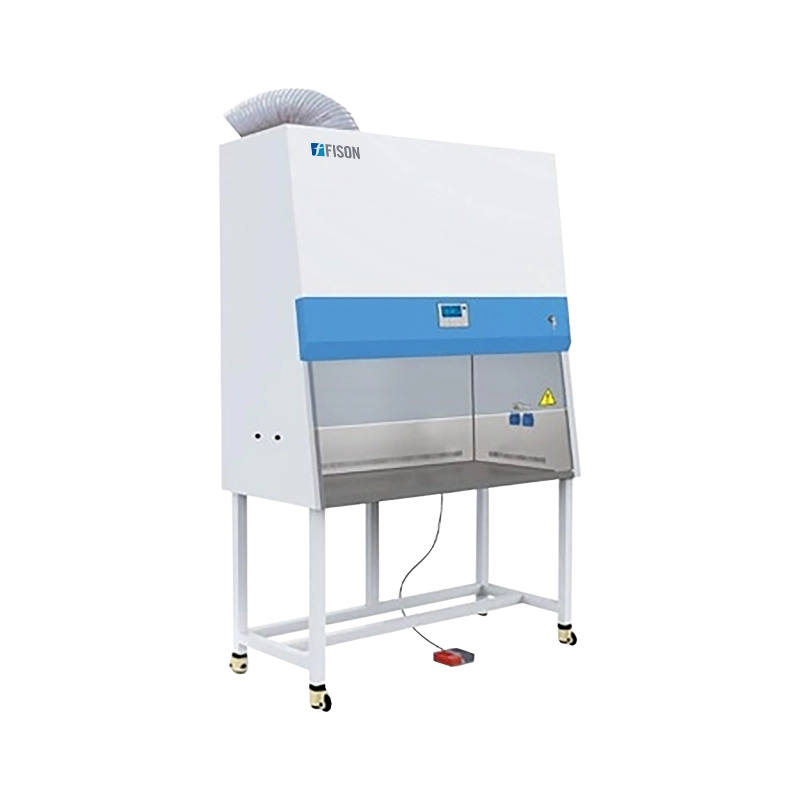

Class II B2 Biological Safety Cabinet FM-BSC-A500
Class II B2 Biological Safety Cabinet FM-BSC-A500 has a maximum opening of 420 mm and tested opening is at safe height of about 200 mm. Equipped with 2 ULPA filters having 99.99% efficiency at 0.12 µm and supports memory function for saving parameters to ensure smooth operation during power failure. Integrated LCD display for visualization and modification of the safety parameters for the convenience of the user.
Specifications
| Max Opening | 420 mm (17 inch) |
| Tested Opening | Safety Height 200 mm (8 inch) |
| Inflow Velocity | 0.53 ± 0.025 m/s |
| Down flow Velocity | 0.33 ± 0.025 m/s |
| Pre-Filter | Washable |
| ULPA Filter | 99.999 % efficiency at 0.12 μm, filter life indicator |
| Front Window | Motorized, two-layer laminated toughened glass ≥ 5 mm, anti UV |
| Noise | NSF49 ≤ 61 dB / EN1246949 ≤ 58 dB |
| Illumination | ≥ 1000 Lux |
| Power | 850 W |
| Display | LCD display, exhaust filter and down flow filter pressure, filter and UV lamp working time, inflow and down flow velocity, filter life, humidity and temperature, system working time etc. |
| Waterproof Sockets | Two, total load of two sockets 500 W |
| Control System | Microprocessor |
| Airflow System | 0 % air recirculation, 100 % air exhaust |
| Alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height |
| Exhaust Duct | 4 meters PVC duct, Diameter 300 mm |
| Material Work Zone | 304 stainless steel |
| Material Main Body | Cold-rolled steel with anti-bacteria powder coating |
| Work Surface Height | 750 mm |
| Caster | Foot master caster |
| UV Lamp | 30 W × 1 UV timer, UV life indicator, emission of 253.7 nano meters for most efficient decontamination |
| Illuminating Lamp | LED Lamp 14 W × 2 |
| Power supply | AC 220V±10 %, 50/60 Hz; 110V±10 %, 60 Hz |
| Internal dimension (W×D×H) | 1150 × 600 × 660 mm |
| External dimension (W×D×H) | 1300 × 750 × 2250 mm |
| Weight | 276 kg |
Features
- ULPA filters traps ultra small particulate dust particles from entering the cabinet
- UV indicator to show when UV radiation is active for user protection
- Adaptable automatic air speed and filter block for enhanced accuracy of the cabinet
- Digital display for tracking exhaust filter and down flow filter pressure
- Monitors Filter and UV lamp working time, inflow and down flow velocity
- Filter life, humidity and temperature, system working time can be monitored
- Universal caster with brake and levelling feet for ease of the user
- Memory function for backup during power failure
- UV lamp, front window, and fluorescent lamp for UV radiation treatment
- Remote control and Audio, visual alarm for signaling
- Time reserve function
- Motorized front window for ease of operation
- Adjustable front window height by foot during experiment to eliminate airflow turbulence produced by arm movement
- Maximum safety in work area enclosed in negative pressure
Applications
- Class II B2 Biological Safety Cabinet is used for protection against biological hazards and contamination across industries like pharmaceuticals, food, microbiological and research laboratories.
