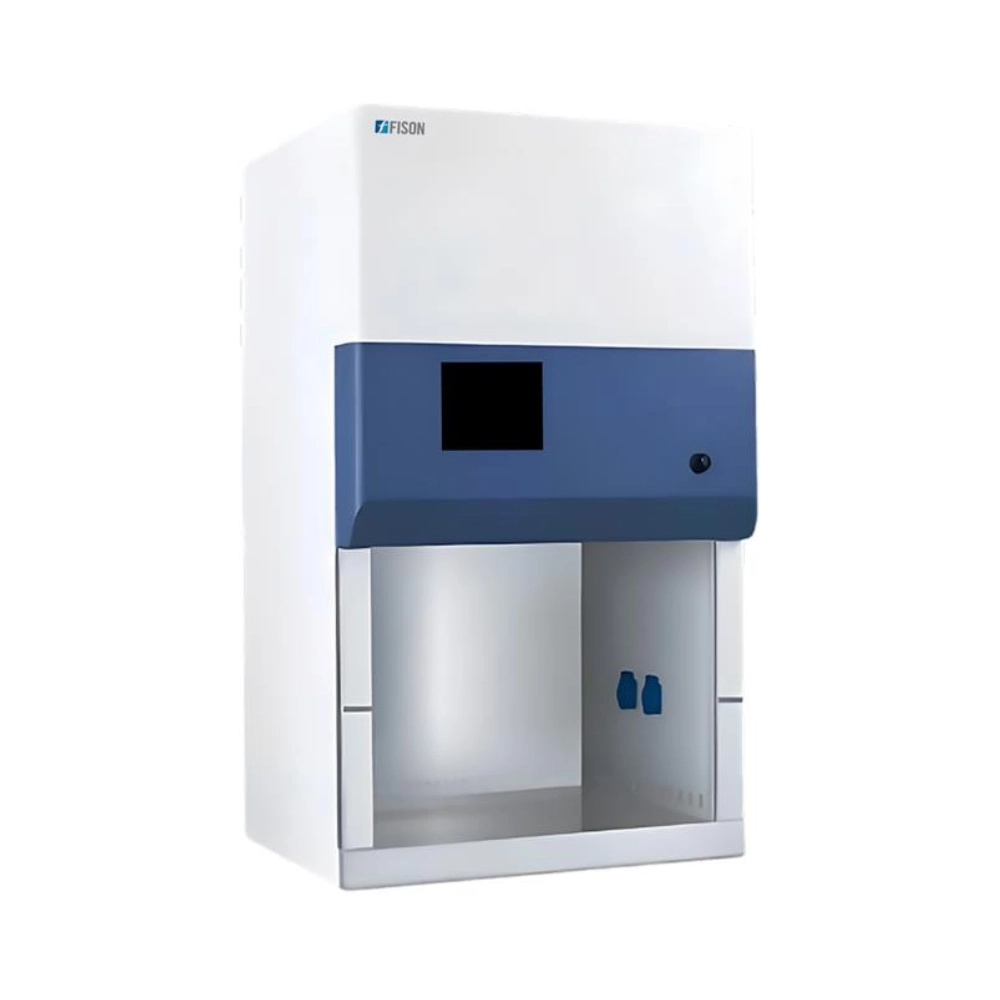

Class II Biosafety Cabinet FM-BSC-A200
Class II Biosafety Cabinet FM-BSC-A200 is designed with inward air flow system (negative air pressure) at a velocity (0.55 m/s) for personal protection, HEPA-filtered vertical laminar airflow for product protection, and HEPA-filtered exhausted air for environmental protection. Features motorized front window whose height can be adjusted using acquainted foot switch, remote control assessed operations and side waterproof sockets for operating small devices inside cabinet. Suitable for microbiological and research applications that do not involve radioactive substances and toxic contaminants.
Specifications
| Type | Class II, Type B |
| Filter Type | HEPA filter H14 |
| Filter Quantity | 2 HEPA filters |
| Filter efficiency | HEPA Filter: 99.995% efficiency at 0.3 µm |
| Inflow velocity | 0.53 ± 0.025 m/s |
| Down flow velocity | 0.33 ± 0.025 m/s |
| UV lamp | 15 W ×1 |
| UV Lamp emission | 253.7 nm |
| Illuminating LED lamp | 8 W ×2 |
| Illumination | ≥ 1000 Lux |
| Power consumption | 500 W |
| Noise level | ≤ 60 dB |
| Waterproof socket | 500 W ×2 |
| Front window | Two-layer laminated toughened glass, 5 mm |
| Work surface height | 750 mm |
| Tested Opening | Safety height ≤ 200 mm |
| Max opening of front window | 370 mm |
| Internal dimension (W×D×H) | 600×500×540 mm |
| External dimension (W×D×H) | 700×650×1230 mm |
| Display | LCD display |
| Display parameter status | Status of cabinet, such as inflow and down flow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator. |
| Control system | Microprocessor |
| Airflow system | 70% air recirculation, 30% air exhaust |
| Visual and audio alarm | Filter replacement, front window at unsafe height, abnormal air flow velocity |
| Clean Level | ISO 5 Class 100 |
| Chamber Material (work table) | 304 stainless steel |
| Chamber Material (body) | Cold-rolled steel with anti-bacteria powder coating |
| Power supply | 220 V±10%, 50/60 Hz, 100 V±10%, 60 Hz |
| Packaging dimension with base stand (W×D×H) | 860×960×1450 mm |
| Gross weight | 196 kg |
Features
- Suitable for BSL I, II and III
- Facilitates personnel, product and environment protection
- Digital LCD display for easy monitoring of all parameters
- Ergonomically sized control panel improves user interface
- 304 grade Stainless Steel work table for operation surrounded by negative pressure
- Waterproof sockets positioned at side panels avails use of small devices in cabinet
- Emission of 253.7 nm from UV lamp for high efficient decontamination
- Motored front window for convenient, one hand operation
- Remote controlled operation realized at 6 m distance from cabinet, protecting feature to user in course of emergency
- Foot switch to adjust the height of the front window
- Voice prompt function: airflow alarm, filter replacing alarm and front window height alarm
- Interlock function: UV lamp and front window, UV Lamp and blower, fluorescent lamp, blower and front window
Applications
- Class II Biological Safety Cabinets are the most in use bio-containment devices protecting worker, product and environment from potentially dangerous microbiological agents. It is suitable for the containment of biohazardous materials and also, appropriate as a sterile environment for cell cultures.
Accessories
Accessories no Accessories name 1. 2×UV lamp 2. LED lamp 3. Remote control 4. Waterproof Sockets
Accessories Optional
Accessories No. Name 1 Base Stand 2 Universal Caster with brake leveling feet
