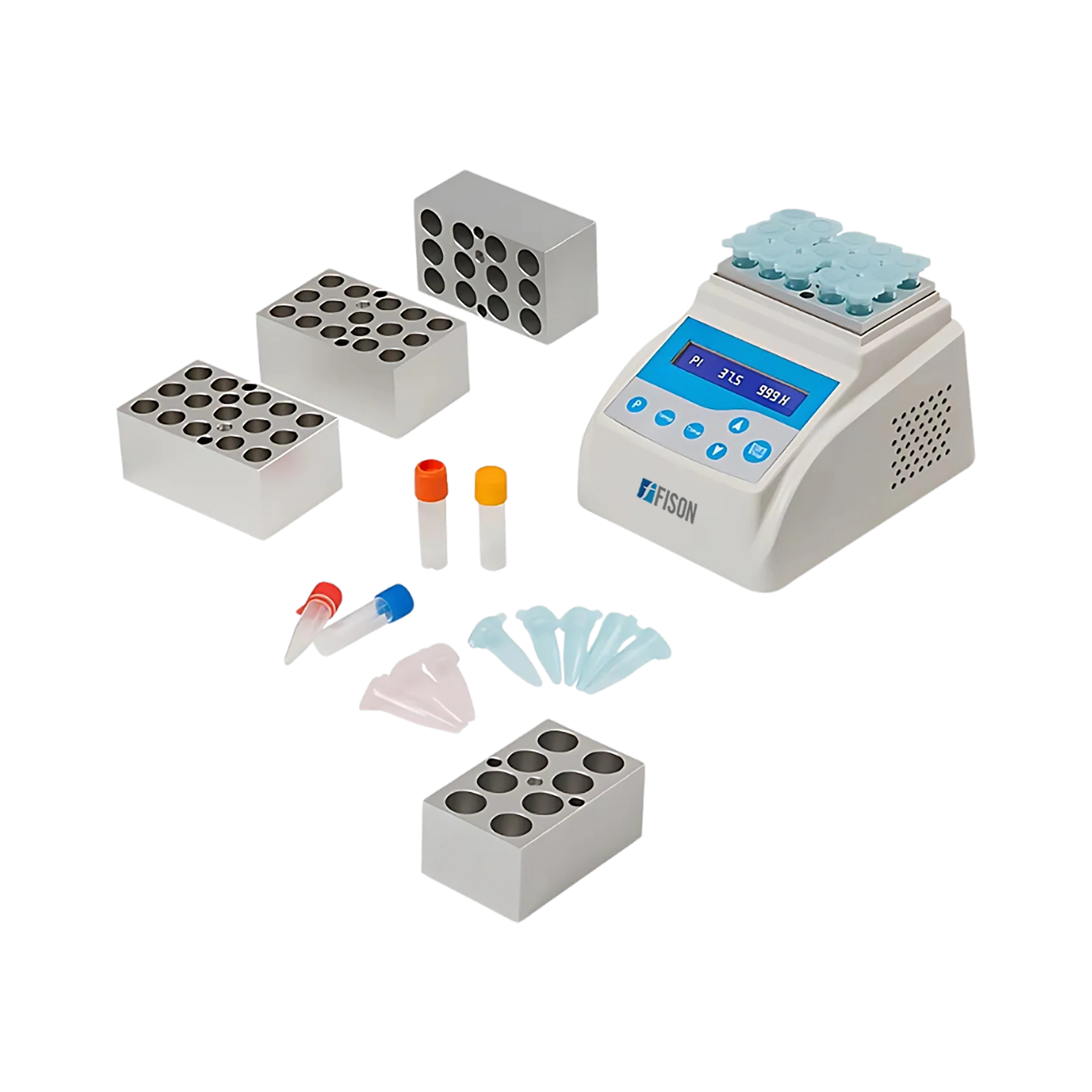

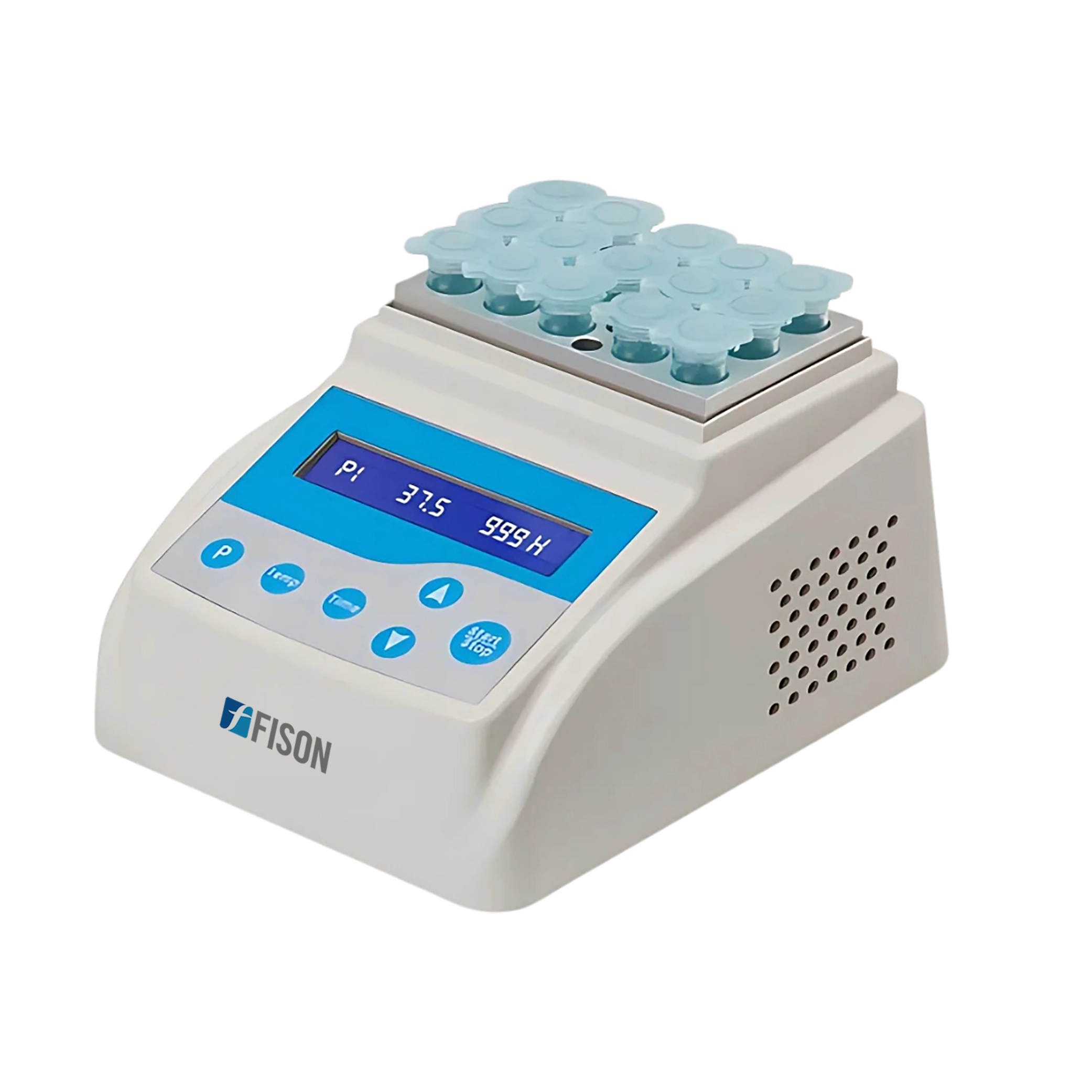

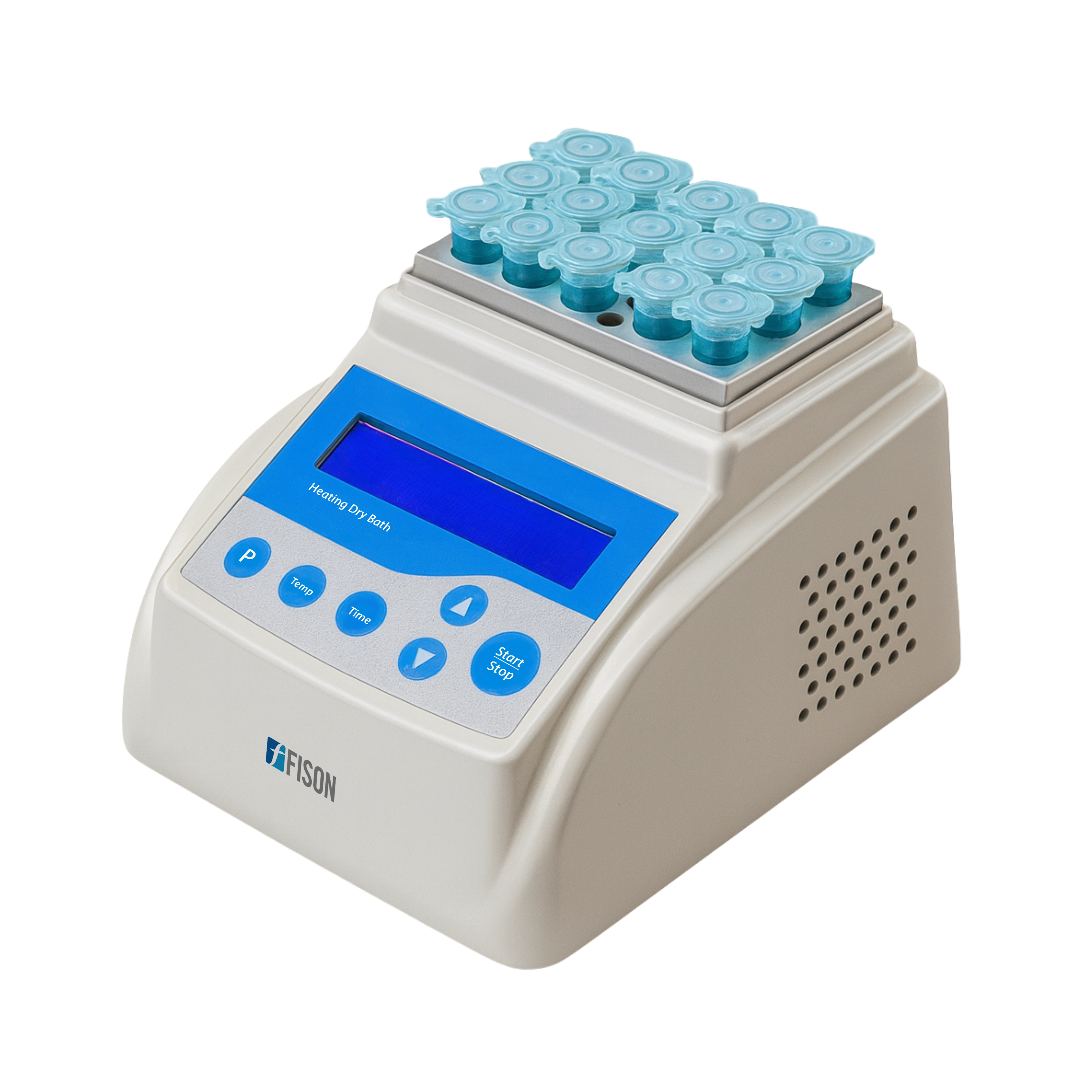

Chilling / Heating Dry Bath FM-CHB-A100

Chilling / Heating Dry Bath FM-CHB-A100 is designed with a microprocessor-controller and offers a temperature range of 0 to 100℃. It is a benchtop unit which works with a temperature accuracy of ≤±0.3°C. Developed with custom blocks that are specifically designed to fit a variety of sample holders for efficient operation. It allows users to visually monitor and assess the progress of their experiments in real-time.

Specifications

Temperature Range 0°C to 100°C
Temperature Control Range RT -15°C to 100°C
Temperature Accuracy ≤ ±0.3°C
Display Accuracy 0.1°C
Temperature Uniformity ≤ ±0.3°C
Timing Range 1sec to 5999sec/∞
1min to 5999min/∞
Heating Time ≤ 20min (from 25°C to 100°C)
Cooling Time 1 ≤ 20min (from 100°C to 25°C)
Cooling Time 2 ≤ 25min (from RT to -15°C)
Auto-4°C Yes
Multi Points Running Max. 5points
Multi Cycle Max. 99times
Power Consumption 60W
Power Supply DC12V
Dimension (W × D × H) 145 ×113 × 140mm
Weight 1 kg

Features

  • Includes electronic calibration
  • Auto heating and running operation
  • Digital display
  • Auto resume option
  • Compatible with 24V power adapter
  • UL, CSA, and CE certified power supply

Applications

  • It is used for precise temperature control of samples in various experiments which require specific temperature conditions. It is finds applications in PCR, enzyme reactions, DNA/RNA extraction, and in various microbiological studies.

Accessories Optional

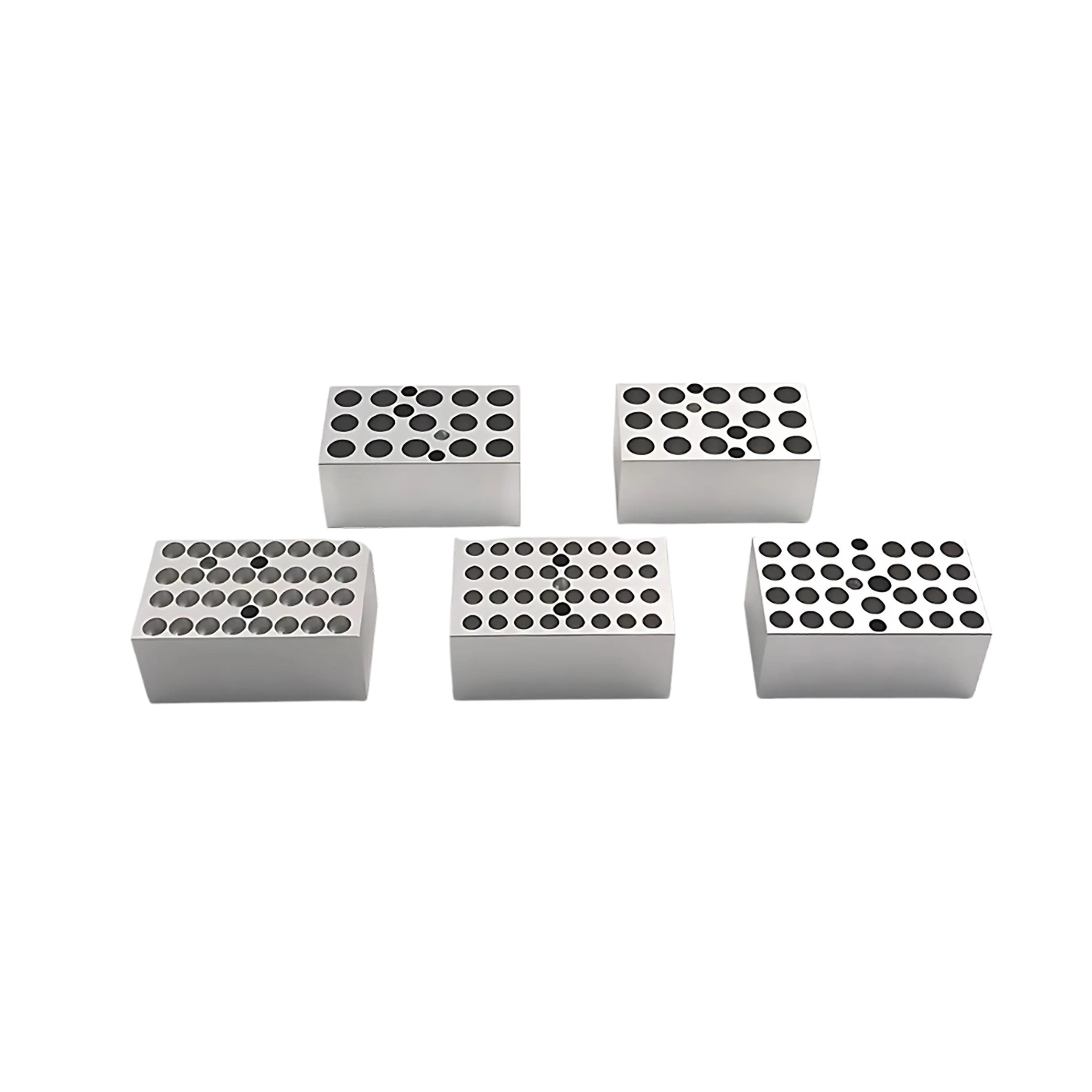

  • Test Tube and Aperture: 2.0 ml × 15
    1.5 ml × 15
    0.5 ml × 24
    0.2 ml × 32

Chilling / Heating Dry Bath FM-CHB-A100 Catalog
