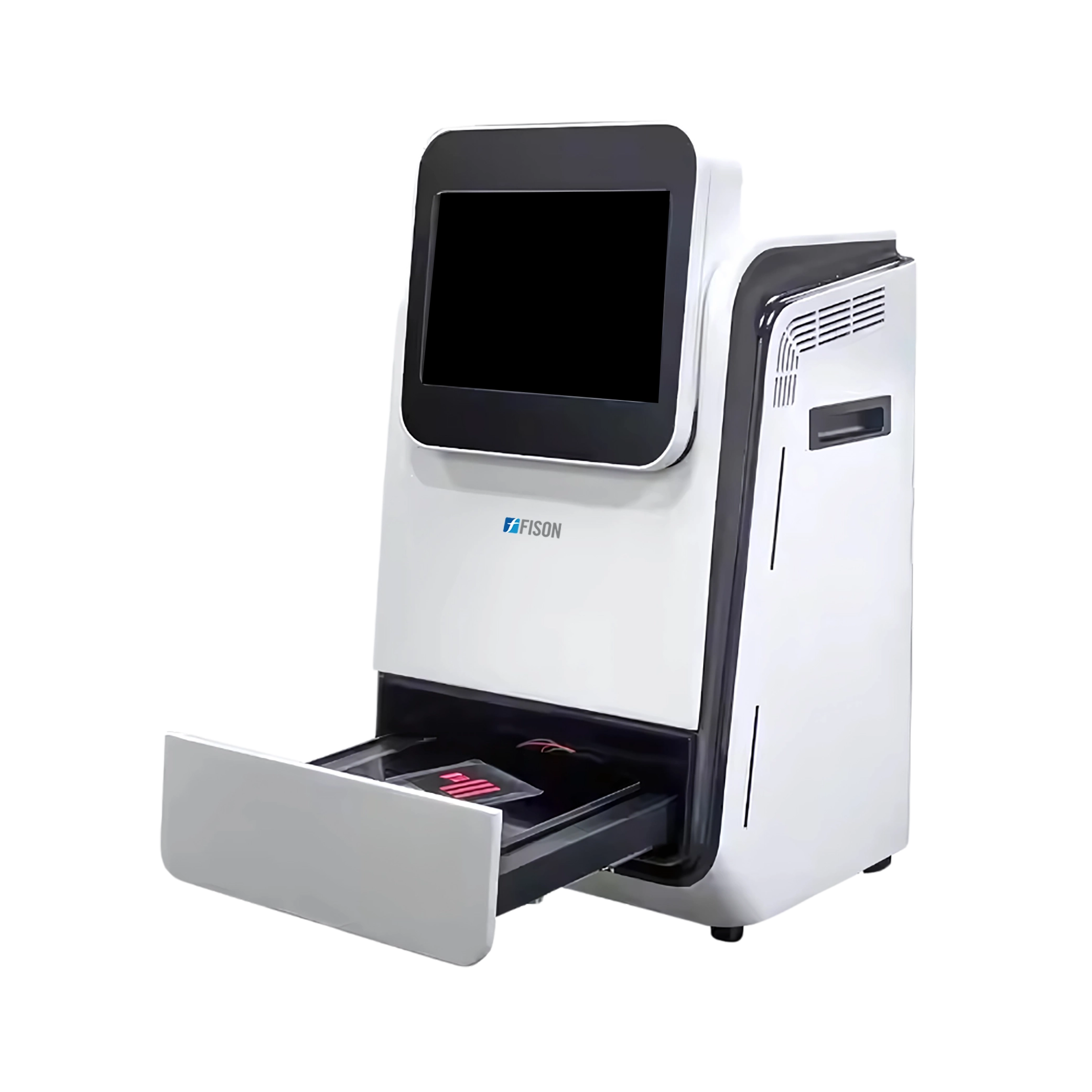

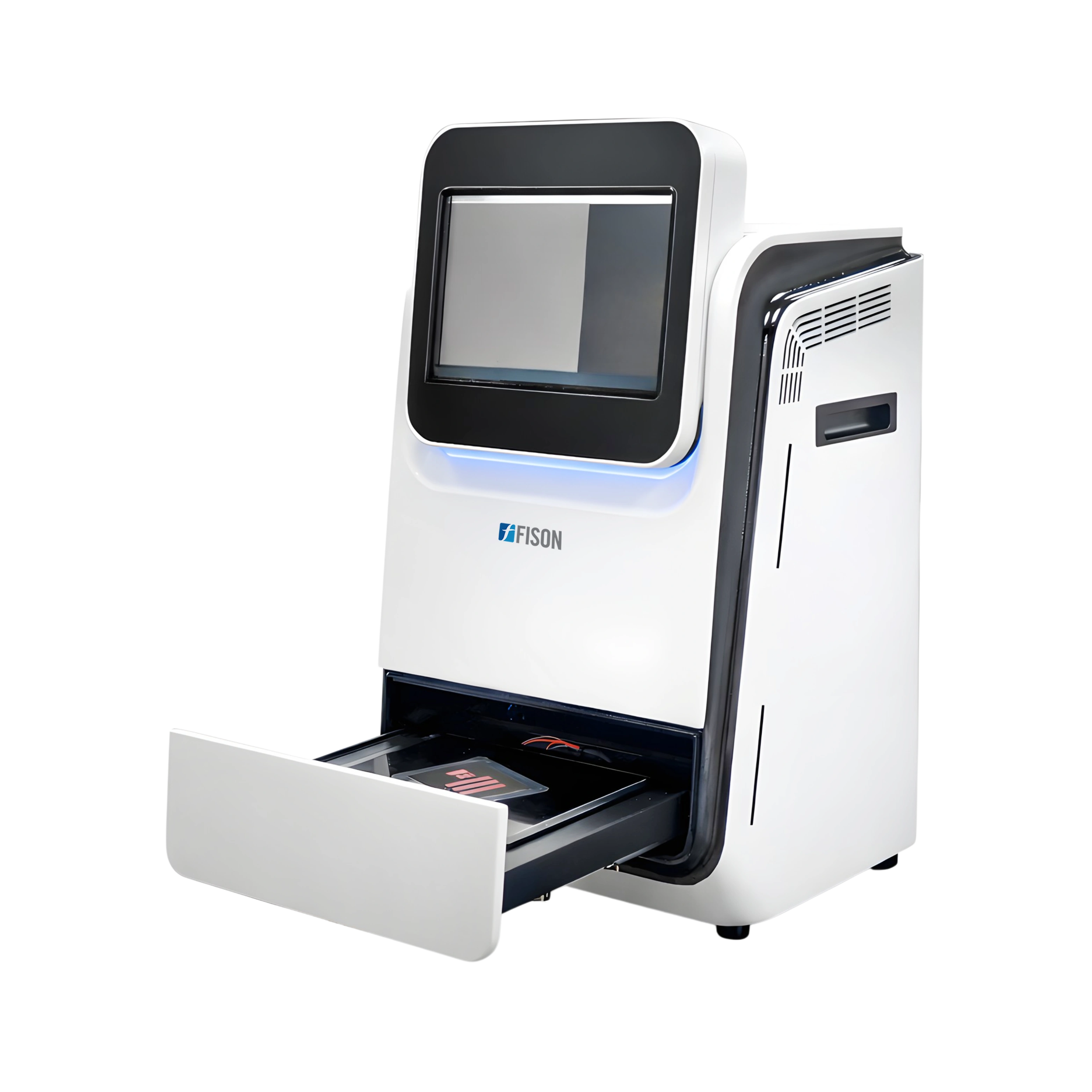

Chemiluminescence Imager FM-CI-A100 is a 9.0-megapixel high-resolution system optimized for precise imaging of samples in protein, DNA, and RNA analysis. Its cooled digital camera reduces thermal noise to enhance image clarity, in low-light conditions. This features an electronic lifting platform, providing a viewing area for various sample sizes. Our imager has user-friendly software that simplifies chemiluminescent signal capture and analysis.
| Resolution | 9.0 Megapixels |
| Sensor | Back illuminated Cooled CMOS sensor |
| Dynamic Range | 4.8 OD |
| Temperature | -30°C regulated (-65°C below ambient) |
| Pixel Size | 3.76 × 3.76 μm |
| Pixel Density | 16-bit (65,536 Grey scales) |
| Lens | F0.95 as standard |
| Chemi Imaging | Single Layer sample tray |
| Dimensions(L×W×H) | 420 × 430 × 740 mm |
| Weight | 17kg |
Chemiluminescence Imager FM-CI-A100 is utilized in molecular biology and biochemistry for detecting chemiluminescent signals in applications like Western blotting and DNA/RNA analysis. Its high sensitivity makes it ideal for research laboratories and diagnostics.
Industrial computer
Fison UV Trans illuminators comes with 04 light filters which ensures uniform light distribution during operations. They have an observation board and an adjustable UV blocking shield that aids in safe and user-friendly observation. The UV intensity is 20µW/cm2 when the sample is 20cm away, and they support real-time observation. These also come with a fixed camera port rack that makes it easier to take images of the gel. Our UV trans illuminators are more intuitive and safer for UV light examination across research institutes, molecular biology, medicine and tissue culture laboratories.
Fison Multispectral Imager offers precise spectral calibration, ensuring accurate measurements across multiple wavelengths for reliable data analysis. Their customizable spectral range feature tailors the device to specific applications and captures a wide variety of wavelengths. They support real-time image processing, delivering immediate data analysis. The electronic lens of the imager provides precise, automated focus adjustments. Our imager supports unlimited software users, allowing efficient data access across multiple workstations.
Fison Gel Doc Imaging System is used for capturing high-resolution images of gel-based experiments, such as electrophoresis. The system features a powerful camera that provides high-resolution images for accurate analysis. They have integrated software that allows for image analysis, data quantification, and easy documentation. Their ability to visualize gels under different light conditions enhances detection sensitivity. Our Gel Doc Imaging System has automated settings that ensure consistent and reproducible results with minimal user intervention.
Fison Blue Light Transilluminator uses high-intensity blue LED light, ensuring clear and sharp imaging while protecting samples from UV damage. Their large, anti-scratch viewing surface provides a broad work area, accommodating various gel sizes with ease. They are energy-efficient with minimal heat output, cost-effective, and environmentally friendly. The adjustable brightness settings, allow users to control light intensity for an optimal image. Our Transilluminator features a corrosion-resistant hardware design, ensuring durability and reliability even in high-humidity laboratory environments.
