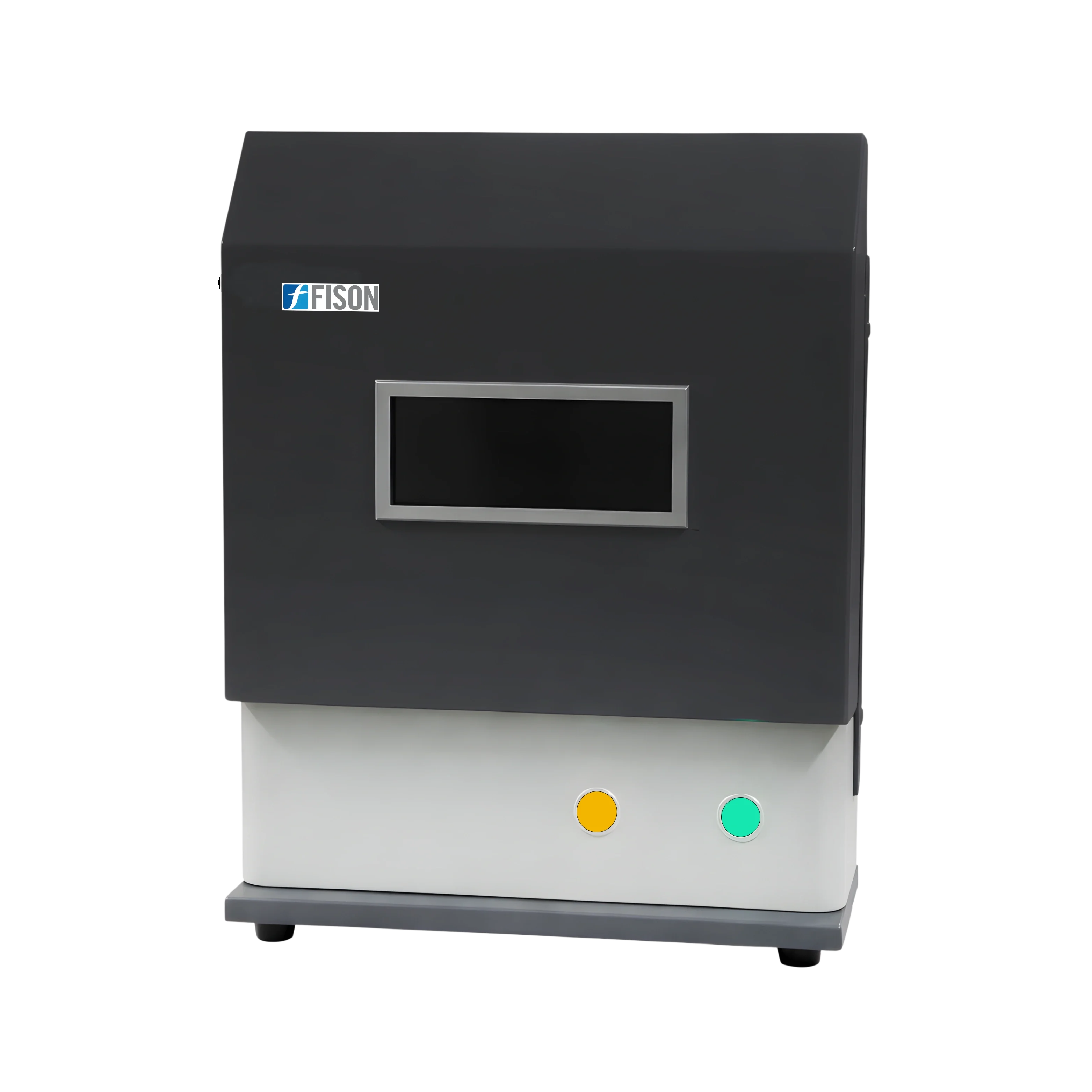

X-ray Fluorescence Spectrometer FM-XRF-A100 Catalog

Description :

X-ray Fluorescence Spectrometer FM-XRF-A100 rapidly examines atomic composition of samples within 30 to 200 s. Employs energy dispersion mechanism to measure wide range of elements starting from Sodium (11) to Uranium (92). Features programmable gain control, digital multichannel analyzer and electric refrigeration FAST-SDD detection. Equipped with multi-million pixels HD camera and advanced software for digital documentation. Our XRF Spectrometer has wide spectrum applications in research and industrial analysis.

Features:

---

Specifications:

---

Analytical Method	Energy-dispersive X-ray Fluorescence
Element Measuring Range	Atomic Number From 11 To 92 [Sodium (Na) To Uranium (U)]
Analytical Range	ppm to 99.99%
Analysis Time	30 to 200 s
Analysis Accuracy	RSD ≤ 0.1 %
Energy Resolution	100 eV
X-Ray Tube Current	5 µA to 1000 µA
X-Ray Tube Voltage	5 KV to 50 KV
Vacuum Rate	10-2 pa in 10 s
Vacuum Pump Power Consumption	550 W
Detector Type	Electric refrigeration FAST-SDD semiconductor
Detector Photon Counting Rate	500000 CPS
Detector Signal to Noise Ratio	6500 is to 1
Analyzer Type	2048 channelled digital multichannel analyzer
Modes Of Operation	2, Linear and pulse
Pulse Mode Type	Triangular pulse shaping
Pulse Forming Time	2 μs
Spin System Speed	4 r/s
Spin System Current	1.5 A
Spin System Voltage	24 V
Camera System	500 million pixels High-definition camera
Ambient Humidity	30% - 80%
Sample Chamber Size	170 × 39 mm
Power Consumption	100 W
Power Supply	AC 220V ±10%, 50Hz
Dimension (W × D × H)	700 × 650 × 800 mm
Weight	80 kg

Applications: X-ray Fluorescence Spectrometer performs non-destructive analysis of samples in research, mining, geology, forensic, agriculture, pharmaceuticals, electronics, food and construction industries.

Accessories: Instrument Host 1 piece Computer 1 piece Laser Printer 1 piece Analysis Software 1 set Vacuum System 1 set Portable Vacuum Cleaner 1 piece Manual Tablet Press 1 piece Regulated Power Supply 1 piece Reference Materials 1 set S Standards 1 set

Accessories Optional: Vibration Mill: 50 g, 100 g Automatic Tablet Press
