Vertical Autoclave FM-VA-A202 Catalog

Overview

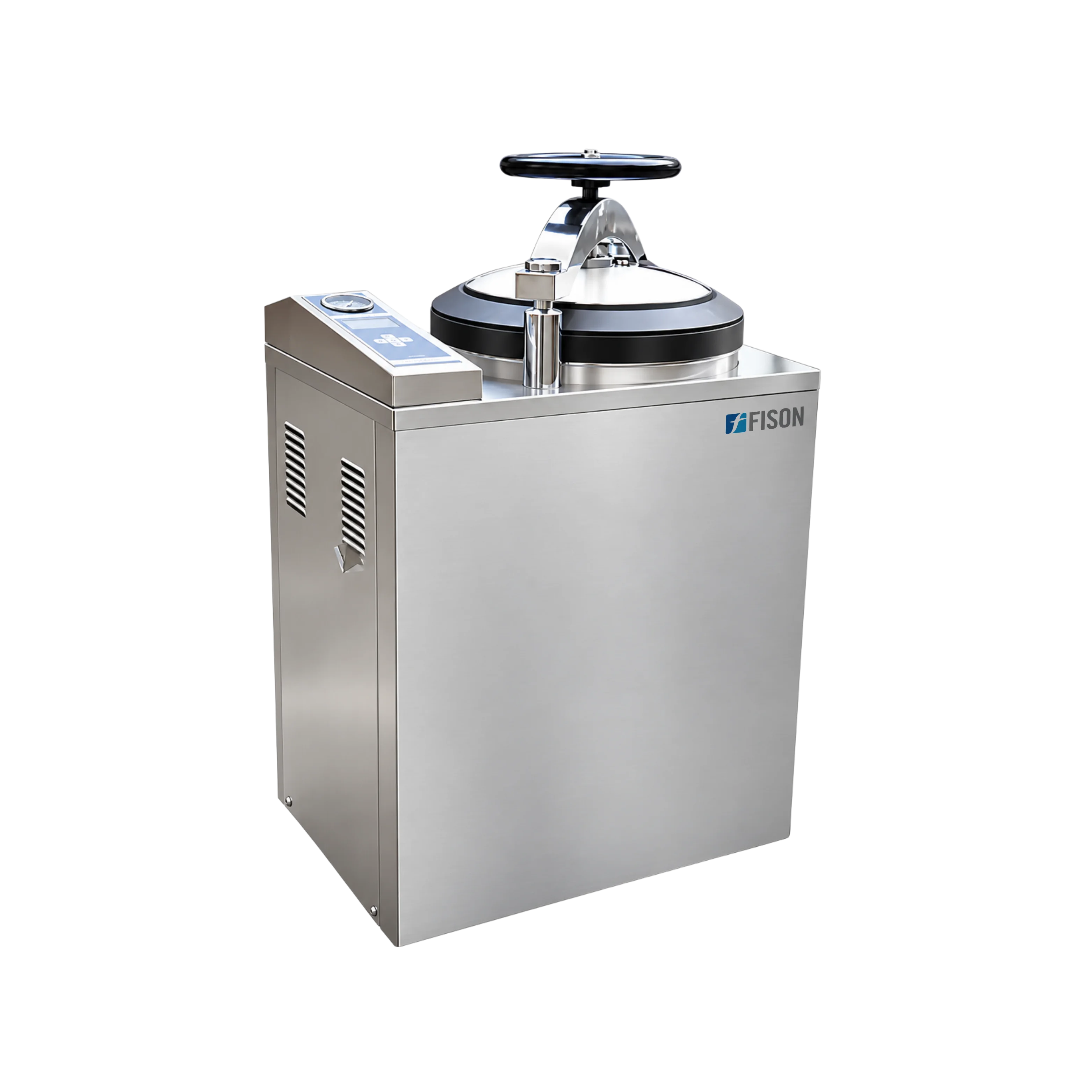

Vertical Autoclave FM-VA-A202 is a top loader sterility autoclave with a 100 L capacity, 134°C sterilization temperature and 0.22 MPa hydraulic pressure. It has hand wheel type quick door open structure design. Equipped with two stainless steel baskets and indicator light to indicate working status of the sterilization process. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance property and PT/TT testing connector. It is CE certified vertical autoclave.

Specifications :

Features :

• Automatically controlled microcomputer digital display system
• Automatic route for water inlet, pulse vacuum, heating, sterilizing, draining, exhausting and vacuum drying
• Fixed program: Appliance, medical dressing, rubbers and fluid which can be set as needed
• Hand wheel type door opening structure
• 304 stainless steel body with corrosion resistance
• Submersed heating with high heating efficiency
• Dynamically shows the temperature, pressure time, vacuum rate and full cycle
• Multiple pulse vacuum drying after sterilization ensures proper sterilization
• Equipped with bacteria filter avoids chances of second contamination
• Steam water inner circulation system without steam discharge to environment
• Beep alarm for shutting off after sterilization

Accessories :

Accessories no.	Accessories name	Basket capacity	Basket dimension (W × H)	Units
1	Basket	100 L	410 × 250 mm	2
