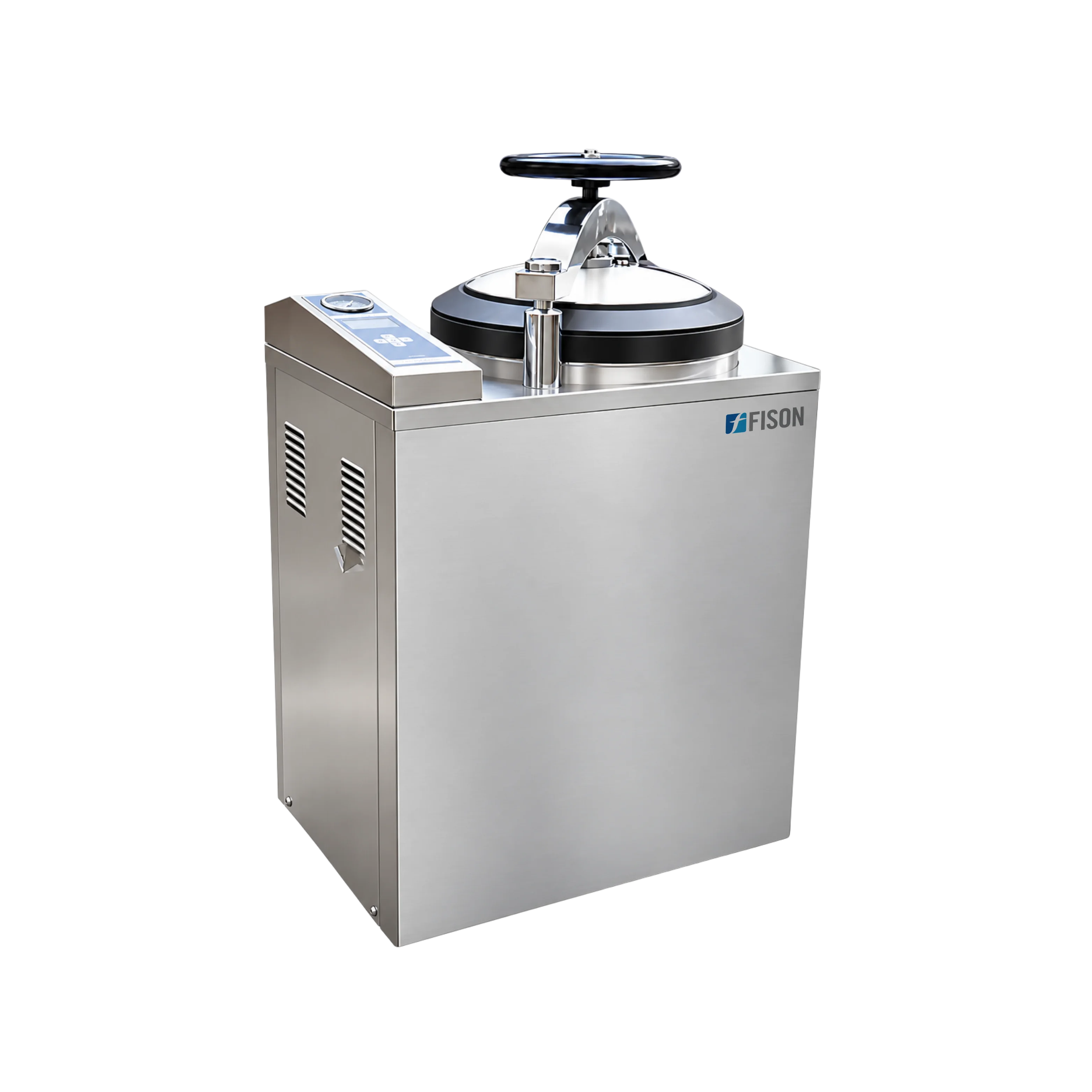

Vertical Autoclave FM-VA-A200 Catalog

Description :

Vertical Autoclave FM-VA-A200 is a top loader sterility autoclave with a 50 L capacity, 134°C sterilization temperature and 0.22 MPa hydraulic pressure. It has hand wheel type quick door open structure design. Equipped with two stainless steel baskets and indicator light to indicate working status of the sterilization process. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance property and PT/TT testing connector. It is CE certified vertical autoclave.

Features:

---

Specifications:

---

Capacity	50 L
Sterilization temperature	134°C
Sterilization pressure	0.22 MPa
Timer range	0 to 99 min
Temperature adjustment range	105 to 134°C
Control Precision: Temperature	≤ ±1°C
Digital display	Yes
Maximum power consumption	3 kW
Power supply	AC 220 V 50 Hz
Chamber dimension (Φ × D)	340 × 650 mm
Dimension (L × W × H)	690 × 470 × 1140 mm
Packaging dimension (L × W × H)	760 × 550 × 1290 mm
Net weight	100 kg
Gross weight	120 kg

Applications: Especially designed for clinical disposal, biochemistry, pharmaceutical industry, health care industry, fertilizer plant, brewery industry, biotechnology, microbiology and scientific research.

Accessories: Accessories no. Accessories name Basket capacity Basket dimension (W × H) Units 1 Basket 50 L 315 × 250 mm 2
