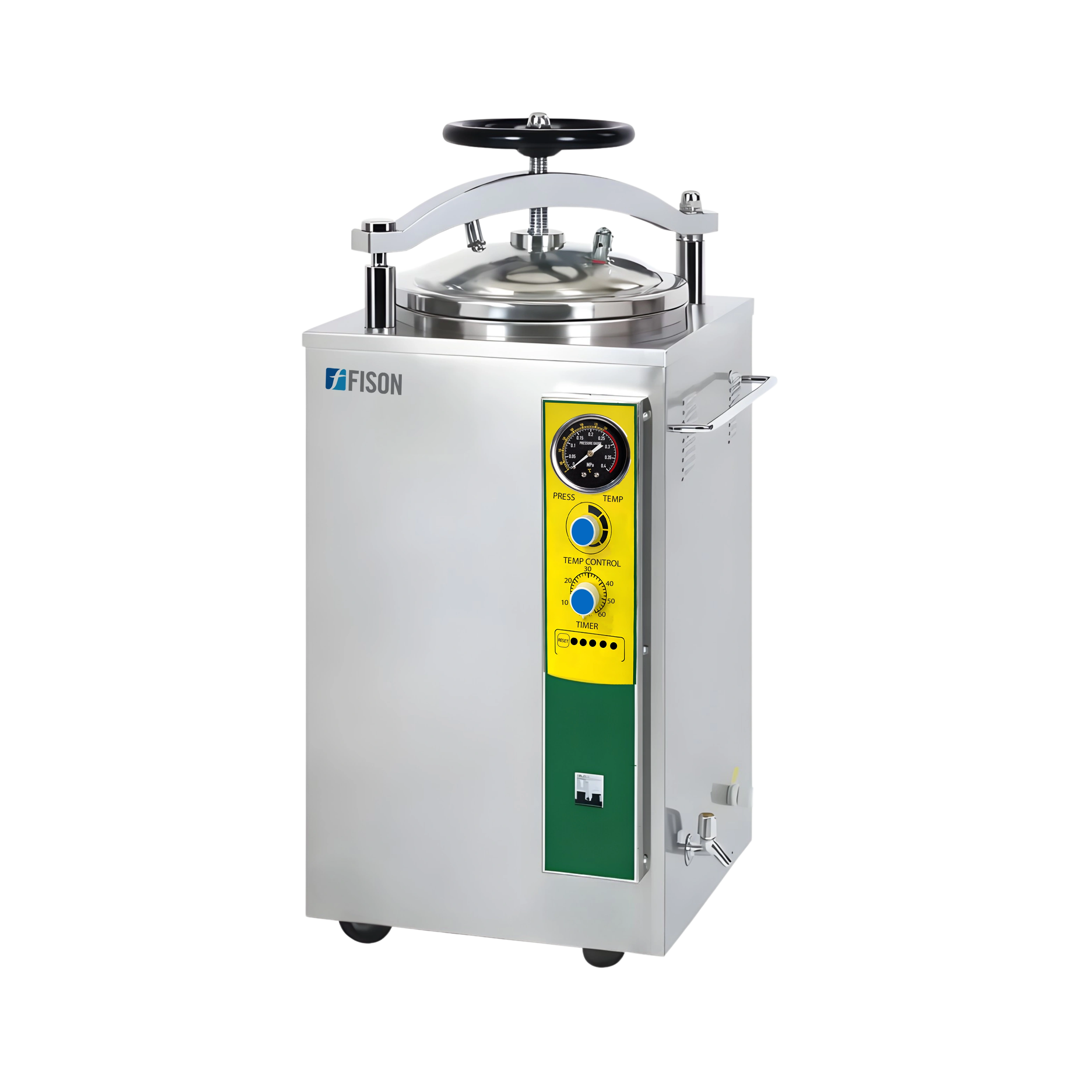

Vertical Autoclave FM-VA-A100 Catalog

Description :

Vertical Autoclave FM-VA-A100 is a top loader sterility autoclave with a 35 L capacity and 134°C sterilization temperature and 0.22 MPa working sterilization pressure. It has hand wheel type quick door open structure design. Equipped with two stainless steel baskets and indicator light to indicate working status of the sterilization process. Designed with four wheels (castors) at base for easy movement of the unit. It provides auto protection against over temperature, over pressure. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance property. It is CE certified vertical autoclave.

Features:

---

Specifications:

---

Capacity	35 L
Sterilization temperature	134°C
Wokring sterilization pressure	0.22 MPa
Timer range	0 to 60 min
Control Precision: Temperature	≤ ± 1°C
Digital display	No
Maximum power consumption	2.5 kW
Power supply	AC 220 V, 50 Hz
Chamber dimension (Φ × D)	318 × 450 mm
Dimension (L × W × H)	450 × 450 × 1010 mm
Packaging dimension (L × W × H)	570 × 550 × 1150 mm
Net weight	56 kg
Gross weight	72 kg

Applications: It is designed for clinical disposal, biochemistry, pharmaceutical industry, health care industry, fertilizer plant, brewery industry, biotechnology, microbiology and scientific research.

Accessories: Accessories no. Accessories name Basket capacity Basket dimension (W × H) Units 1 Basket 35 L 290 × 190 mm 2
