Description :

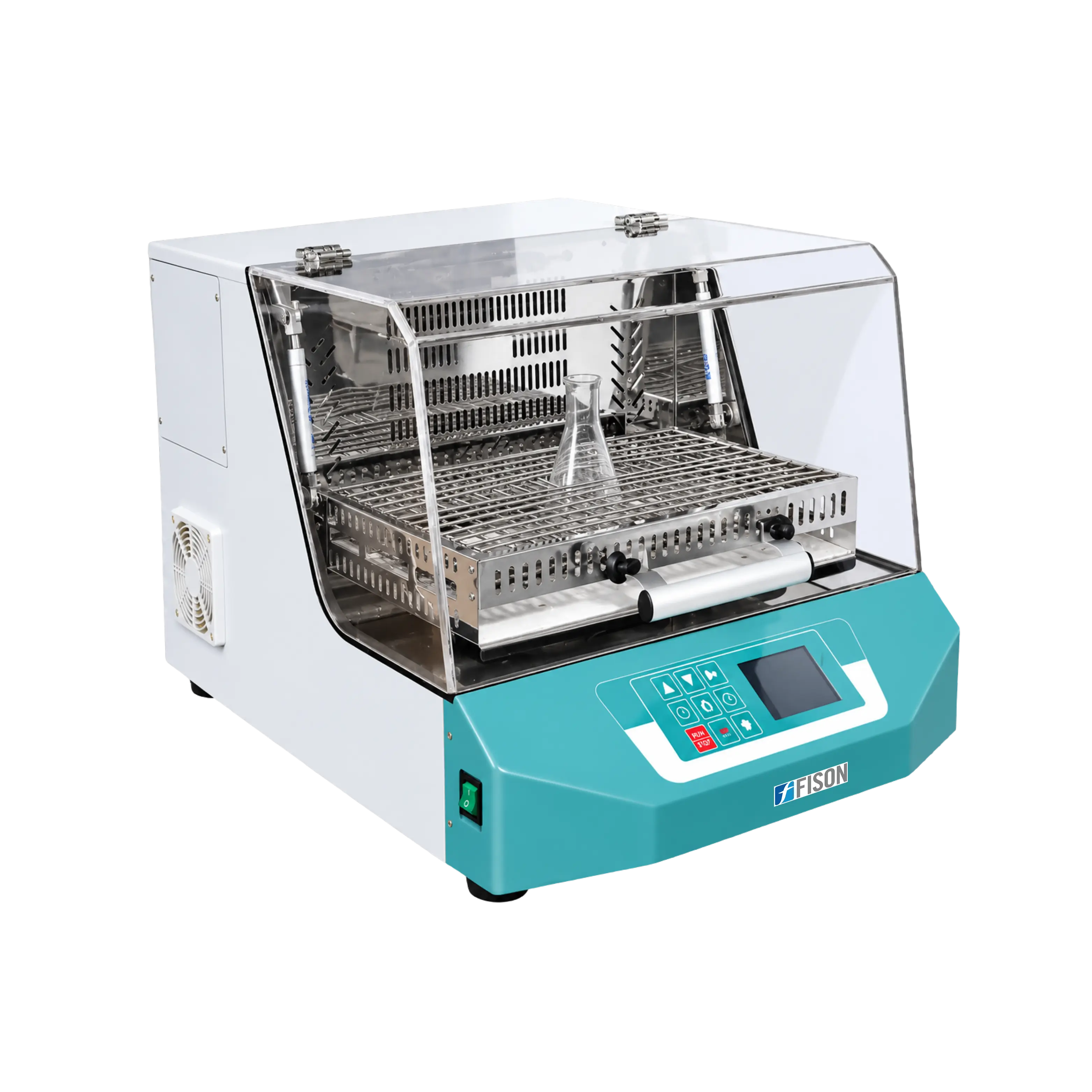

Refrigerated Shaking Incubator FM-SI-A400 is a 70 L temperature-controlled unit. It operates between +5 to 85 ℃, seamlessly integrating incubation and shaking functions. Featuring a large-screen LCD for continuous real-time display of speed and working time. The microcomputer-driven precise temperature and oscillation frequency control ensures efficient performance. Additionally, the system incorporates timing functions to further enhance its capabilities.


Features:

  • Refrigerated Shaking Incubator has adjustable starting speed, preventing splash
  • Enhances temperature uniformity with a specialized air duct system
  • Brushless DC motor with adjustable starting speed for controlled shaking
  • UV lamp is cut off when the door is open, prioritizing user safety
  • Spill-resistant bottom studio ensures uninterrupted machine operation
  • Elevated temperature alarm, secure menu lock and Advanced gating system
  • Power off and plunging protection is provided

Specifications:


Chamber capacity 70 L
Rotating speed range 30 to 300 rpm
Temperature control range 4 to 65°C
Temperature motion ± 0.1 °C
Temperature uniformity ±1°C
Speed accuracy ± 1 rpm
Resolution 0.1°C
Vibration amplitude 26 mm
Shaking mode Cyclotron Oscillation
Amplitude Φ20 mm
Timing range 0 to 9999 min
Display mode LCD
Chamber material Mirror Stainless steel
Exterior material ABS
Lid material Imported resin
Thermal insulation material Polyurethane
Cooling system Yes
Coolant type R134a
Standard tray Configuration Universal spring grid tray
Air circulation mode Horizontal Convection
Maximum flasks configuration 100 ml × 24, 250 ml × 12 , 500 ml × 8, 1000 ml × 6
Tray Dimension 380 × 320 mm
Heater Stainless steel heating tube
Drive mode Three axis level
Temperature control mode LCD PID intelligent control
Temperature sensor PT 100
Setting mode Automatic changes of rotation direction
Speed senser Hoare
Barrier system Yes
Additional function Deviation correction , menu keys locked , power off memory
Tray load bearing ≤ 15 kg /layer
Tray layer 1
Power consumption 0 . 8 KW
Power supply AC 220 V / 3.5 A
Packing dimension ( L× W × H) 698 ×913 ×720 mm
Internal dimension ( L× W × H) 320× 560 ×390 mm
External dimension ( L× W × H) 500 × 600× 770 mm
Net weight 65 Kg
Gross weight 85 Kg

Applications:

Refrigerated shaking incubator serves a versatile range of applications across various sectors, such as in pharmaceutical research, environmental testing, and food processing


Accessories:

Accessories name Quantity
Optional Flask clip tray 100 ml × 24
250 ml × 12
500 ml × 6
1000 ml × 6
