Portable PH Meter FM-PPM-A100 Catalog
Overview

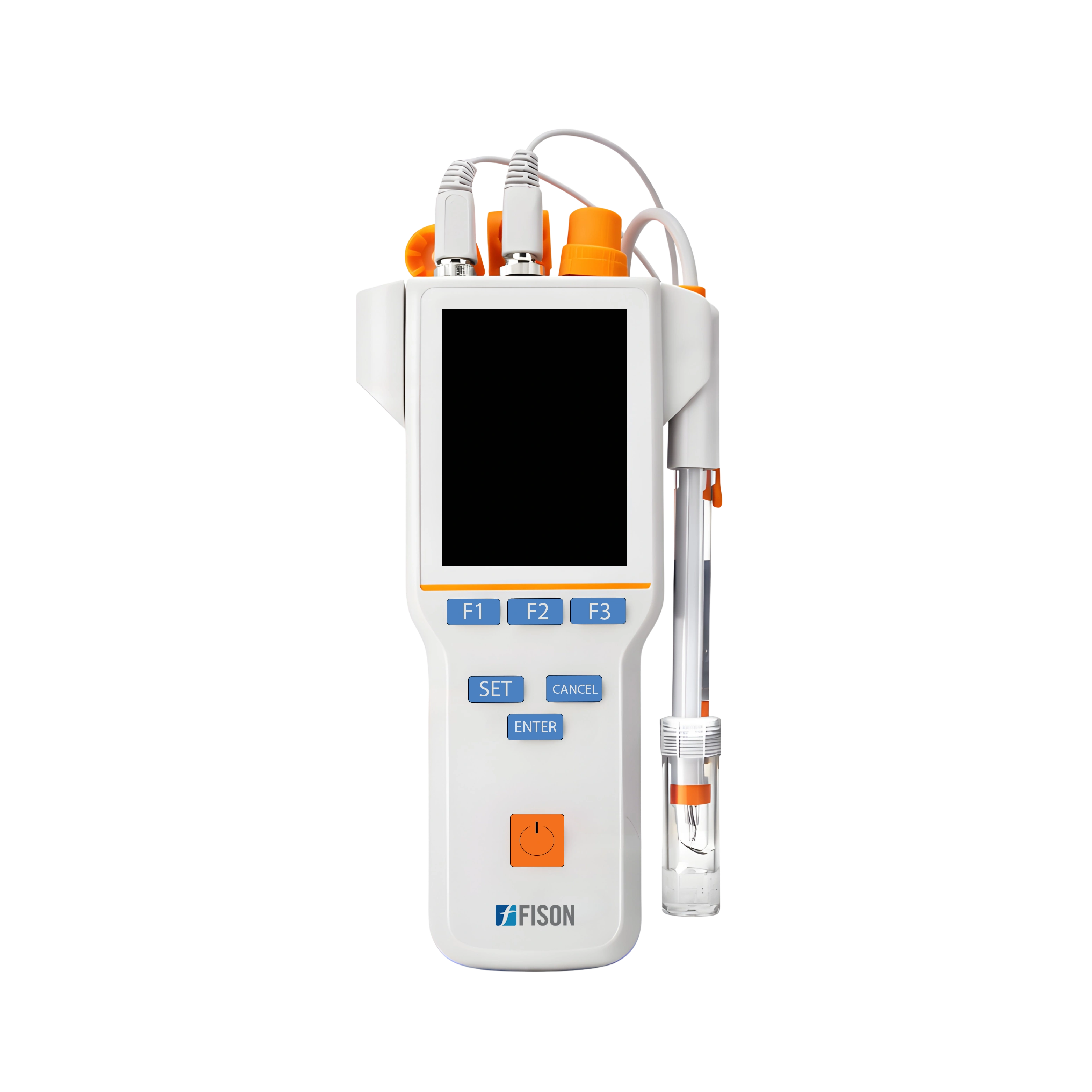

Portable pH Meter FM-PPM-A100 is a handheld device that comes with automatic/manual temperature compensation for enhanced precision. Equipped with multi-reading feature for auto-reading, timed-reading and continuous-reading and USB communication for the transfer of data. Designed with data capacity of about 500 sets for each parameter and IP 65 protection level for safety of the device against water, it supports 1 to 5 points calibration with standard recognition.
Specifications :
| pH Range | -2.00 to 20.00 pH |
| pH Resolution | 0.1, 0.01 pH |
| pH Accuracy | ±0.01 pH |
| Calibration Points | Up to 5 |
| Standard Customization | Yes |
| Standard Recognition | NIST, GB, and DIN buffers |
| Slope Limit | Yes |
| mV Range | -2000.0 to 2000.0 mV |
| mV Resolution | 0.1 |
| mV Accuracy | ± 0.3 mV or ± 0.1% |
| Temperature Range | -5 to 110 ºC, 23 to 230 ºF |
| Temperature Unit | ºC, ºF |
| Temperature Resolution | 0.1 |
| Relative Accuracy | ±0.2 |
| Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked |
| Temperature Compensation | ATC, MTC |
| Data Storage | 500 results each |
| GLP Features | Yes |
| pH Electrode | BNC (Q9) |
| Temperature Probe | 4-pin aviation connector |
| USB | PC, printer |
| Backlight | Yes |
| Auto Shutdown | 300, 600, 1200, 1800, 3600 sec., off |
| IP Rating | IP65 |
| Date and Time | Yes |
Features :
- pH range is -2 to 20 pH with resolution of 0.1, 0.01 pH
- ± 0.01 pH accuracy with 1 to 5 calibration points and standard recognition
- 3.5 inches LCD screen for visualization of parameters
- Multi-reading capability enables automatic, timed, and continuous reading
- Accurate findings are guaranteed by automatic or manual temperature correction
- Automatic hold function detects and locks the measurement end point
- 500 sets of data are allowed for each parameter (compatible with GLP)
- USB communication interface for transfer of data
- Battery service life is significantly increased by the auto-power off feature
- Reset functionality automatically resets all settings to their original factory defaults
- IP65 water-resistant
- NIST, DIN, and GB are among the selectable pH buffer groups
- Automatic diagnosis of electrodes with pH slope and offset display
Applications :
