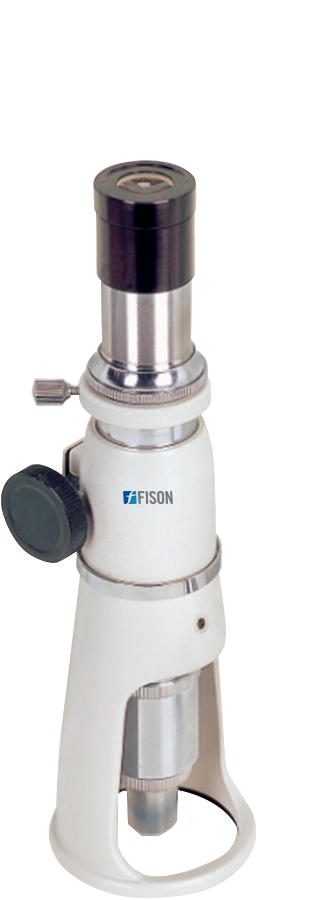

Measuring microscope FM-PMM-A203 Catalog

Description :

Measuring microscope FM-PMM-A203 comes with small, lightweight, portable design, and user-friendly operations. The natural light is used as source of illumination. Different measurements are possible by using different reticules and eyepiece in this microscope.

Features:

---

Specifications:

---

Total magnification	20X
Objective	Achromatic objective 2X
Condenser	N.A. 0.05
Illumination source	No pen battery
Eyepiece/ cross with reticle	WF 10X/ 18 mm (with diopter adjustment)
Magnification tube length	160 mm
Eyepiece reticle	0.1 mm
Fine division	0.05 mm
Working distance	17.2 mm
Focus range	30 mm
Diameter of bearing plane	63 mm
Height of microscope	210 mm
Weight	650 g

Applications: Used in on field microscopic measurement or viewing across machinery production industry, paper and printing, textile industry for quality and research purpose.
