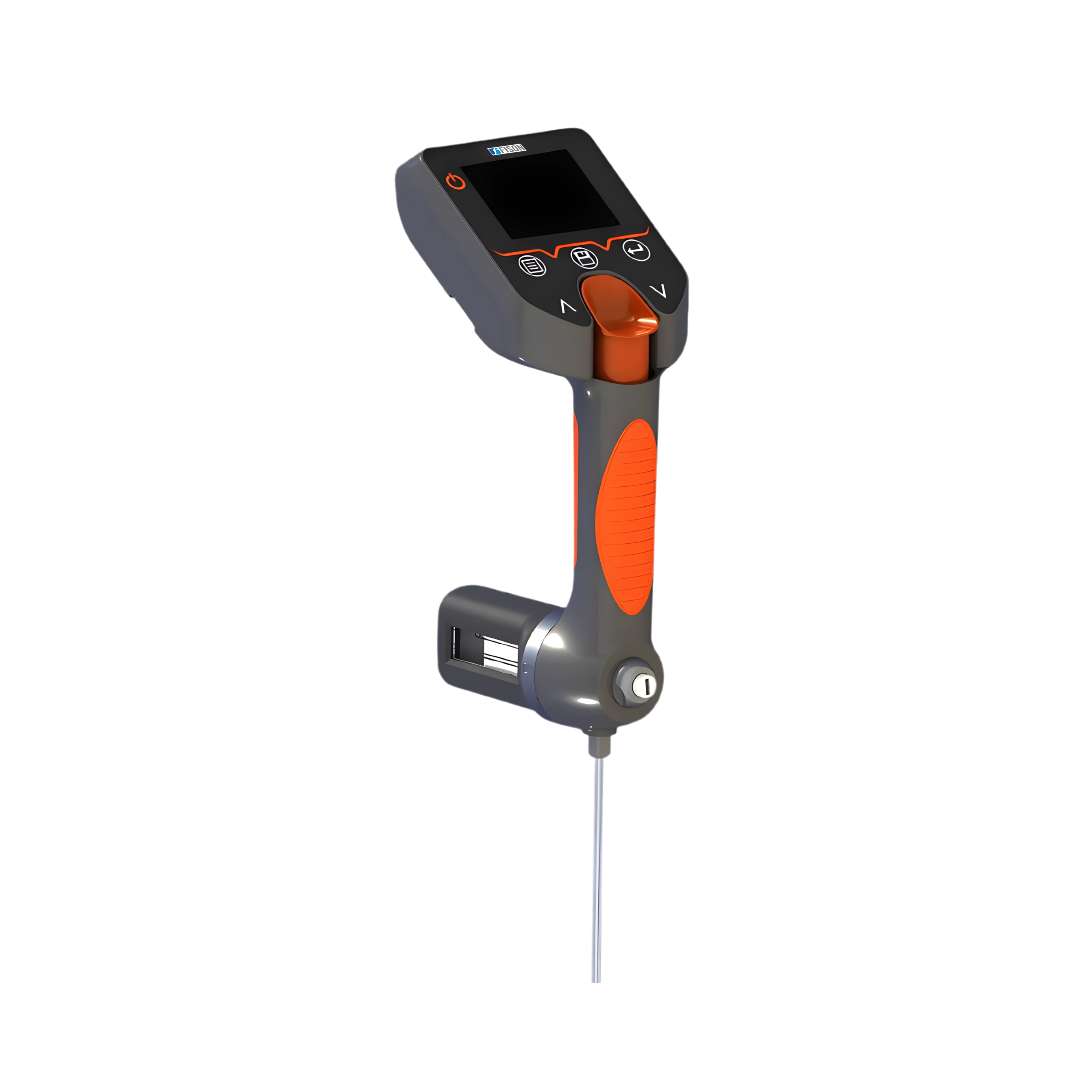

Portable Density Meter FM-PDM-A100

www.fison.com | info@fison.com

Description :

Portable Density Meter FM-PDM-A100 is a compact and pocket-sized density meter that enables rapid determination of liquid and gas density. Our density meter accommodates a capacity of 2 ml and offers an efficient and reliable method for measuring bulk density. Utilizing a U-shaped vibrating tube, this ergonomically optimized device is both robust and lightweight, offering simplicity of operation.

Features:

Enhance operational efficiency and significantly decrease the time required for measurements
Ensure that measurement data is properly preserved, accessible, & and responsibler
Resolving conflicts about both quantity and quality is simpler when temperature and density measures are preciser
Light and easy to operater
It can instantly upload and publish data, as well as has a capacity for 5,000 sets of datar
Convert both density and temperature into standard values for specific gravity, focus, and density utilizing an automated process.

Specifications:

Capacity	2 ml
Measuring range	0g/ cm3 to 3.0g/ cm3
Temperature	5℃ to 55 ℃
Ambient temperature	-10℃ to 60 ℃
Accuracy	±0.2
Resolution	0.01 ℃
Density	0.0001g/ cm3
Repeatability	0.0002g/ cm3
Internal storage	5000 Measurement results
Continuous working time	More than 20 hours
Explosion-proof grade	Ex ia IIC T4 Ga
Ingress Protection	IP67
Interface	Bluetooth
Power supply	Rechargeable lithium battery 3.7V
Dimensions	245 ×95 ×125 mm
Weight	650g

Applications:

It is employed for laboratory oil and sampling density, as well as in the food beverages, pharmaceutical, and cosmetic industries.
