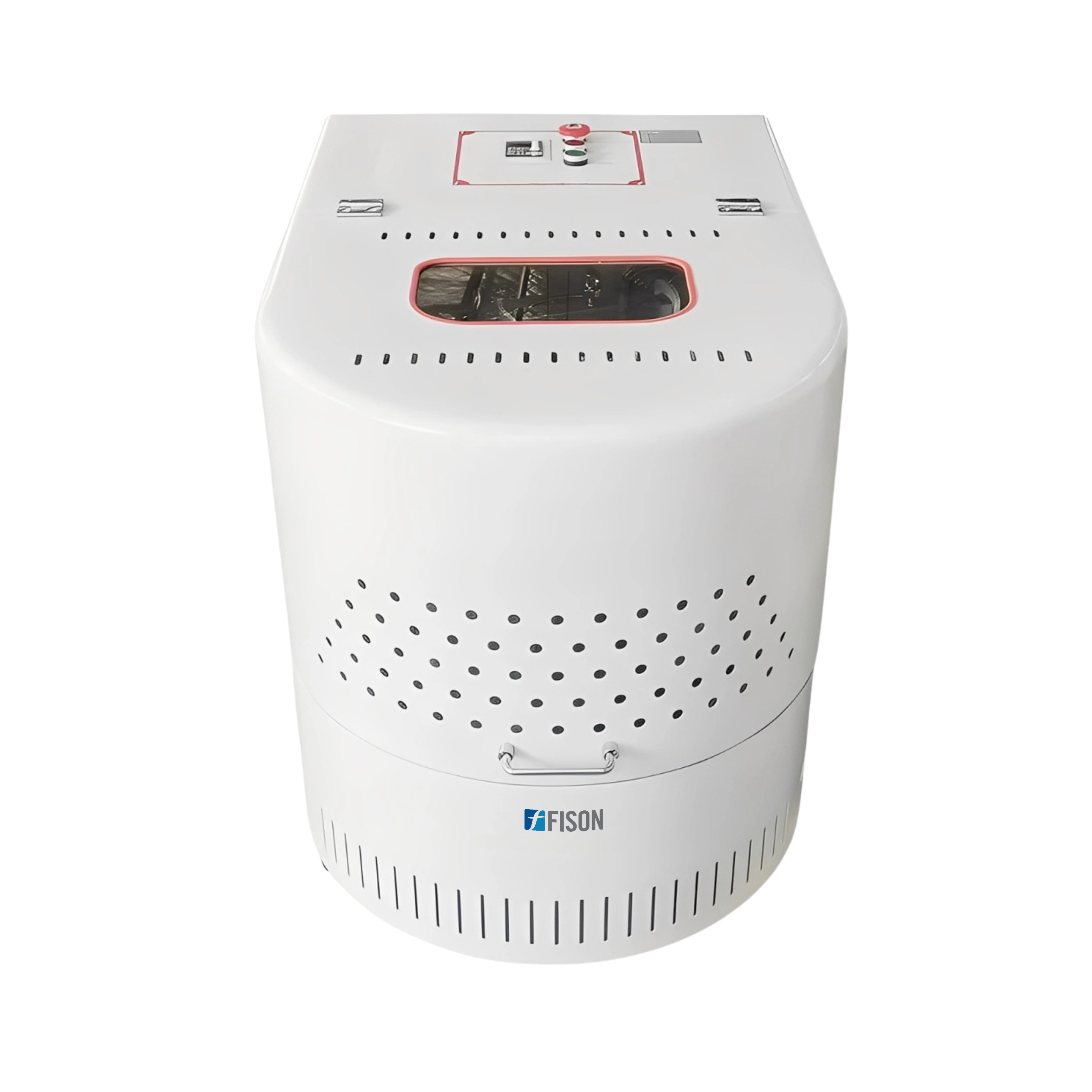

Planetary Ball Mill FM-PBM-A100 Catalog

Description :

Planetary Ball Mill FM-PBM-A100 is a highly efficient ball mill that is perfect for combining, fine-grinding, and preparing small amounts of sophisticated materials. Intended with a grinding jar that holds a capacity of 100ml and works within a rotation speed of 90-870 r/min. Designed with a ventilation hole to enhance cooling and guarantee steady functioning for a longer period of time.

Features:

---

Specifications:

---

Max Volume of Pot or Jar	100ml
Work Mode	2 or 4 jars working together
Mill Mode	Dry/wet milling
Speed Frequency	Adjusting
Drive Mode	Gear drive
Rotational Speed	90-870 r/min, adjusting
Revolution: Rotation	1:2
Material Capacity	Material + mill balls < 2/3 volume
Input Granularity Size	≤ 10mm for soft material ≤ 3mm for hard material
Output Granularity Size	Minimum 0.1μm
Feed Material	Soft, hard, brittle, fibrous, cellulose, herb, glass, soil, ore, pharmacy, chemical, fluorescent, pigment, etc.
Grinding Jars	Stainless steel, zirconia, alumina, nylon, PU, tungsten, PTFE, etc., vacuum jars are available as well.
Grinding Medium	Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc
Time Range	72 hours
Voltage	110V or 220V, 50/60 Hz Single phase
Dimensions	500×300×340 mm
Weight	29 kg

Applications: It is mainly used for mixing and grinding in fields such as Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering etc
