Microplate Reader FM-MPR-B100 Catalog

Description :

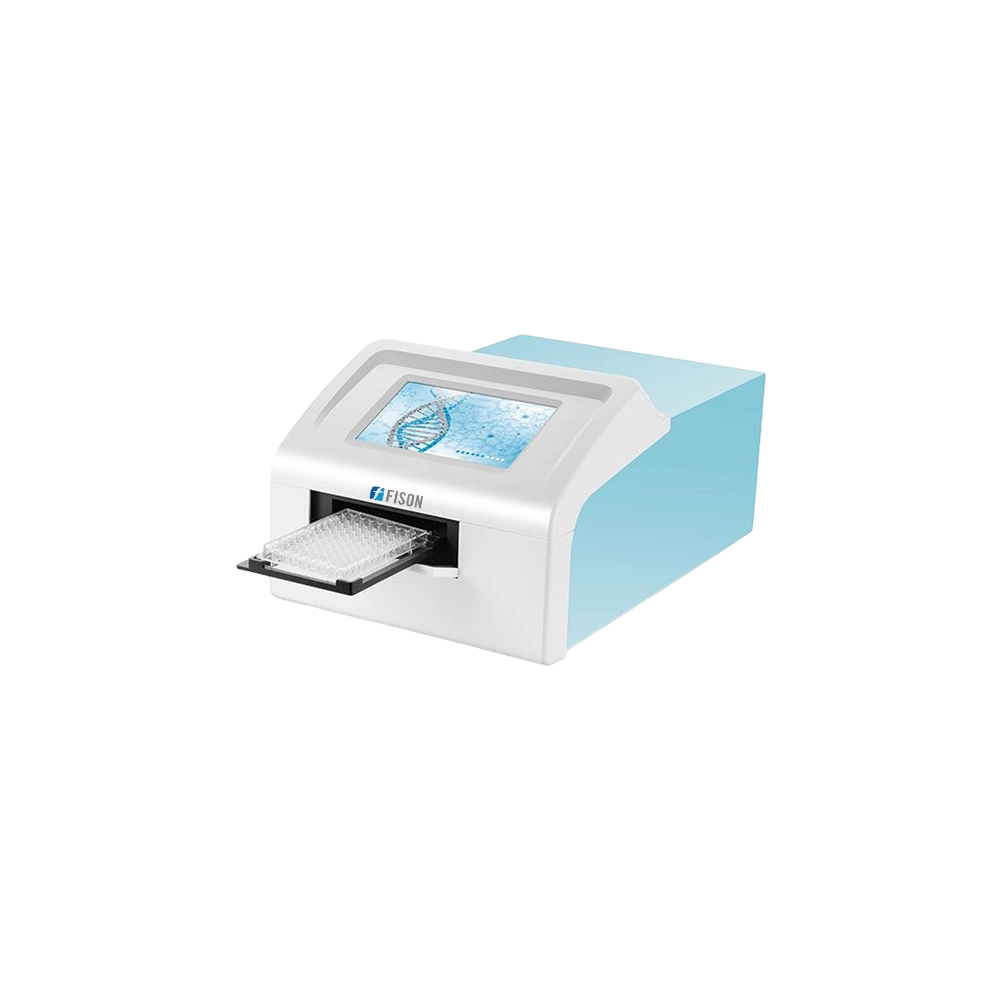

Microplate Reader FM-MPR-B100 has a wavelength range of 340 to 750 nm and a resolution ratio of 0.001 Abs. It provides fast and accurate measurement of 96-well plates, making it ideal for high-throughput applications. The reader is equipped with an eight-position filter wheel, with four standard filters preinstalled, allowing for a range of wavelengths. Its built-in software enables comprehensive control and data handling, ensuring ease of operation. Our microplate reader is designed to deliver consistent performance and reliability in laboratory environments.

Features:

---

Specifications:

---

Light source	6V 10W Quartz halogen lamp
Wavelength Range	340 to 750 nm
Filters	Four standard filters: 405 nm, 450 nm, 492 nm, 630 nm
Absorbance Range	0.000 to 4.000 Abs
Resolution Ratio	0.001 Abs
Linearity	(0.2, 0) ± 1%; (2.0, 4.0) ± 2%
Wavelength Indication Error	≤ ±3 nm
Wavelength Repeatability	≤ ±1.5 nm
Repeatability	(0.3, 0) ≤ 0.3%, (3.0, 4.0) ≤ 1%
Stability	(0.3, 0) ≤ 0.3%, (3.0, 4.0) ≤ 1%
Accuracy	(0.2, 0) ≤ ±0.005 A, (2.0, 3.0) ≤ ±1%, (3.0, 4.0) ≤ ±1.5%
Sensitivity	≥ 0.010
Channel Variation	< 0.01 A (1.0 Abs standard filters)
Measurement Speed	Single wavelength: <10 s/96 well, Dual wavelength: <16 s/96 well (normal mode)
Incubator Temperature	Ambient +4°C to 50℃
Dimension	280 × 432 × 220 mm
Weight	10 kg

Applications: Microplate Reader FM-MPR-B100 is used in ELISA immunoassays, Protein Quantification, Cytotoxicity assays in research laboratories, educational institutions, pharmaceutical companies, etc.
