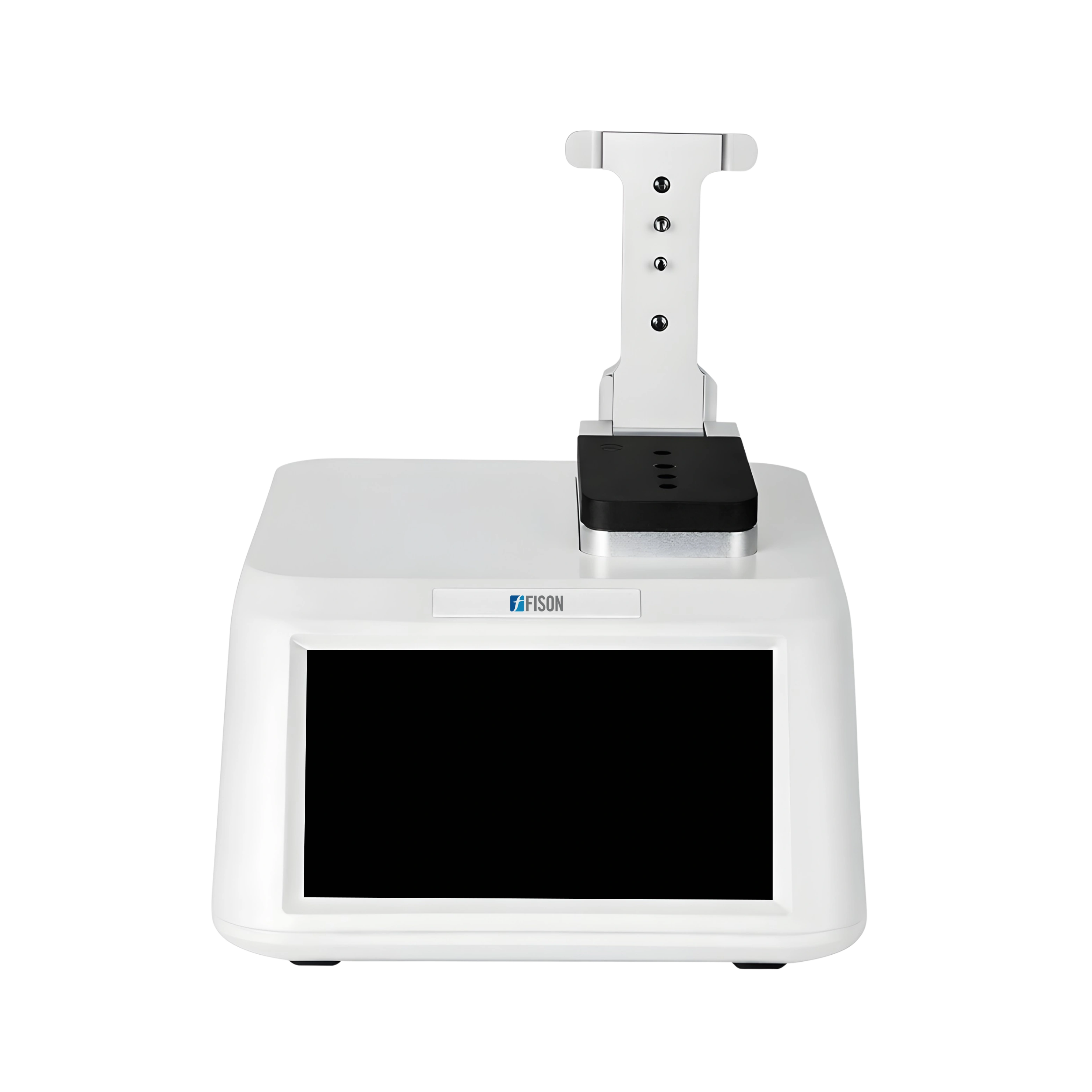

Micro Spectrophotometer FM-MS-A100 Catalog

Description :

Micro Spectrophotometer FM-MS-A100 covers 180 to 910 nm with precise OD at 600nm, ideal for nucleic acid, protein quantification, and bacterial growth monitoring. It enables direct, dilution-free measurements with clear, easy-to-read test result displays. This provides reliable, fast data output via USB for efficient analysis. Our spectrophotometer requires no computer for measurement or data storage.

Features:

---

Specifications:

---

Wavelength	180 to 910 nm; Cuvette: 600±8 nm
Wavelength Accuracy	±1 nm
Sample Volume	0.5 to 2.0 μl
Absorbance Range (equaled 10mm)	0.02 to 300A; Cuvette (OD600): 0 to 4A
Absorbance Accuracy	±1％ (7.332 Abs at 260nm)
Absorbance Precision	0.002 Abs
Nucleic Acid Range	2 to 15000 ng/μl (ds DNA)
Protein Detection Range	BSA: 400 mg/ml; IgG: 290 mg/ml
Sample Pedestal	304 Stainless steel and Quartz fiber
Light Source	Xenon flash lamp
Measurement Time	< 6 s
Data Export	USB
Path Length	0.05 mm, 0.2 mm, 1.0 mm
Detector	2048-element linear silicon CMOS array
Spectral Resolution	≤ 1.5 nm
Operating System	Android
Power	48W
Standby Power	5W
Power Adapter	12V 4A
Dimension (W×D×H)	270×210×196 mm
Weight	3.5 kg

Applications: Micro Spectrophotometer FM-MS-A100 is used for precise nucleic acid, protein, and bacterial analysis. It is widely applied in research laboratories, clinical diagnostics, and industrial quality control.
