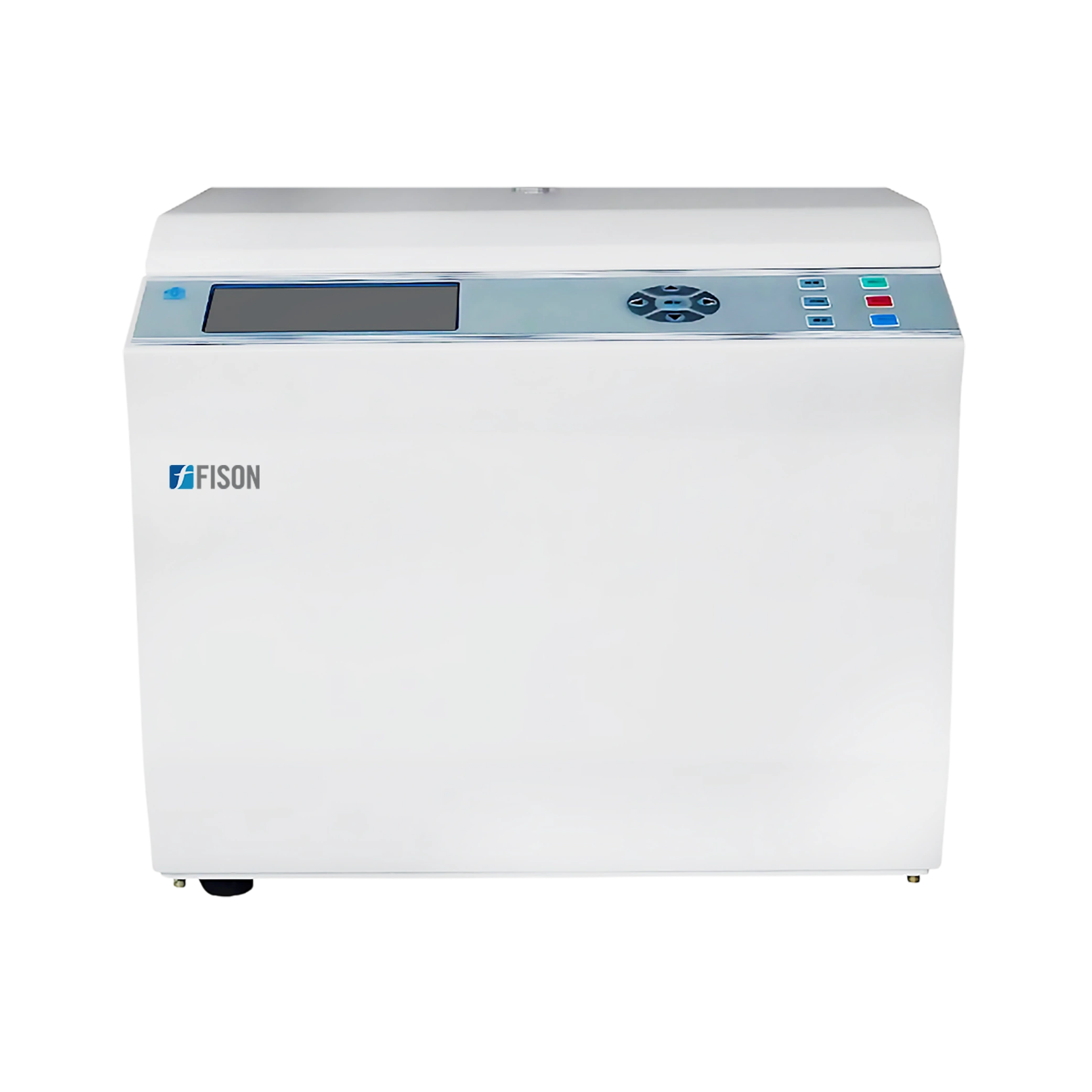

Low Speed Centrifuge FM-LSC-A201 Catalog
Overview
Low Speed Centrifuge FM-LSC-A201 is a table type of construction maximum speed of 4200 rpm and centrifugal force of 3155 ×g. Driven by AC frequency conversion motor for high speed governing system. Features swing rotor with maximum capacity of 4 ml × 12 vacuum blood tubes. It has microprocessor controlled technology with digital display to set parameters for centrifugal time, rotational speed and centrifugal force. It is indispensable equipment used in blood transfusion departments and blood banks.
Specifications :
| Maximum speed | 4200 rpm |
| Maximum RCF | 3155 × g |
| Rotor capacity | 4 ml × 12, 48 vacuum blood tube |
| Rotor type | Swing bucket rotor |
| Rotor material | Aluminium sleeves |
| Body construction | Stainless steel centrifugal chamber |
| Temperature increment | ≤ 10℃ (running 20 minutes) |
| Speed accuracy | ± 10 rpm |
| Noise level | ≤ 55 dB |
| Centrifugation time | 1s to 99 min continuous /timed centrifugation |
| Power supply | AC 220 V/50 Hz, 10 A |
| Weight | 65 kg |
| Dimension (L×W×H) | 433 × 580 × 402 |
Features :
- Microcomputer control with LED digital display and driven by AC frequency conversion motor
- Spin speed: 4200 rpm with 3155 ×g RCF
- Equipped with swing rotor including 12 of aluminum sleeves for 4 ml vacuum blood tubes
- Offers 9 programs for acceleration / deceleration rate selection and 12 programs for self-defined work modes
- Synchronous display of rotation speed and centrifugal force
- Two optional work setting type: run start and interval run time settings can be switched
- Parameters modifying function in middle of run without stopping machine
- All-steel construction with stainless steel centrifugal chamber, electric safety door lock and imbalance protection
- Automatic balancing with the need of trimming
- Inching function with brief centrifuging
Applications :
