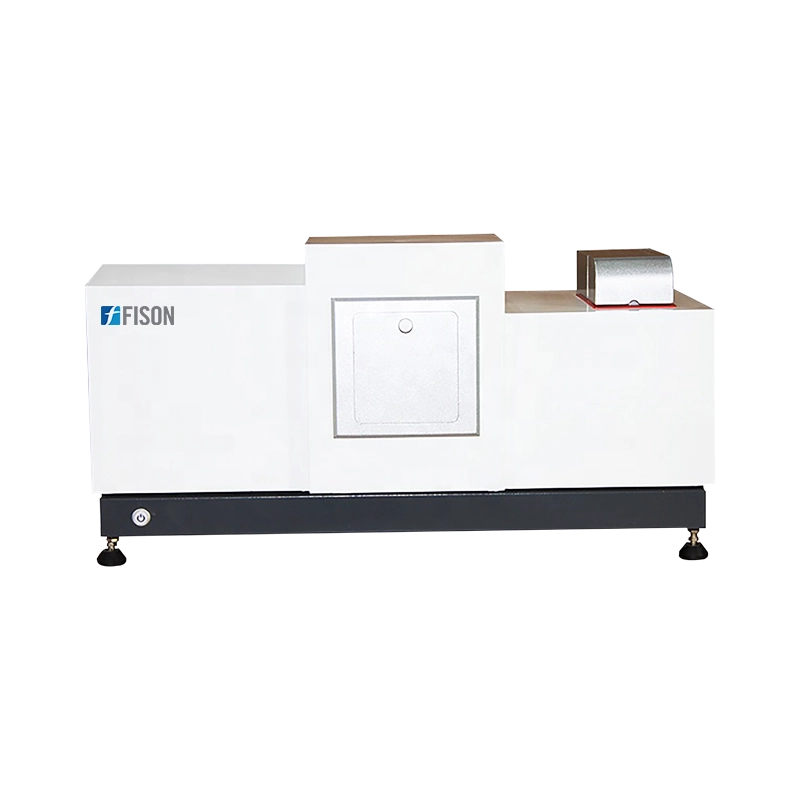

Laser Particle Size Analyzer FM-LPA-A301 Catalog

Description :

Laser Particle Size Analyzer FM-LPA-A301 is an automated wet laser particle size analyzer, adopted with Mie scattering principle and converging Fourier transform optical path, designed as per ISO 13320-1:1999 standard configurations. With 86 channels and measurement range of 0.1 to 800 µm, features fully automatic testing with ultrasonic anti dry burning function and stepper motor, precision guide rail, precision controller and software system. Equipped with fully sealed fiber semiconductor laser, laser power monitoring and automatic adjustment, has mechanical center and optical center technology. Dust-proof and shockproof design with unique self-cleaning system of circulating pipeline, micro-circulation system, bubble-free design and optimized drainage system, has anti-reflective film coated sample window with sample pool of 190 to 600 ml capacity and fogging point measurement system, offers < 1 min of test speed with mis-operation protection.

Features:

---

Specifications:

---

Dispersion Type	Wet
Measurement Range	0.1 to 800 µm
Channel number	86
Accuracy Error	<1% (Average Particle Size of National Standard Samples)
Repeatability Error	0.5% (Average Particle Size of National Standard Samples)
Light Source	Imported fiber output high power semiconductor laser λ = 635 nm P > 10 mW Service life > 30000 hours
Dispersion Ultrasonic Frequency	40 kHz
Dispersion Ultrasonic Power	100 W
Dispersion Ultrasonic Time	Adjustable
Dispersion Stir Revolution Speed	100 to 3950 rpm (adjustable)
Dispersion Circulation	Rated Flow: 0 to 10 L/min Rated Power: 25 W
Sample Pool	Self-designed boiling sample cell
Sample Pool Capacity	190 to 600 ml
Optical Path Alignment	Fully automatic
Optical Path Precision	0.2 µm
Operation mode	1 button automatic software operation mode
Standard	ISO 13320-1:2009
Test Speed	<1 min/time
Software Running	WIN 7/ WIN 10
Mis-operation protection	Yes
Design	Dust proof and shock proof design
Dimension (L×W×H)	840×450×430 mm
Packaging Dimension (L×W×H)	980×610×590 mm
Net Weight	30 kg
Gross Weight	55 kg

Applications: Laser Particle Size Analyzer is used to determine the size and distribution of particles across cement, ceramics, medicines, paints, chemicals, catalyst, fuel, explosives, dyes, coal etc.

Accessories Optional: Strong anti-corrosion design Microinjection
