Horizontal Autoclave FM-HA-A202 Catalog

Overview

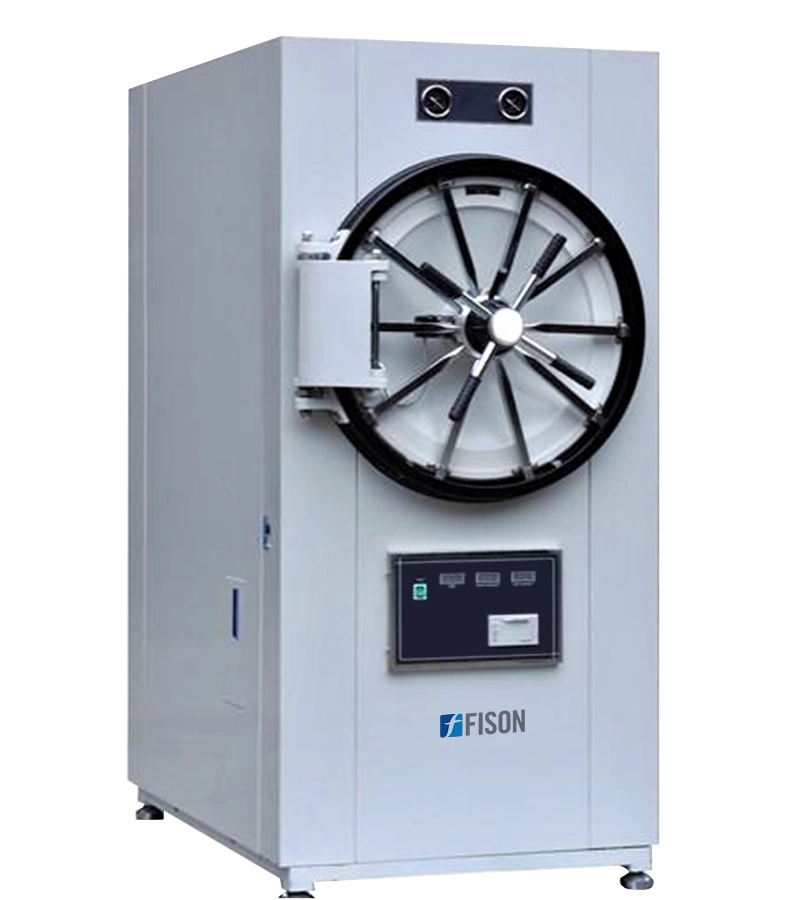

Horizontal Autoclave FM-HA-A202 is a microprocessor controlled automatic single door autoclave with a capacity of 280 L. The complete leak proof chamber provides efficient sterilization process resulting in destruction of all living organisms due to high pressure of 0.22 MPa and 134°C temperature. Unit is constructed with corrosion resistant stainless steel and equipped with many advanced safety features that enables users to achieve fast, reliable and reproducible sterilization.

Specifications :

Features :

• Microprocessor based control with LED display
• Ergonomic rectangular cylindrical design with 304 grade stainless steel construction
• Single door with radial locking arrangement
• Equipped with 1 standard perforated tray for sample loading
• Automatic door opening mechanism when inner pressure drops to 0.027 MPa
• Sterilization cycle is controlled by single point multi-port valve fitted at front top
• Moisture trap fitted in chamber discharge line to absorb condensate automatically
• Fitted with pressure gauge, safety valve and steam release valve
• Equipped with pressure control safety valve which automatically unlocks when pressure rises over 0.24 MPa
• Fitted with Dial thermometer to indicate the inner chamber temperature
