Horizontal Autoclave FM-HA-A103 Catalog

Description :

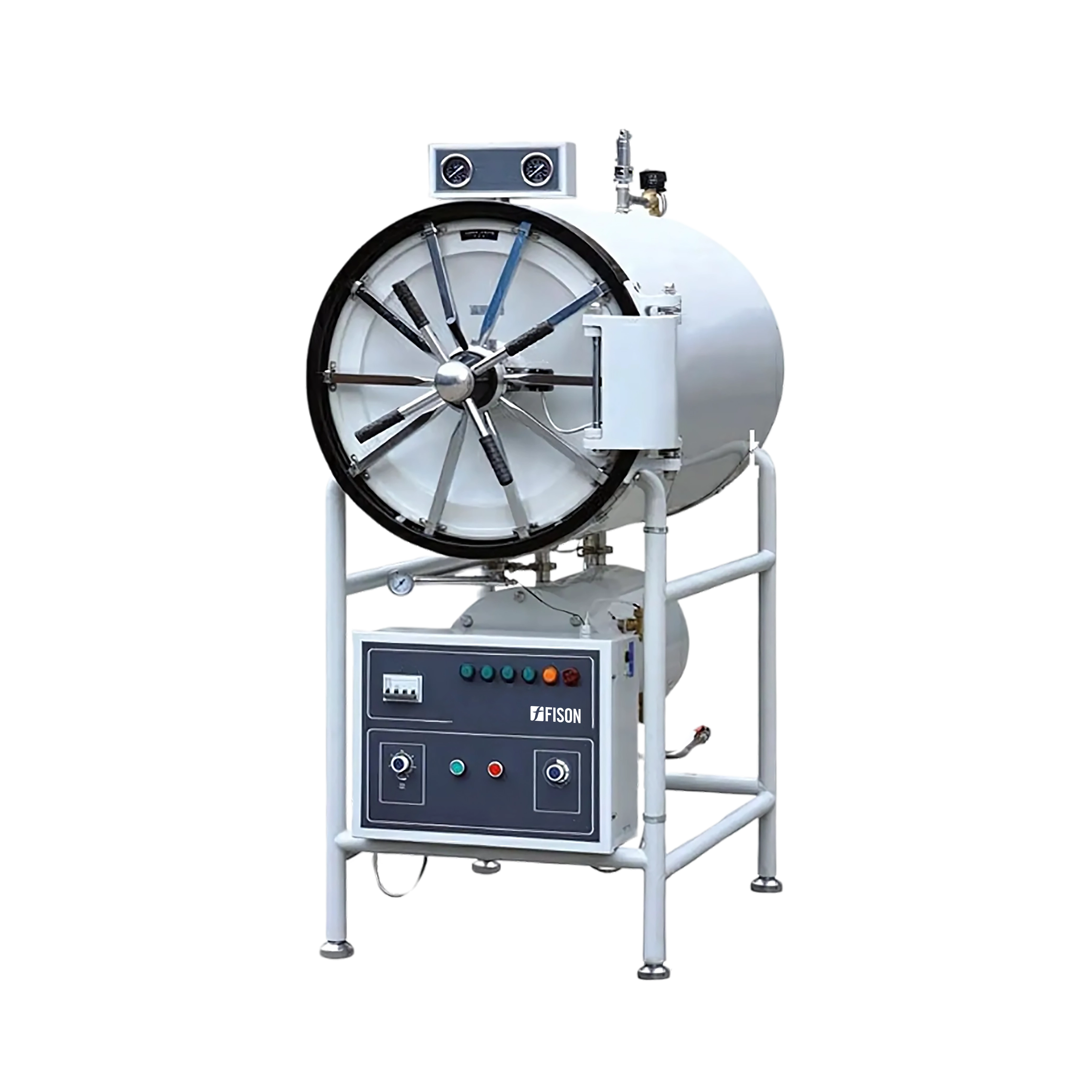

Horizontal Autoclave FM-HA-A103 is a cylindrical oriented autoclave with internal tank capacity of 400 L. Fully automatic computer controlled process with 134°C sterilizing temperature and 0.22 MPa hydraulic pressure. Equipped with vacuum breaker, water level indicator, steam trap and automatic pressure control switch for safe operation. Device comes with high grade durable stainless steel construction and multiport valve for controlling sterilization cycle effectively.

Features:

---

Specifications:

---

Sterilizing chamber  volume	400 L
Inner tank dimension	700×1100 mm
Design	Cylindrical orientation
Working pressure	0.22 MPa
Working  temperature	134℃
Adjustment of temperature	105℃ to 134℃
Chamber construction	Corrosion resistant 304 grade stainless steel
Chamber tray	1 perforated stainless steel tray
Timer range	0 to 60 min
Control Precision: Temperature	≤ ±1℃
Maximum power consumption	18 kW
Power supply	380 V/50 Hz
Dimension	1430×880×1830 mm
Packaging dimension	1800×1050×2100 mm
Net weight	470 kg
Gross weight	580 kg

Applications: Horizontal Autoclaves is ideal tool for Laboratories, Hospitals, Nursing Homes, Agricultural R&D; labs etc., Pharmaceutical, Food & Beverage Industries and Institutions. It is suitable for sterilizing hospital dressings, linen, rubber, plastic goods, surgical instruments, glassware and utensils.
