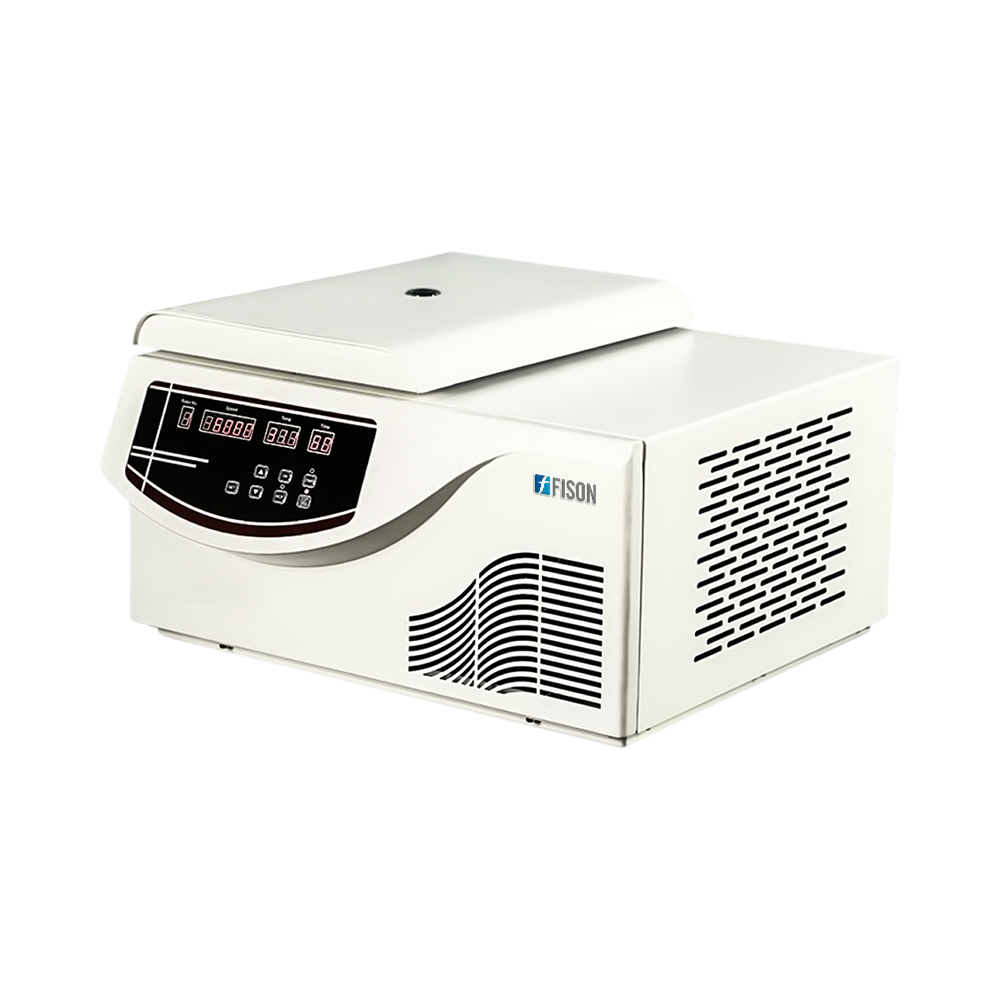

High Speed Refrigerated Centrifuge FM-HRC-A100 Catalog
Overview
High Speed Refrigerated Centrifuge FM-HRC-A100 is a microcomputer controlled system with 18000 rpm maximum speed and 23846 × g maximum centrifugal force. Features angle rotors with 24 × 0.5 ml maximum capacity. Equipped with brushless frequency motor offers smooth working of the unit. The digital LCD display offers convenient reading of test data, stores various parameter data information. Acceleration and deceleration of 9 kinds and 10 options for self-defined work mode selection.
Specifications :
| Maximum speed | 18000 rpm |
| Maximum RCF | 23846 × g |
| Maximum capacity | 24 × 0.5 ml |
| Speed accuracy | ± 100 rpm |
| Temperature range | -20°C to 40°C |
| Temperature accuracy | ± 2°C |
| Time range | 1 min to 99 h 99 m 99 s |
| Construction | Stainless steel centrifuge chamber |
| Noise | ≤ 55 dB |
| Power | 1040 W |
| Power supply | AC 220 V 50 Hz |
| Dimension (L × W × H) | 670 × 670 × 460 mm |
| Net weight | 65 kg |
| Gross Weight | 85 kg |
Features :
- Microcomputer control with LCD display
- High efficiency refrigeration compressor
- AC frequency conversion motor drive
- Maximum spin speed 23000 rpm with 33097 × g RCF
- Automatic balancing without need of trimming
- Acceleration and deceleration of 9 kinds
- Work mode selection with 10 options
- Mutual setting of rotating speed / centrifugal force and double synchronous display screen
- Automatic identification of rotor
- Stainless steel centrifugation chamber
- Parameter changes adjustable any time without disturbing centrifugation process
- Equipped with air exhaust temperature system
- Electric safety door locks for protection
Applications :
Optional Rotor Selection :
| Rotor Name | Max speed (rpm) | Max capacity (ml) | Max RCF (g) |
| Angle rotor 1 | 18000 rpm | 24 × 0.2 ml | 18824 × g |
| Angle rotor 2 | 18000 rpm | 24 × 0.5 ml | 23846 × g |
| Angle rotor 3 | 18000 rpm | 12 × 0.5 ml | 16300 × g |
| Angle rotor 4 | 18000 rpm | 12 × 1.5 / 2.2 ml | 23198 × g |
| Angle rotor 5 | 14000 rpm | 24 × 1.5 / 2.2 ml | 17465 × g |
| Angle rotor 6 | 16000 rpm | 12 × 5 ml | 17459 × g |
| Angle rotor 7 | 14000 rpm | 12 × 10 ml | 18188 × g |
| Angle rotor 8 | 14000 rpm | 12 × 7 ml | 16327 × g |
| Angle rotor 9 | 12000 rpm | 8 × 15 ml | 14107 × g |
| Angle rotor 10 | 16099 rpm | 6 × 50 ml | 16099 × g |
| Angle rotor 11 | 14000 rpm | 32 × 0.2 ml | 13367 × g |
