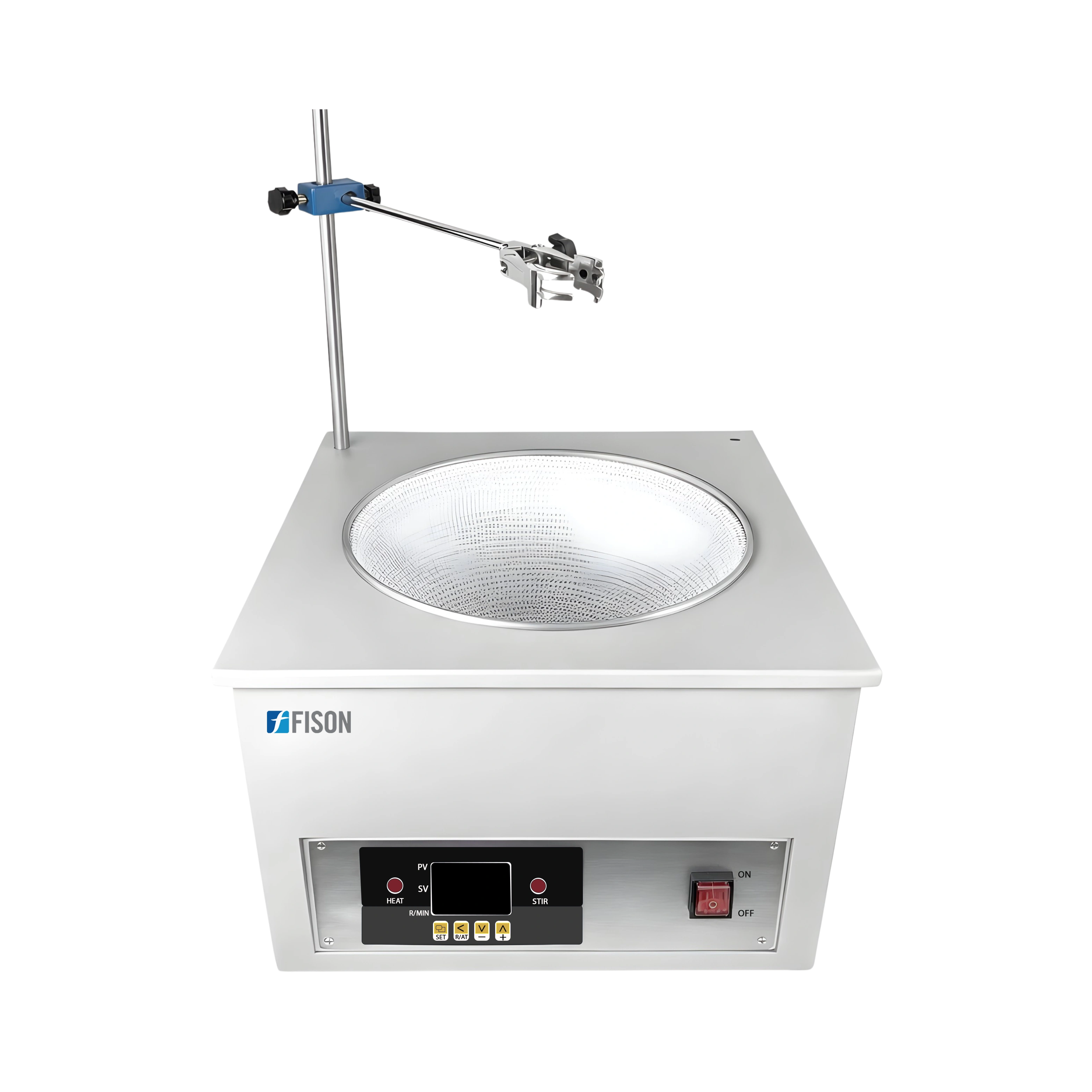

Heating Mantle with Magnetic Stirrer FM-DHM-B100 Catalog

Description :

Heating Mantle with Magnetic Stirrer FM-DHM-B100 is built to accommodate round bottom flasks with a capacity of 10 liters. It ensures precise temperature regulation from ambient conditions up to 380°C, with an accuracy of ±1°C. This mantle features a magnetic stirrer capable of variable speed control up to 1800 rpm. Our heating mantle includes a durable, anti-corrosive steel housing with a safe-to-touch exterior finish.

Features:

---

Specifications:

---

Capacity	10 L
Temperature control	PID controlled system, inner and outer thermocouple
Temperature drift	≤ 0.01% FS /°C (typical 50 PPM /°C)
Temperature response time	≤ 0.3 sec
Thermocouple probe type	K type
Temperature range	Ambient to 380℃
Temperature accuracy	± 1°C
Maximum temperature resistance	450°C
Ambient temperature	0 to 50°C
Ambient humidity	≤ 85% RH
Heat material	Alkali-free glass fiber
Shell material	Superfine metal, anti-aging, anti-corrosion, blue color or white color
Thermal Insulation	Glass fiber
Stir speed range	100 to 1800 rpm
Stir speed display	± 1 rpm
Stir motor	40 W, DC 20. Brushless motor
Stir Response time	≤ 1.5 sec
Electromagnetic compatibility (EMC)	± 4 kV / 5 kHz according to IEC61000-4-4; 4 kV according to IEC61000-4-5
Working environment	Without corrosion and strong electric radiation
Working time	More than 8 hours, Continuous
Heating Power	2100 W
Machine power	2140 W
Power Supply	AC 220 V, 50 Hz or AC 240V, 60 Hz
Upper Diameter	279 mm
Dimensions (W × D × H)	440 x 510 x 300 mm
Packaging dimensions (W × D × H)	550 x 550 x 360 mm
Net weight	18.1 kg
Gross weight	21 kg

Applications: The Heating Mantle with Magnetic Stirrer is widely used in research, pharmaceuticals, and industrial applications where consistent and reliable heating and stirring are required for chemical solutions facilitating precise temperature control and mixing.

Accessories: Stainless steel removable holder (L x D: 500 x 10 mm) Clamp with screw Inner Thermocouple 4 -spin probe Outer PT-100 Thermocouple 4-spins probe with 500 mm length Four-finger extension clamp with 400 mm length White PTFE coated magnetic stir bar (L x D: 40 x 15 mm)
