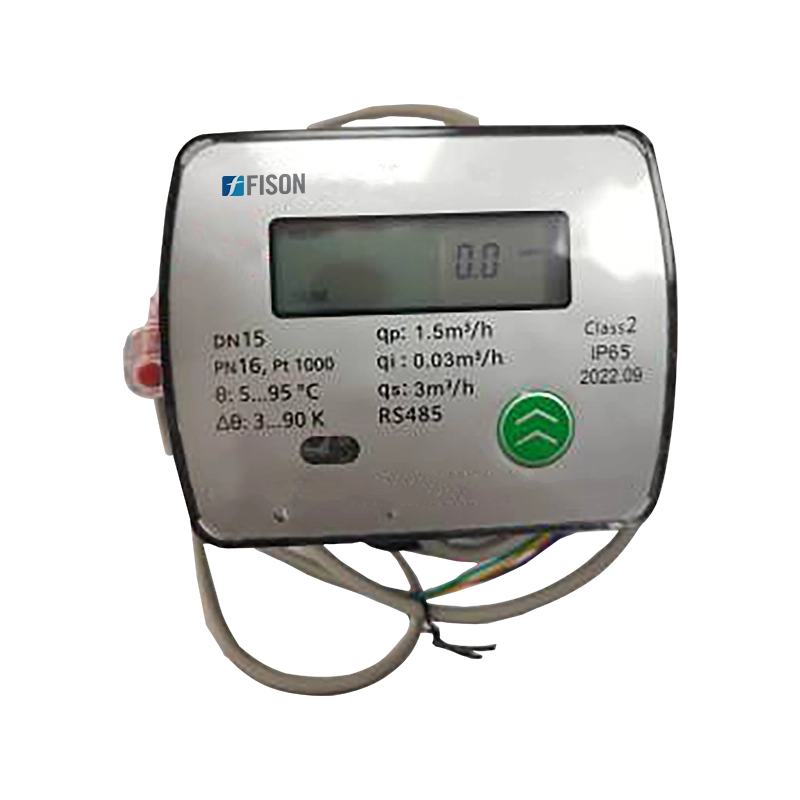

Heat Flow Calorimeter FM-HFC-A102 Catalog
Overview
Heat Flow Calorimeter FM-HFC-A102 is a revolutionary heat meter with a static flow sensor based on ultrasonic technology. It is a precise tool for measuring heat consumption in water-based heating systems. The flow sensor can measure flows as small as 0.1mm. Includes flexible communication options M-BUS and RS-485. Equipped with a heat calculator that calculates heat based on flow rate and temperature change.
Specifications :
| Diameter | DN25 |
| Min. Flow qmin | 0.07 m³/h |
| Quantity of Flow (qp) | 3.5 m³/h |
| Max Flow qmax | 7 m³/h |
| Length | 160mm |
| Connection | Threaded connection |
| Pressure Loss | ≤0.02MPa |
| Maximum Working Pressure (MWP) | 1.6MPa |
| Flow Measuring Range | 0.1 |
| Temperature Sensor | 1.5m standard a pair of PT1000 Temperature Sensors （cable length could be changed） |
| Remote Transmission | M-bus, RS485, LORA, LORAWAN, NB-IOT |
| Power Supply | High Power Lithium battery |
| Environmental Class | Class B |
| Temperature Range | 5 to 95℃ |
| Temperature Difference | 3 to 90 K |
| Installation Way | Inflow or Return flow（Default is Inflow, for return flow need to indicate when ordering） |
| Installation Position | Horizontal / Vertical |
| Permanence | Service cycle≥6 years |
| Display | 8-bit LCD |
| Dimensions | 17 × 12 × 11.5 cm |
| Weight | 1 kg |
Features :
- Small size, lightweight, and easily handled
- Flexible mounting options for both horizontal and vertical pipes
- Reliable measuring device unaffected by working time
- Resistant to magnetic field interference up to 100 ka/m
- Measurement and remote transmission capabilities are unaffected
- Includes non-volatile memory to store flow rate and time data during a power outage
- Can store up to 18 months' record
- Dual-purpose heat and cold energy meter that can be installed in either the return or forward flow line
- Provided clever design that can track energy and flow volume
