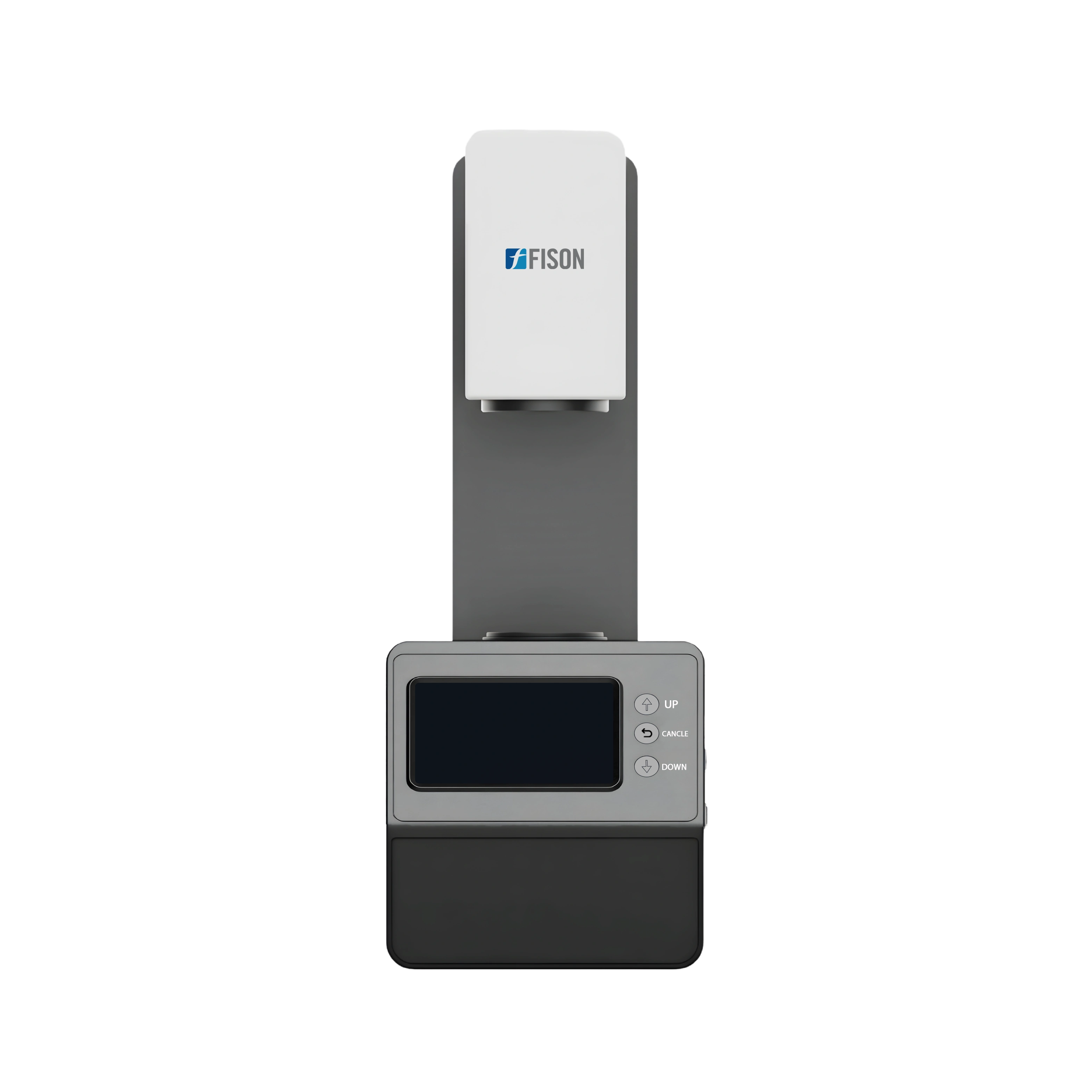

Haze Meter FM-HM-A100 Catalog
Overview
Haze Meter FM-HM-A100 is used for haze and transmittance measurement. With open measurement area, there is no limit on sample size, performs both vertical and horizontal measurements. Different light source like A, C, D65 are used to measure haze and transmittance of the test sample. Designed in accordance with ASTM, ISO international standards to meet the customers’ needs.
Specifications :
| Wavelength | 400 to 700 nm |
| Standards | ASTM D1003/D1044 & ISO13468/ISO14782 |
| Wavelength interval | 10 nm |
| Light source | CIE-A, CIE-C, CIE-D65 |
| Parameters | HAZE, Transmittance (T) |
| Spectral response | CIE Luminosity function Y/V (λ) |
| Geometry | 0/d |
| Measurement area/sample port | 15 mm |
| Measurement range | 0 to 100 % |
| Haze resolution | 0.01 |
| Haze responsibility | ≤ 0.1 |
| Sample size | Thickness ≤ 150 mm |
| Display | 5 inch TFT LCD screen |
| Memory | 20000 value |
| Interface | USB |
| Working temperature | 10 to 40°C |
| Storage temperature | 0 to 50°C |
| Power supply | 110-240V, 50-60Hz |
| Dimension (L×W×H) | 310 × 215 × 540 mm |
| Packaging dimension (L×W×H) | 380 × 270 × 610 mm |
| Weight | 7 kg |
Features :
- 5 inch TFT LCD screen
- Open measurement area, no limit on sample size
- Three types of light source A, C, D65
- Equipped with software for haze and transmittance measurement
- 03 seconds measurement time
- No need of warm up
- Small size, light weight, easy to carry
- Confirms to ASTM & ISO haze measurement standards
- LED light source with 10 years lifetime
Applications :
Accessories :
Power Adaptor
USB Cable
Manual, Software U disk
Dust Cover
Accessories Optional :
Measurement Fixture
Haze Standard Film
5 mm Aperture
7 mm Aperture
10 mm Aperture
