Fluorometer FM-FLM-A101 Catalog

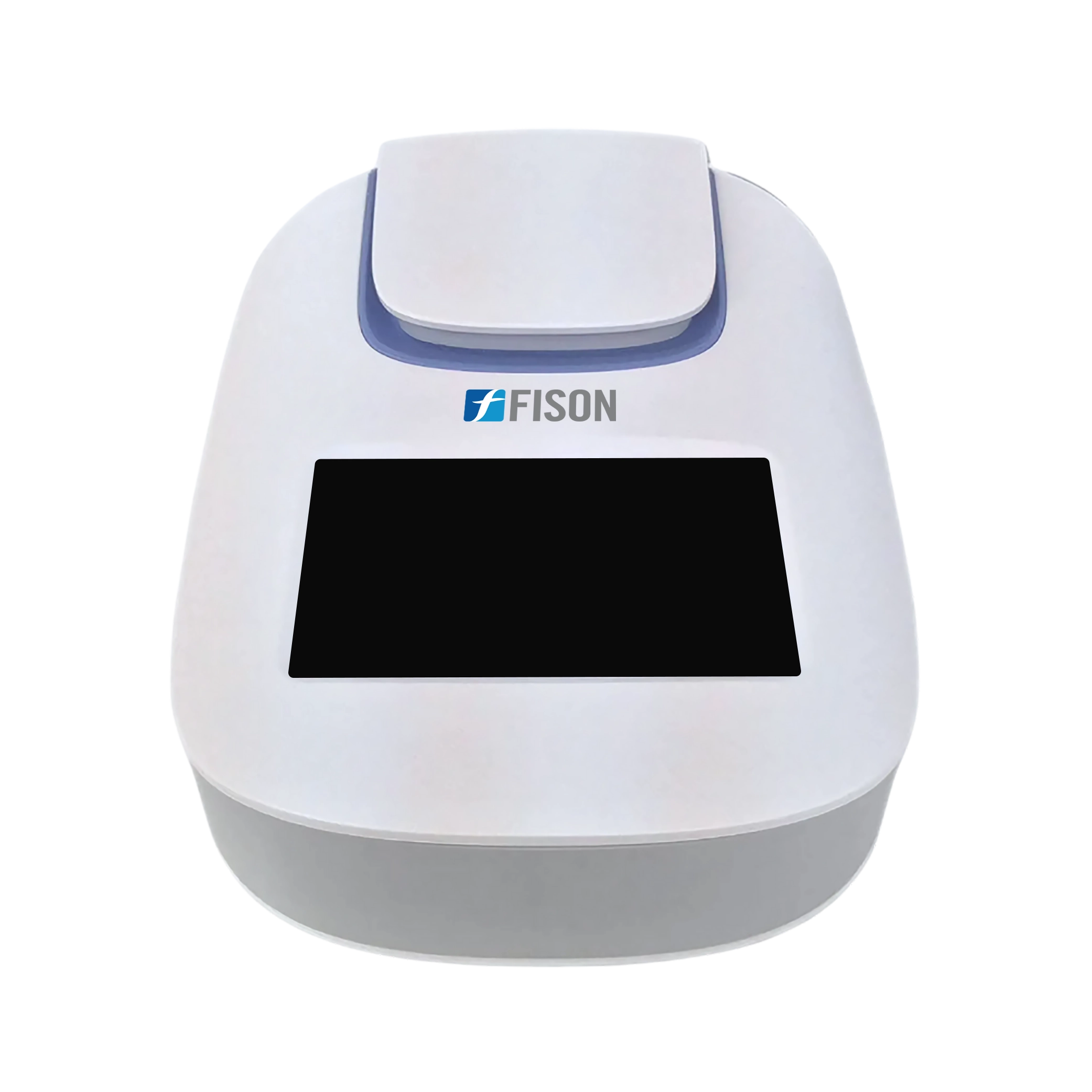

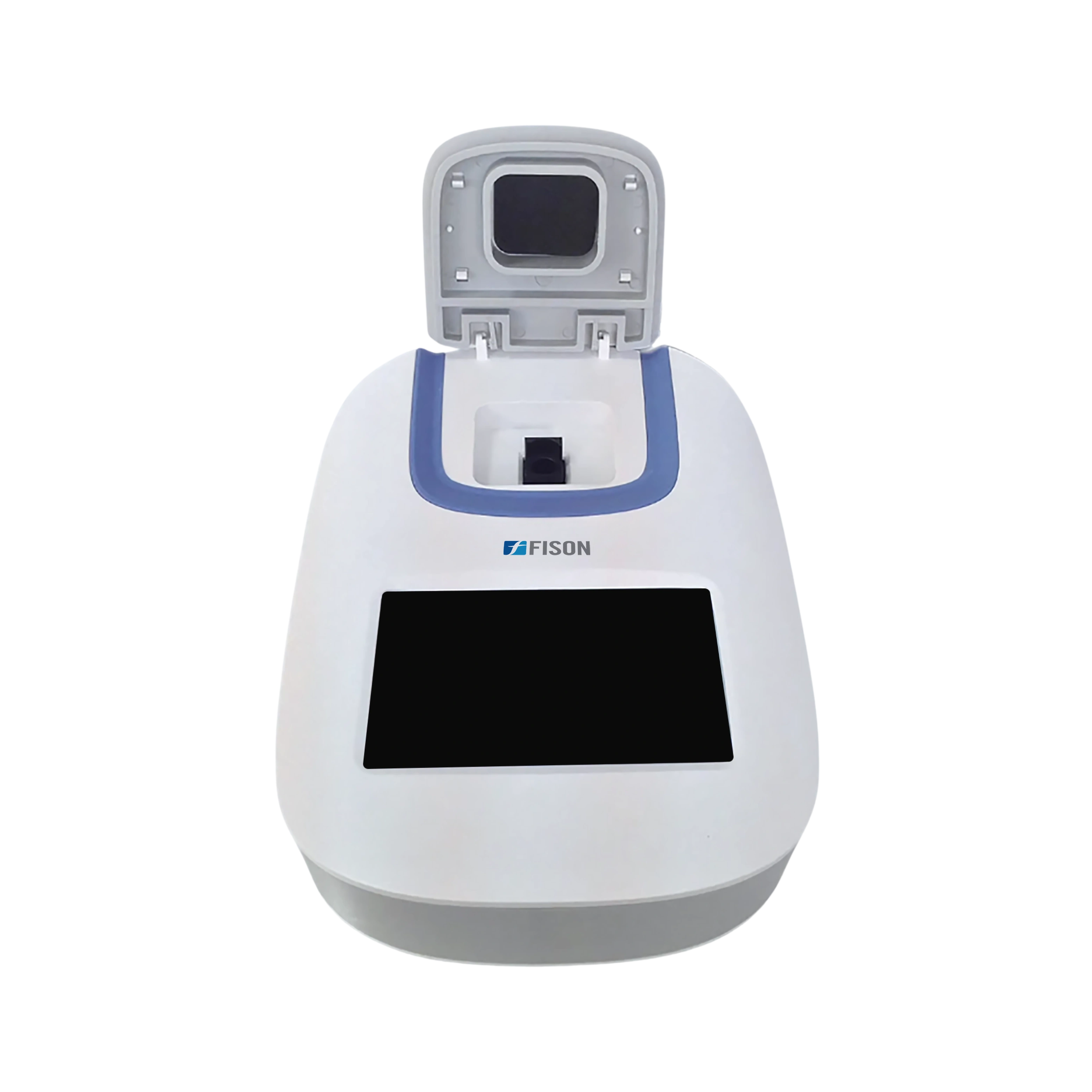

Fluorometer FM-FLM-A101

Fluorometer FM-FLM-A101

www.fison.com | info@fison.com

Overview

Fluorometer FM-FLM-A101 is the next generation of benchtop dual-channel Fluorometer, features 460 ± 20 nm and 625 ± 20 nm excitation filter and measures dsDNA concentration with sensitivity of 5 ng/ul. It uses blue and red channel fluorescence to measure fluorescence intensity of fluorescent reagent that combines with target molecule to read concentration of sample. Designed to accurately detect high-sensitive fluorescence while quantifying DNA, RNA, and protein.

Specifications :

Dynamic range Five orders of magnitude
Linear dynamic range R > 0.995
Processing time ≤3 seconds/sample
Light sources Blue LED Red LED
Excitation filters Blue 460±20 nm Red 625±20 nm
Emission filters Blue 525 to 570 nm Red 670 to 725 nm
Detector Photodiode: measurement capability from 300 to 1000 nm
Repeatability <1.5%
Stability <1.5%
Sensitivity dsDNA: 0.5 ng/ml
Dimension (W×D×H) 194 × 155 × 72.5 mm
weight 0.4 kg

Features :

  • Simple operation with 4.3-inch touch screen, small and easy to use
  • Accurately quantifies DNA, RNA, and protein in <3 seconds per sample
  • High sensitivity with lowest DNA detection limit of 0.5 ng/ul
  • Two optical channels equipped with two fluorescence channels for macromolecule quantitation in one detection
  • Blue and red dual fluorescence channels
  • Linear dynamic range with five orders of magnitude
  • It can save at most 1,000 data and output data by USB port

Applications :

Ideal for processing scarce and difficult samples, for low quantity of DNA, RNA, or protein after extraction, also, in expensive experiments: qPCR, PCR cloning, transfection, the next generation sequencing and etc. Applied for dsDNA, ssDNA, RNA quantification, GFP gene detection, Fluorescein detection, Protein detection.

Accessories :
  • Accessories no Accessories name
    1
  •
    		•  Adapter for 0
  • 5ml qPCR tube
    		•
Accessories Optional :
  • Accessories no Accessories name
    1
  •
    		•  Adapter for 0
  • 2ml qPCR tube
    		•
    2
  •
    		•  Printer
Fluoroscence Channel :
  • Blue and red channels
  • For blue fluorescence channel:
  • Light source: Blue LED
  • Excitation wavelength: 460±20 nm
  • Emission wavelength: 525 to 570 nm (45 nm)
  • For red fluorescence channel:
  • Light source: red LED
  • Excitation wavelength: 625±20 nm
  • Emission wavelength: 670 to 725 nm (55 nm)
Fison
