Fluorometer FM-FLM-A100 Catalog

Fluorometer FM-FLM-A100

Fluorometer FM-FLM-A100

www.fison.com | info@fison.com

Overview

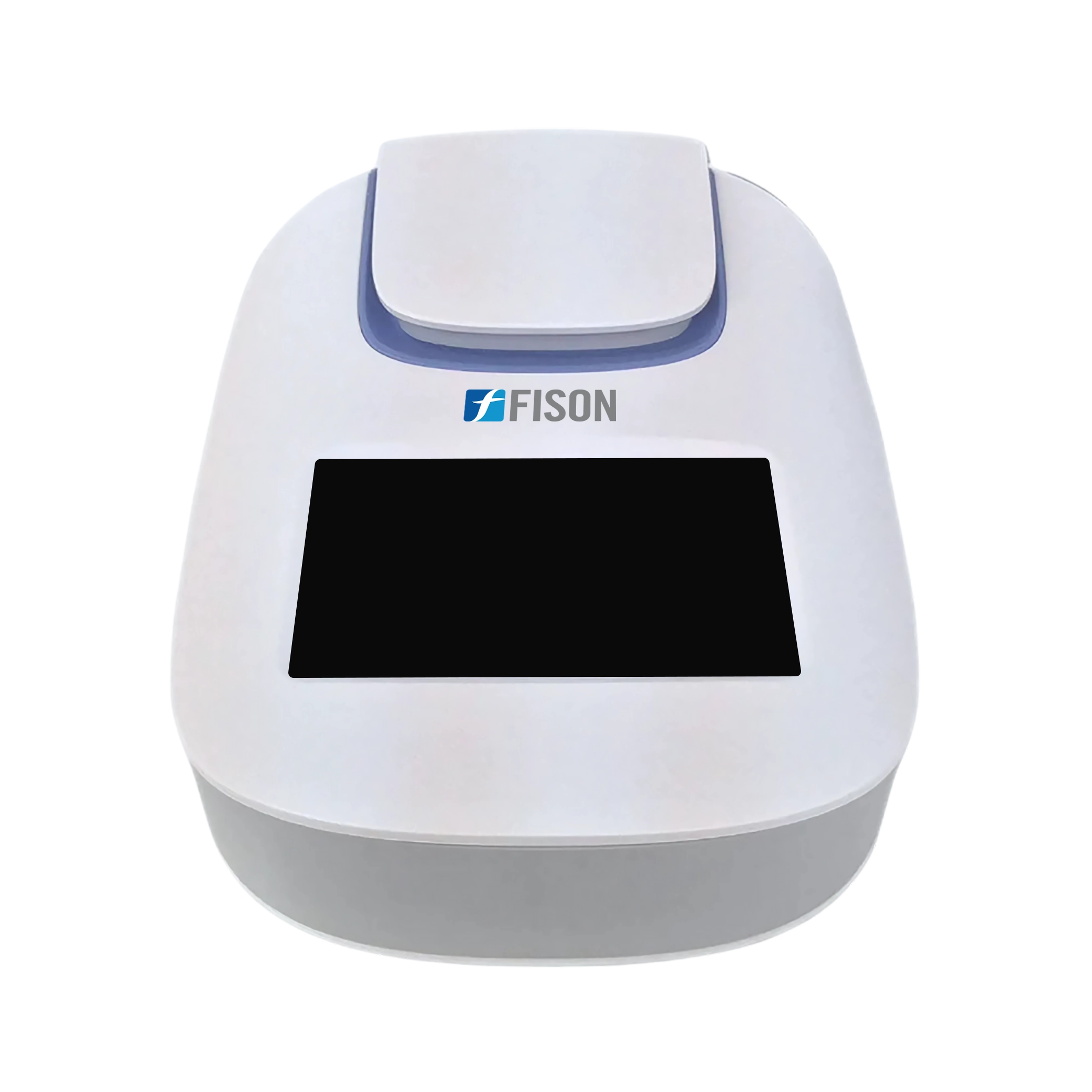

Fluorometer FM-FLM-A100 is the next generation of benchtop dual-channel Fluorometer, features 365 ± 20 nm and 460 ± 20 nm excitation filter and measures dsDNA concentration with sensitivity of 5 ng/ul. It uses UV and blue channel fluorescence to measure fluorescence intensity of fluorescent reagent that combines with target molecule to read concentration of sample. Designed to accurately detect high-sensitive fluorescence while quantifying DNA, RNA, and protein.

Specifications :

Dynamic range Five orders of magnitude
Linear dynamic range R > 0.995
Processing time ≤3 seconds/sample
Light sources UV LED
Blue LED
Excitation filters UV 365 ± 20 nm
Blue 460 ± 20 nm
Emission filters UV 420 to 480 nm
Blue 525 to 570 nm
Detector Photodiode: measurement capability from 300 to 1000 nm
Repeatability <1.5%
Stability <1.5%
Sensitivity dsDNA: 0.5 ng/ml
Dimension (W×D×H) 194 × 155 × 72.5 mm
weight 0.4 kg

Features :

  • Simple operation with 4.3-inch touch screen, small and easy to use
  • Accurately quantifies DNA, RNA, and protein in <3 seconds per sample
  • High sensitivity with lowest DNA detection limit of 0.5 ng/ul
  • Two optical channels equipped with two fluorescence channels for macromolecule quantitation in one detection
  • UV and blue dual fluorescence channels
  • Linear dynamic range with five orders of magnitude
  • It can save at most 1,000 data and output data by USB port

Applications :

Ideal for processing scarce and difficult samples, for low quantity of DNA, RNA, or protein after extraction, also, in expensive experiments: qPCR, PCR cloning, transfection, the next generation sequencing and etc. Applied for Nucleic acid quantification, Plant GUS reporter gene detection, Apoptosis detection.

Accessories :

Accessories no Accessories name
1.        Adapter for 0.5ml qPCR tube

Accessories Optional :

Accessories no Accessories name
1.        Adapter for 0.2ml qPCR tube
2.        Printer

Fluoroscence Channel :

UV and blue channels
For UV fluorescence channel:
Light Source: UV LED
Excitation Wavelength: 365 ± 20 nm
Emission wavelength: 420 to 480 nm (60nm)
For blue fluorescence channel:
Light source: Blue LED
Excitation wavelength: 460 ± 20 nm
Emission wavelength: 525 to 570 nm (45nm)
