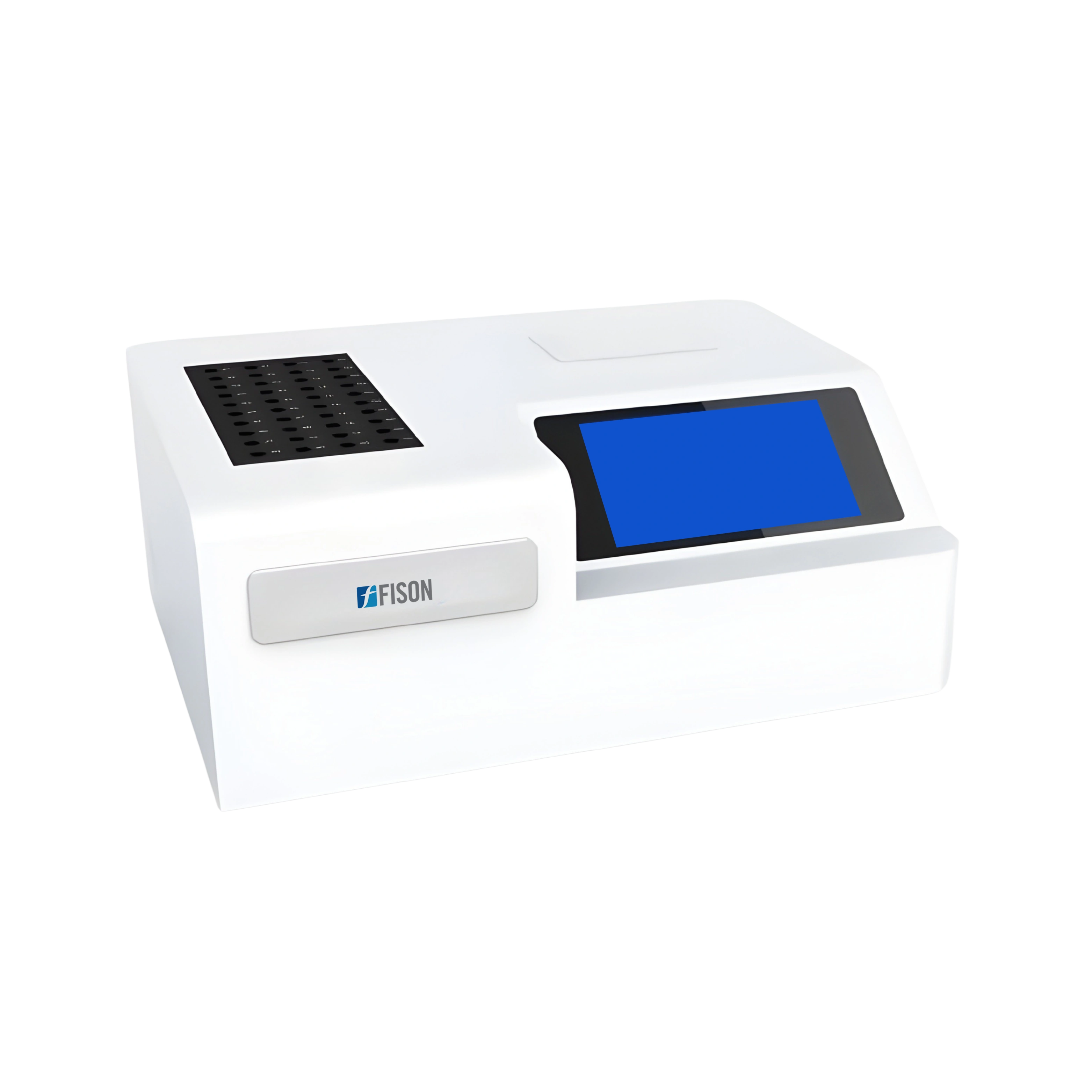

Erythrocyte Sedimentation Rate Analyzer FM-ESR-A100 Catalog

Description :

Erythrocyte Sedimentation Rate Analyzer FM-ESR-A100 can simultaneously measure 40 whole blood samples within 30 minutes. It features auto temperature compensation at 18°C ensuring measurement consistency. Employs infrared technology and improved Westergren method for analysis. Integrated with thermal printer for convenient data documentation. Our ESR Analyzer is fully automated and assists in clinical diagnosis.

Features:

---

Specifications:

---

Throughput	80 Tests / hour
Measurement Method	Infrared detection
Analysis Result	Westergren ESR value (mm/hour)
Measurement Range	0 to 120 mm/h
Blood Level Range	50 mm to 64 mm
Haematocrit (HCT) Range	0.2 to 1
Reading Accuracy	0.2 mm
Channel Error	≤ ±4 mm/h
Number Of Analysis Channels	40
Channel Consistency	0 to 10 mm/h, SD ≤ 1.5 mm/h, > 10 mm/h, CV ≤ 15%
Repeatability	0 to 10 mm/h, SD ≤ 1.5 mm/h, > 10 mm/h, CV ≤ 15%
Analysis Time	30 or 60 min
Sampling Interval	3 min
Result Accuracy	±2mm/h (ESR ≤ 30mm/h) ±3mm/h (30mm/h < ESR ≤ 80mm/h) ±5mm/h (ESR > 80mm/h)
Result Precision	CV ≤ 2%
Result Resolution	1 mm/h
Temperature Compensation	Automatically corrected to result at 18°C
Display	7-inch colour LCD touch screen
Communication Interface	RS232 serial interface
Printer	Built-in thermal printer
Power Supply	AC 220 V, 50 to 60 Hz
Dimensions (W × D × H)	360 × 300 × 180 mm
Packaging Dimensions (W × D × H)	395 × 335 × 375 mm
Net Weight	7.3 kg
Gross Weight	10 kg

Applications: Erythrocyte Sedimentation Rate Analyzer helps in screening and diagnosis of infections, inflammatory and autoimmune disorders. It is also utilized for monitoring disease progression and routine health analysis.
