Description :

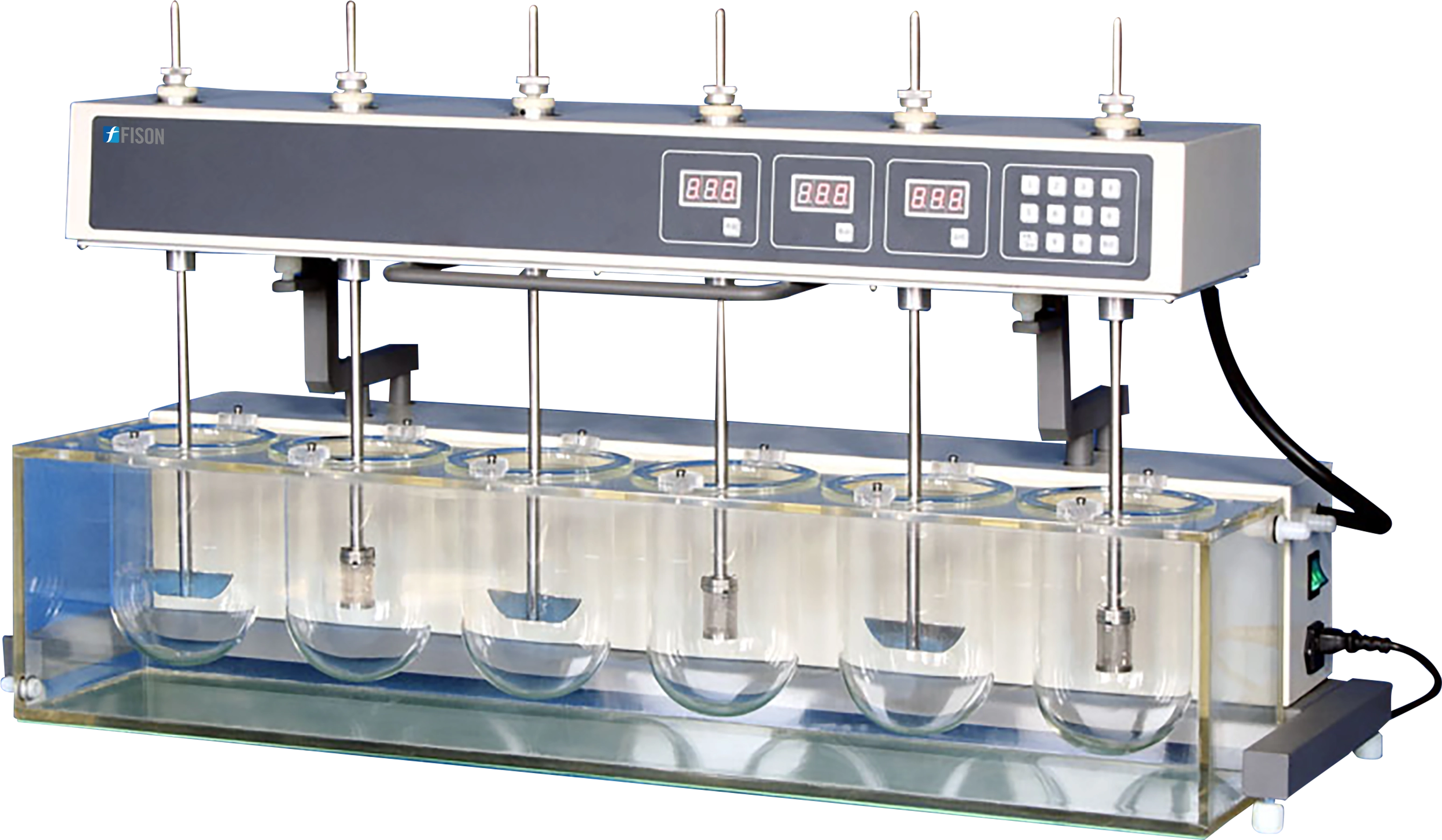

Dissolution Tester FM-DLT-A102 is a microprocessor controlled unit which consists of six vessels and six poles arranged on one line with a speed range of 20 to 200 rpm and time range of 1 to 900 min. It is equipped with a cabinet, control system, electrical system, water bath system, transmission system, sensor, and paddle components. The baskets and paddle units are made-up of SUS316L stainless steel. It features magnetism-pumped circular water current to heat the system evenly and has convenient operation with high precision control, mobilization, sensitivity and low noise. The unit has auto testing, auto diagnose and auto alarm system with LED screen to display preset and real data alternately in time.
Features:
- Six vessels and six poles arranged on one line
-
Uppermost part (head) of the tester can be twisted manually
-
Baskets and paddle units are made-up of SUS316L stainless steel
-
Magnetism-pumped circular water current heat the system evenly and bath liquid achieves an equal temperature
-
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time
-
Conveniently operated by keystroke
-
Preset and real data can be displayed alternately on the LED screen
-
High automation with auto test, auto diagnose and auto alarm
-
Time and other parameters can be preset at many points
-
Tester automatically runs to the next vessel with the automatic beep sound
Specifications:
| No of vessels |
6 |
| No of poles |
6 |
| Position of vessels and poles |
Arranged on one line |
| Head part movement |
Manually turn over |
| Speed range |
20 to 200 rpm |
| Speed accuracy |
± 2 rpm |
| Temperature range |
Ambient to +45.0°C |
| Temperature Stability |
± 0.3°C |
| Preset timing nine points |
1 to 900 min |
| Time accuracy |
± 0.3% |
| Maximum capacity of beaker |
1000 ml |
| Basket radial run-out |
± 1.0 mm |
| Paddle radial run-out |
± 0.5 mm |
| Power |
1200 W |
| Voltage |
AC 220V, 50Hz
or
AC 110V, 60 Hz |
| Dimension (W × D × H) |
960 × 320 × 480 mm |
| Packaging dimension (W × D × H) |
1230 × 510 × 590
mm |
| Net weight |
43.5 kg |
| Gross weight |
47 kg |
Applications:
Used in the pharmaceutical, animal feed, pesticides and other industries for detecting velocity and extent of pharmic dissolution from the tablet and capsule during prescriptive menstruum.
|
Accessories:
| Accessories no. |
Accessories name |
| 1 |
Transparent vessel of 185 mm height |
| 2 |
Paddle |
| 3 |
Rotating basket |
| 4 |
Rotating basket of 0.425 mm pore size |
| 5 |
Vessel cover |
| 6 |
Close unit |
| 7 |
Deep ruler |
| 8 |
Centre ruler |
| 9 |
Mercury thermometer |
| 10 |
Filter head |
| 11 |
Filter membrane |
| 12 |
Sample needle |
|
Accessories Optional:
| Accessories no. |
Accessories name |
| 1 |
Vessels Paddle 3*3 / 6*6 / 8* 8 |
| 2 |
Rotating basket unit |
| 3 |
Brown vessel of 185 mm height |
| 4 |
Network disk (Small) |
| 5 |
Network disk (Big) |
|
