Description :

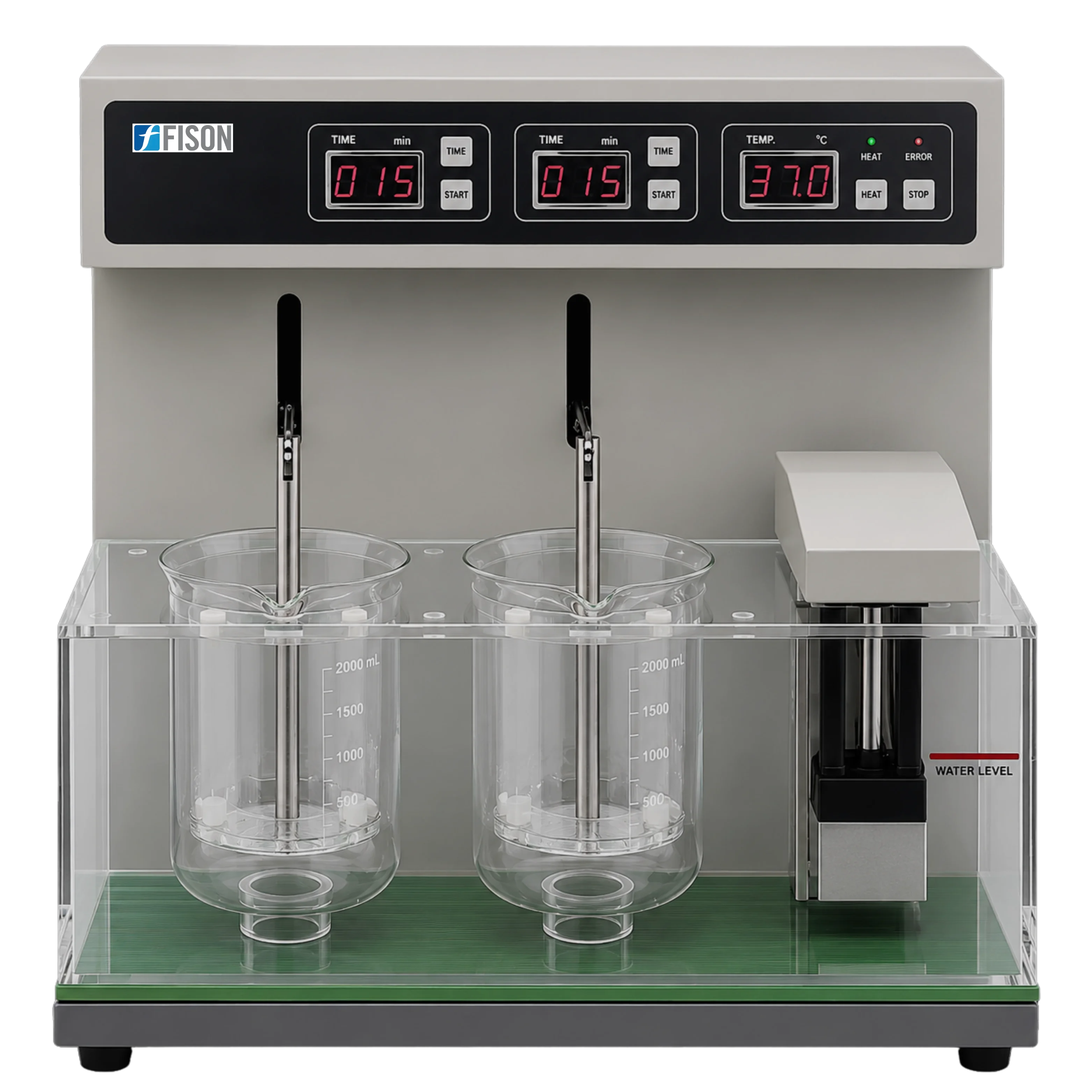

Disintegration Tester FM-DGT-A101 is a microprocessor controlled unit consisting two batches of six tubes in two basket assembly with a temperature range of ambient to 45ºC and automatic time range of 1 to 900 min. It is equipped with a cabinet, control system, electrical system, water bath system, transmission system and sensor. Also features 55 mm basket lifting amplitude, 30 to 32 times per minute nacelle back and forth frequency and 1000 ml flat bottomed beaker capacity. The unit has auto testing, auto diagnose and auto alarm system with LED screen to display preset and real data alternately in time.
Features:
- Two batches of six tubes in two basket assembly
-
Each test station is driven independently
-
Auto stop at timing point
-
Bath liquid achieves an even temperature
-
Microprocessor unit is used to automatically control the temperature, time and frequency of nacelle back and forth
-
Time parameters can be preset at any time
-
Preset and real time data can be displayed alternately in time
-
High automation with auto test, auto diagnose and auto alarm
Specifications:
| Basket assembly |
2 Pc |
| Quantity of Basket glass tube |
12 |
| Flat bottom beaker volume |
1000 ml |
| Temperature range |
Ambient to +45.0ºC |
| Temperature accuracy |
37 ± 0.5ºC |
| Nacelle back and forth frequency |
30 to 32 times / min |
| Nacelle back and forth range |
54 to 56 min |
| Automatic time range |
1 to 900 min |
| Basket lifting amplitude |
55 ± 1 mm |
| Screen to cup bottom |
25 ± 2 mm |
| Screen aperture |
0.425 or 0.71 or 1 or 2 mm |
| Continuous working time |
> 24 hour |
| Power |
600 W |
| Voltage |
AC 220V, 50Hz
or
AC 110V, 60 Hz |
| Dimension (W × D × H) |
400 × 300 × 420 mm |
| Packaging dimension (W × D × H) |
500 × 390 × 500 mm |
| Net weight |
16 kg |
| Gross weight |
18 kg |
Applications:
Used in the hospitals, medical colleges, research laboratories, pharmaceutical, pesticides and other industries for detecting disintegration of tablet and capsule (solids) in prescriptive conditions.
|
Accessories:
| Accessories no. |
Accessories name |
| 1 |
6 hole hanging basket (Mesh size: 2mm) |
|
Accessories Optional:
| Accessories no. |
Accessories name |
| 1 |
6 hole hanging basket (Mesh size: 0.425 mm, 0.71 mm, 1 mm, 2 mm) |
|
