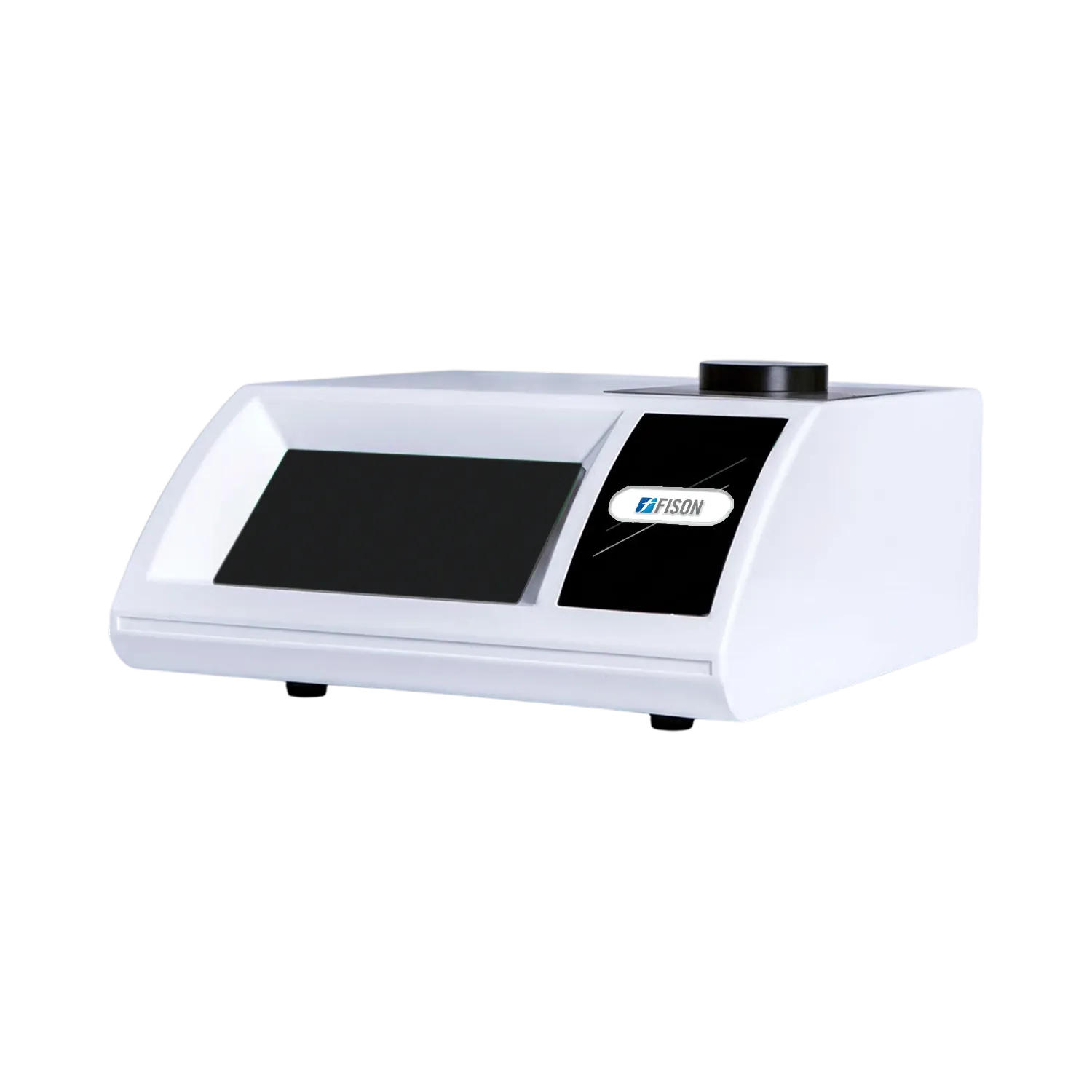

Auto Digital Refractometer FM-ADR-A101 Catalog

Description :

Auto Digital Refractometer FM-ADR-A101 is an automated, benchtop unit comprised with high resolution CCD detector, offers refractive index measuring range of 1.30000 to 1.70000 and brix measurement of 0 to 100%. With 10 to 50°C of temperature control range and high measuring resolution up to 0.0001 nD/ 0.1% Brix, features sapphire glass prism and built-in Peltier temperature control system. Designed with LED light source and 7-inch color touch screen, has LINUX operating system along with 4 GB of data storage capacity. With interface communication via RS232, USB, SD card, U-disk, internet and Wi-Fi, this refractometer also supports compliance with FDA 21 CFR part 11.

Features:

---

Specifications:

---

Measuring range	1.30000 to 1.70000 nD
Brix range	0 to 100%
Temperature measure range	0 to 100°C
Temperature control range	10 to 50°C
Temperature accuracy	± 0.1°C
Measured value error	± 0.0002 nD
Measured value resolution	0.0001 nD
Brix error	± 0.1%
Brix resolution	0.001
Detector	High resolution CCD detector
Measuring prism	Sapphire glass
Temperature control system	Built-in Peltier temperature control system
Display	7-inch color touch screen
Light source	LED light source
Operating system	LINUX
Data storage	4 GB
Interface	RS232, USB, SD card, U-disk, internet and Wi-Fi
Power supply	110 to 240 V (12 V, 10 A)
Power	45 W
Dimension (W×D×H)	365×300×150 mm
Net Weight	8 kg
Packaging dimension (W×D×H)	500×420×330 mm
Gross weight	10 kg

Applications: Digital refractometer is used for rapid and accurate determination of the index of refraction of liquid samples, and to measure fluid concentrations, such as blood protein concentration, sugar content, and salinity across oil, pharmaceutical, paint, food, chemical, sugar, and petroleum industries etc.
